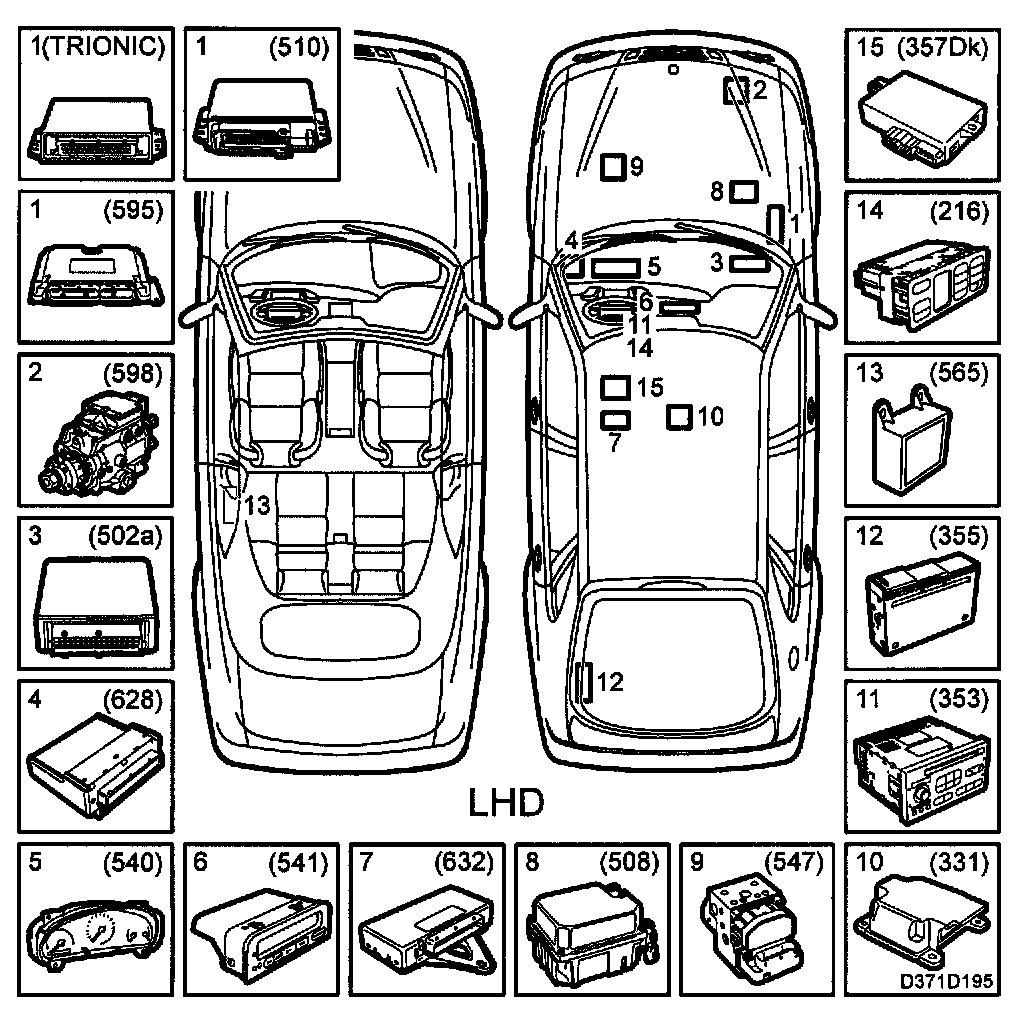

Control Modules

1 Engine management system
The control modules for the various engine management systems are located on a console in the cabin on the RH side beneath the RH A-pillar.

2 Diesel pump
The electronically controlled diesel pump is mounted on the engine.

3 TCM
The TCM control module is located behind the glove box on the scuttle.

4 DICE
The DICE control module is located on top of the relay holder by the steering column under the dashboard.

5 Main Instrument display
The control module of the main instrument display is located on the back of the display.

6 SID
The SID unit is located at the middle of the central console next to the switch controlling the hazard flashers.

7 TWICE
The control module is located beneath the left-hand seat.

8 Cruise control (petrol driven cars with T5 or M2.10.3)
The cruise control module is located in the right-hand corner of the engine bay.

9 ABS
The ABS control module is integrated with the brake unit in the engine bay.

10 Airbag
The airbag control module is located on a console under the central console between the seats.

11 Radio
The main unit is located centrally on the dashboard

12 CD changer
The CD changer is located in the luggage compartment at the LH wheel housing

13 STC
The control module for the soft-top opening is located next to the rear-seat loudspeaker.

14 ACC
The ACC unit is located under the radio.

15 PMM
The control unit for the electrically operated driver's seat and its memory is located in the seat under the seat cushion.
