Wiring Harness, Luggage Compartment Lid

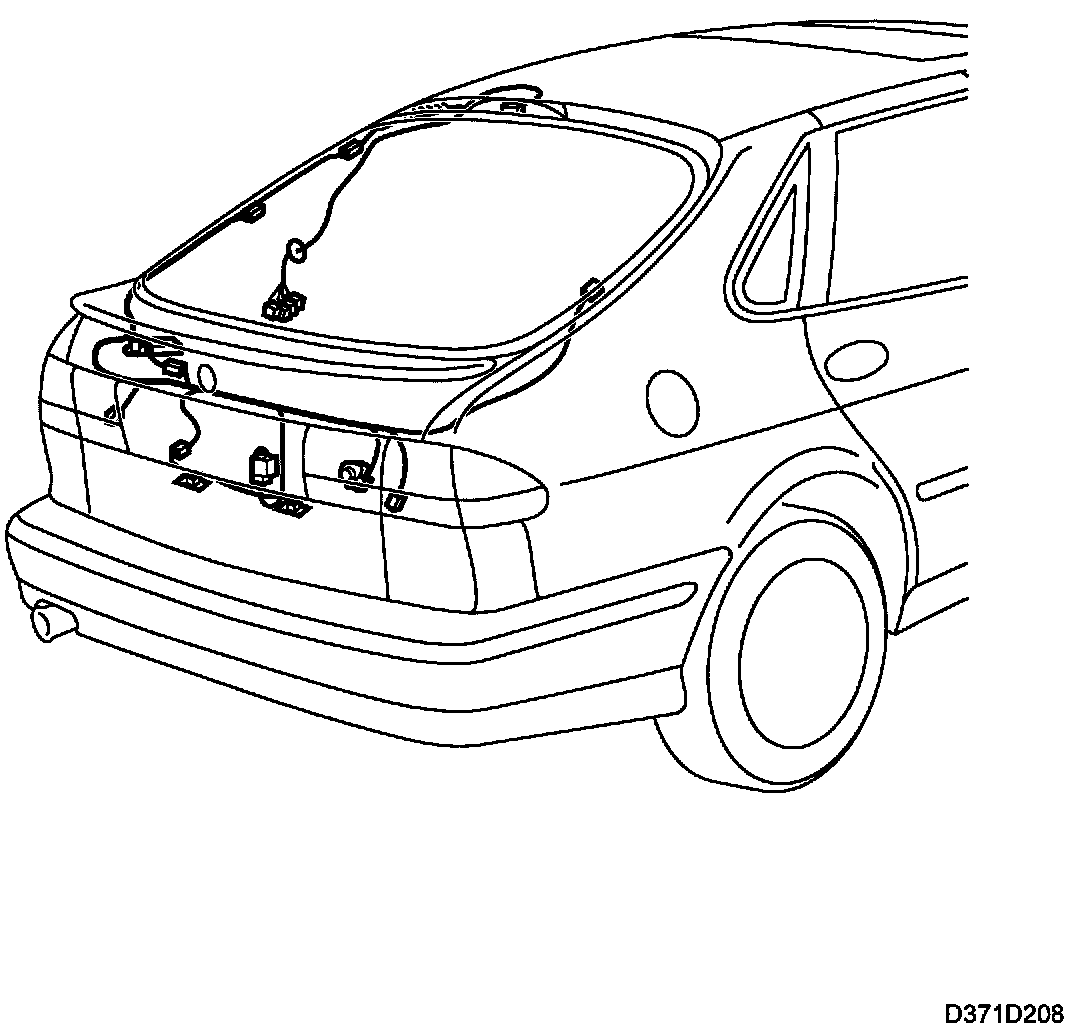

3D/5D







Components connected:

SMS Component name
15 Lamp, illumination, number plate
30RC Lamp, high-level brake light
32/33HL Lamp, reversing light/fog light, LH
32/33HR Lamp, reversing light/fog light, RH
56 Switch, luggage compartment lighting
62R Motor, rear-window wiper
115 Heating element, rear window
184H Motor, central locking, luggage compartment lid
622 Microswitch, luggage compartment lock

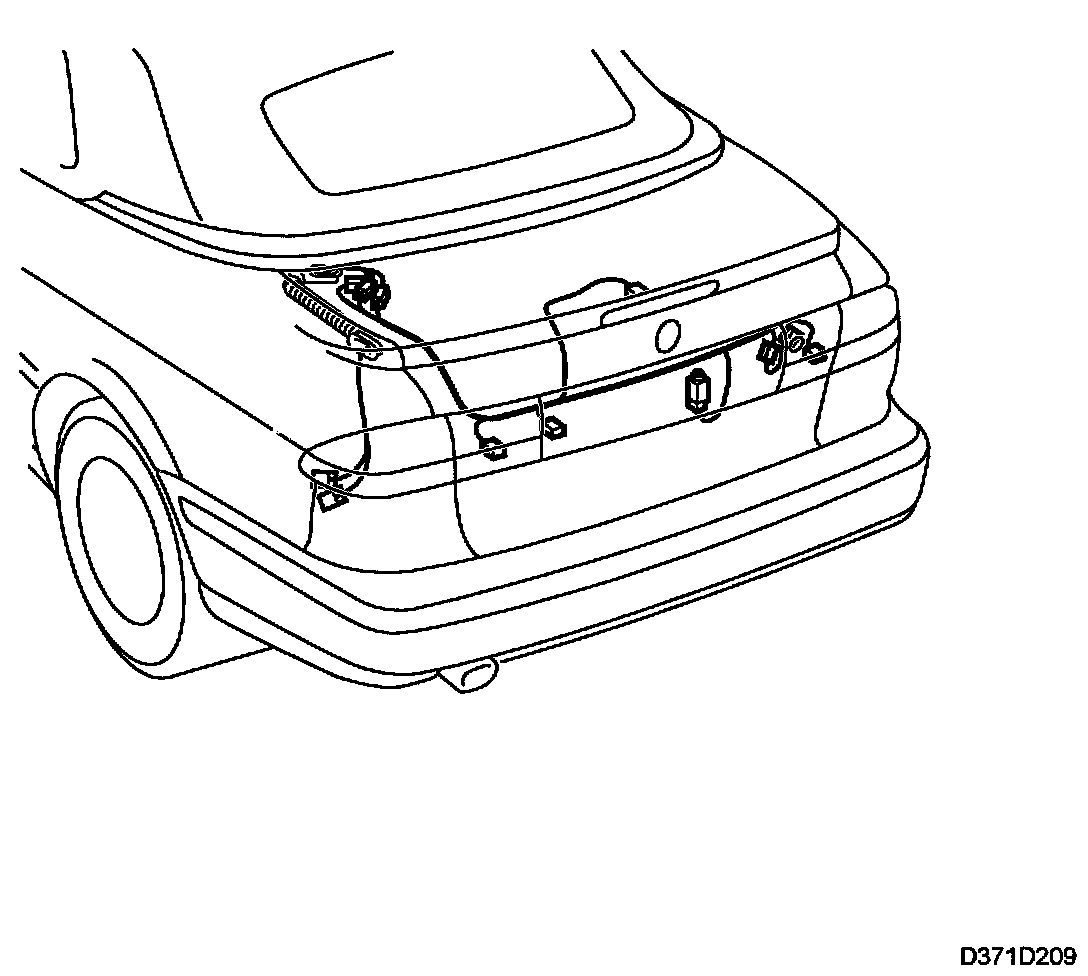

Convertible







Components connected:

SMS Component name
15 Lamp, illumination, number plate
30RC Lamp, high-level brake light
32HL Lamp, reversing light/fog light, LH
33HL
32HR Lamp, reversing light/fog light, RH
33HR
56 Switch, luggage compartment lighting
184H Motor, central locking, luggage compartment lid
622 Microswitch, luggage compartment lock
