Frame - Lifting and Attachment Points
SI. No. 801-9034PI No.
Date: December 1998
Distr.: all
900, 9-3
Lifting and attachment points
Cars affected
Saab 900 and 9-3
Procedure

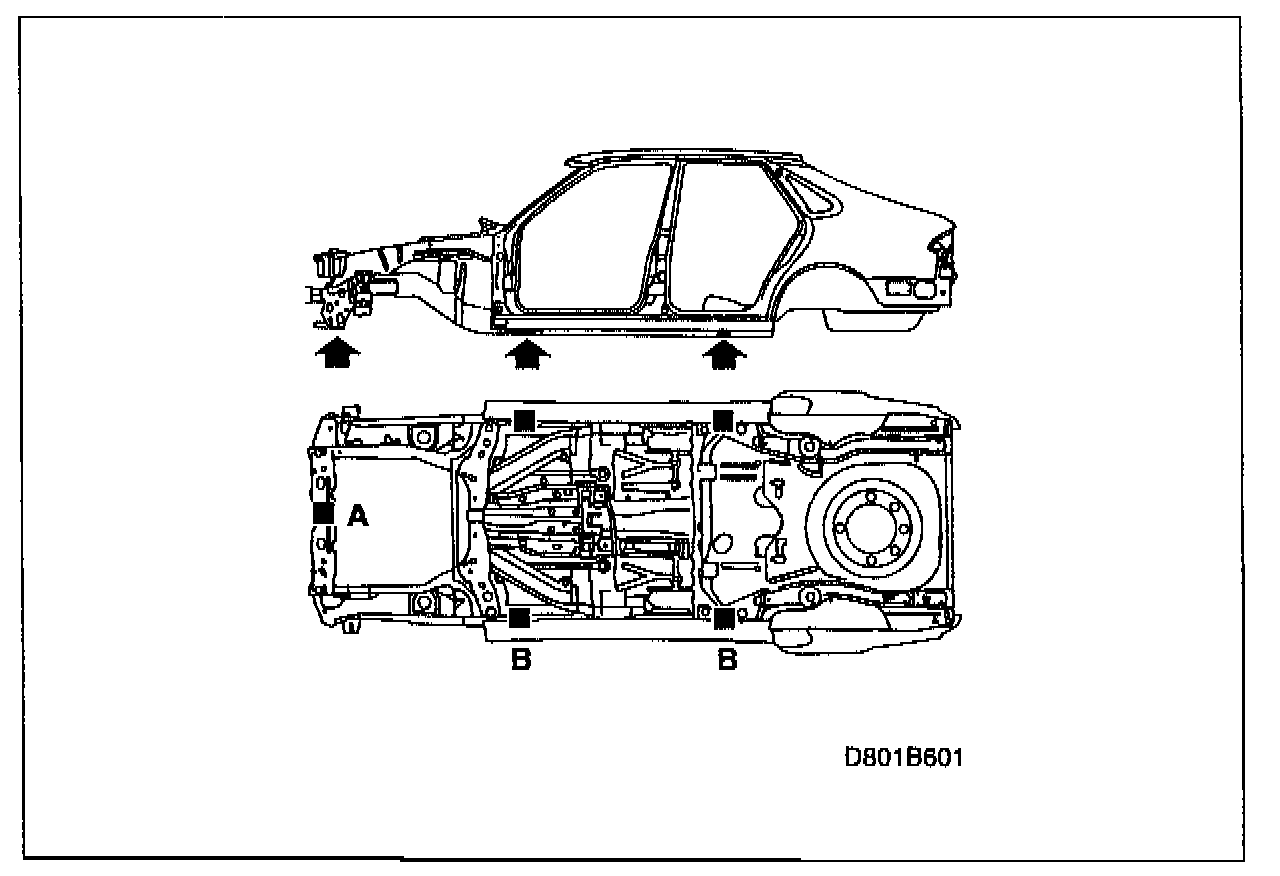

Exercise care when a car is to be placed on a lift or when a jack is to be used. The above illustration shows the lifting and attachment points that must be used.
A. Under the front cross-member, in the center.
B. At the jacking point under the sill members (the sill scuff plate could be squashed).
If the wrong lifting or attachment points are used, the car could move or fall from its raised position. This could seriously damage the car or cause serious injury.
Do not jack up the rear end of the car under the spare wheel well or rear axle as this could result in serious damage, such as a bent rear axle or deformed floor panel.
