Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Locations >> Splice Locations >> Crimps (Splices)

Crimps (Splices)

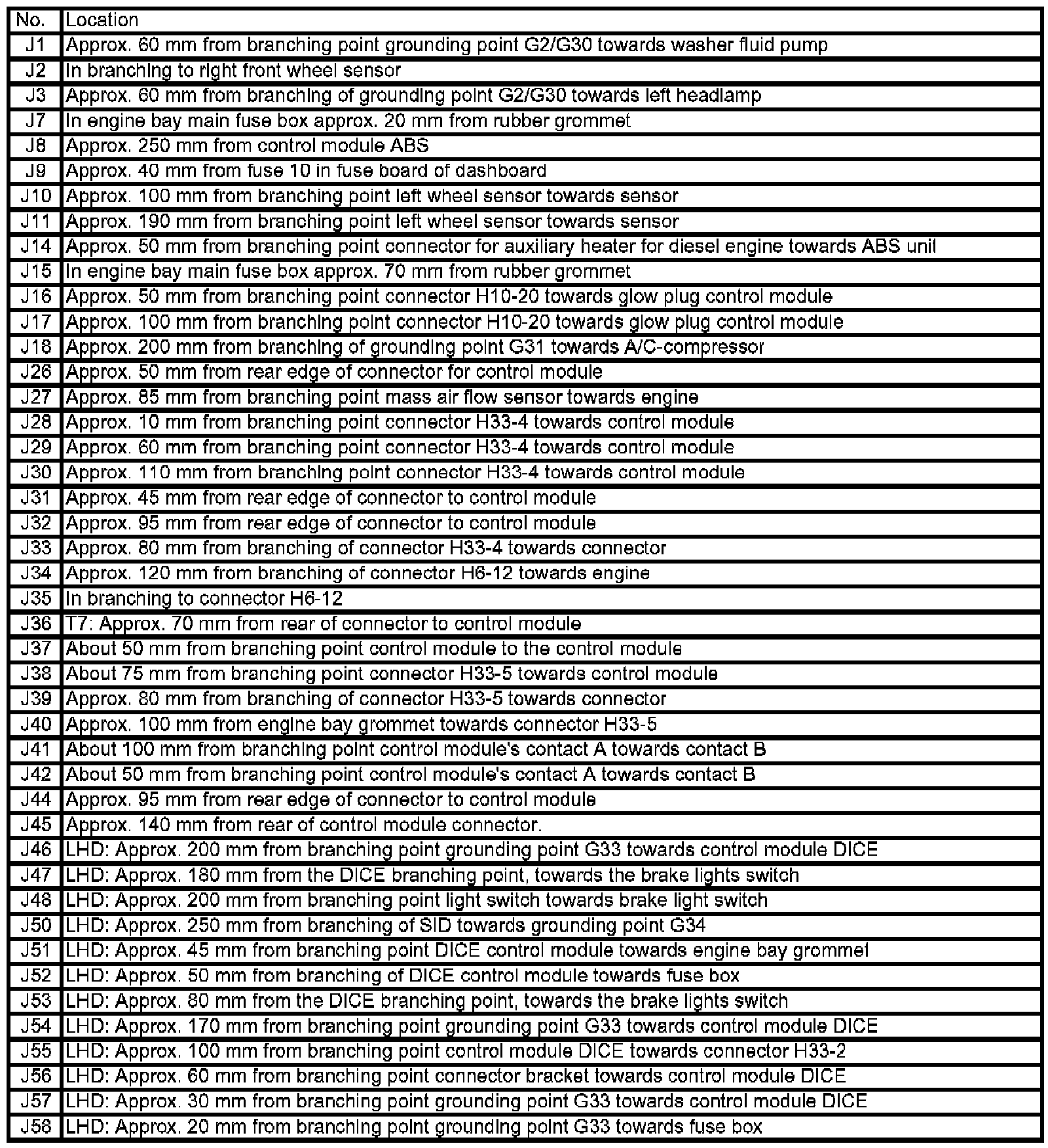

J1 To J58:

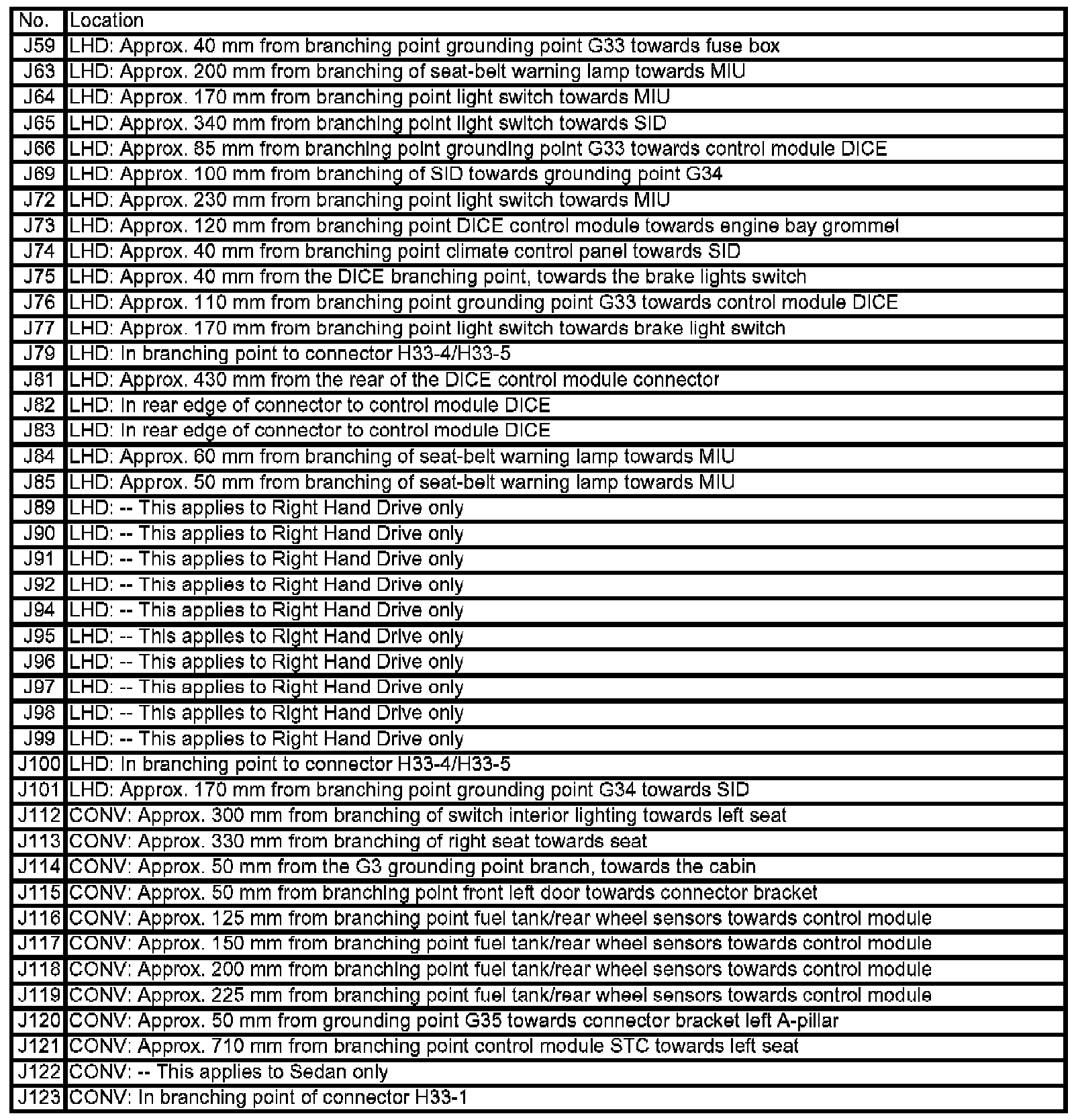

J59 To J123:

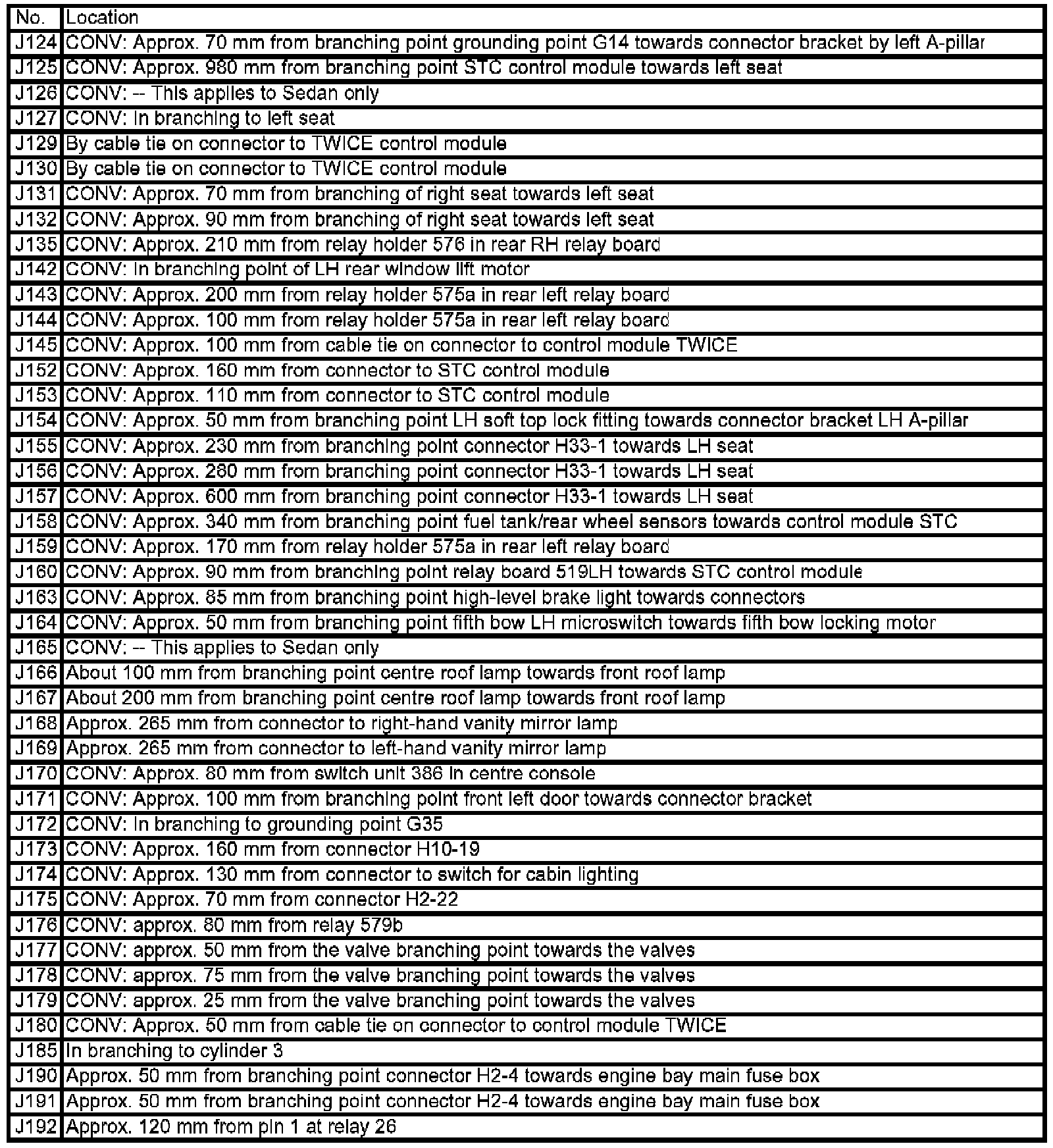

J124 To J192:

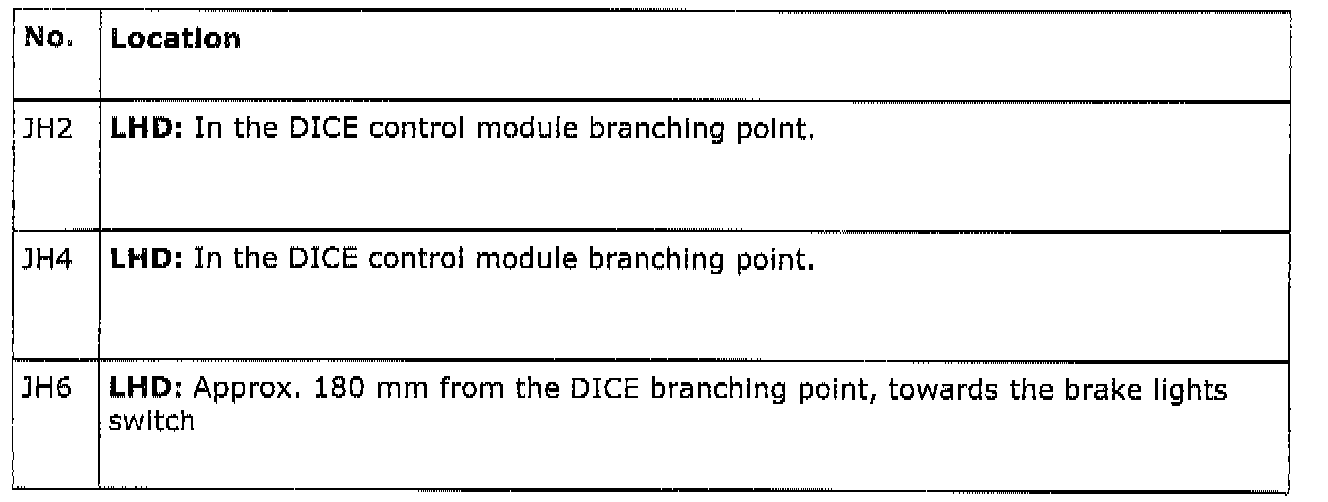

JH2 To JH6:
