Direction Indicators, Front

Direction Indicators, Front

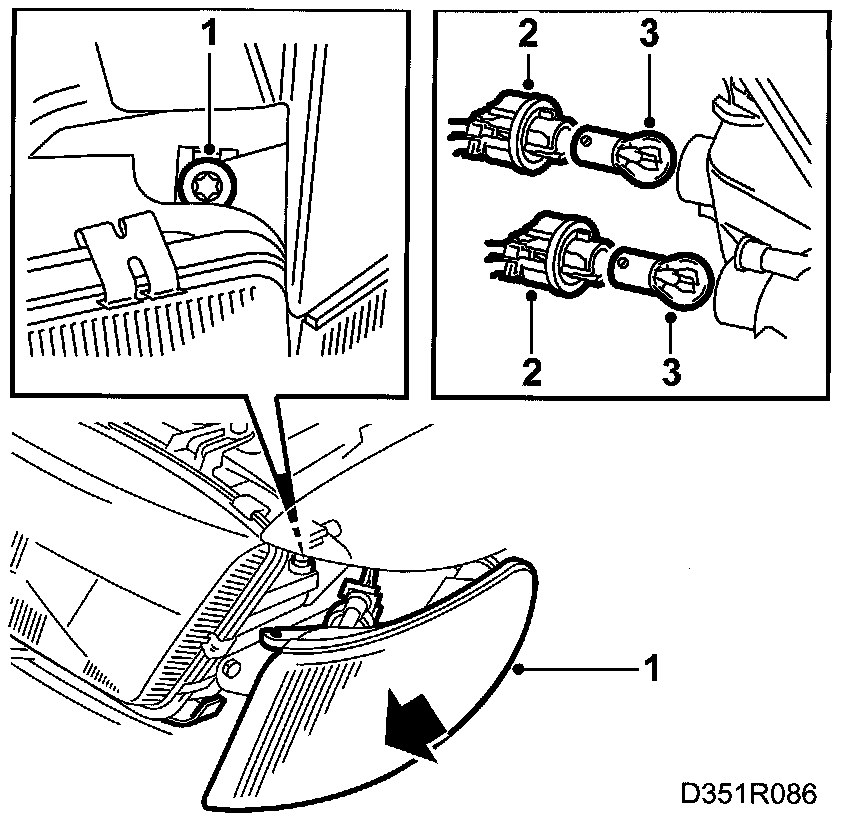

To remove







1. Unscrew the screw holding the light cluster and pull the lamp forwards.
2. Turn the lamp holder anti-clockwise and lift it out completely. For some markets there are two lamp holders.
3. Remove the light cluster.

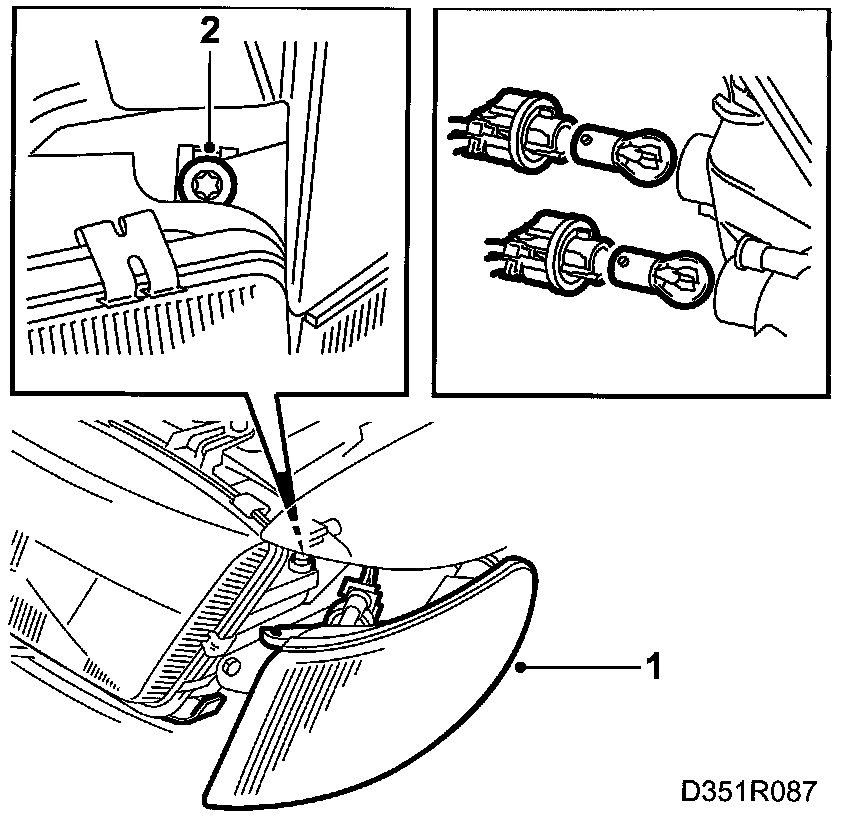

To fit







1. Insert the lamp and lamp holder into the light cluster and turn it clockwise to fasten it.

NOTE: Be careful when fitting the light cluster so that the hook in the front edge and the guide in the rear edge are aligned with the headlamp.

2. Position the light cluster correctly and screw it in place. Make sure the plate nut is in the correct position.
