Direction Indicators, Front

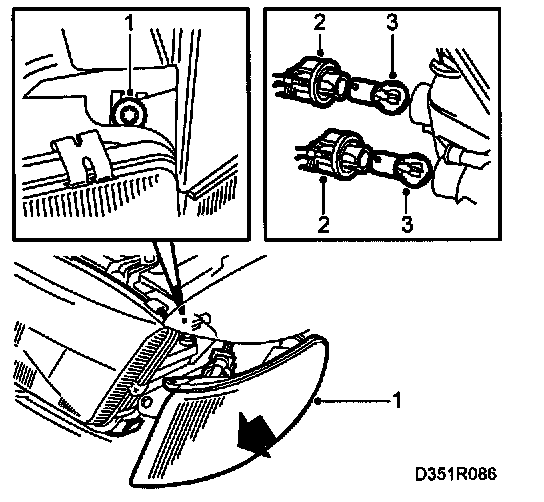

To remove







1 Unscrew the screw holding the light cluster and pull the lamp forwards.
2 Turn the lamp holder anti-clockwise and lift it out completely. For some markets there are two lampholders.
3 Remove the light cluster.

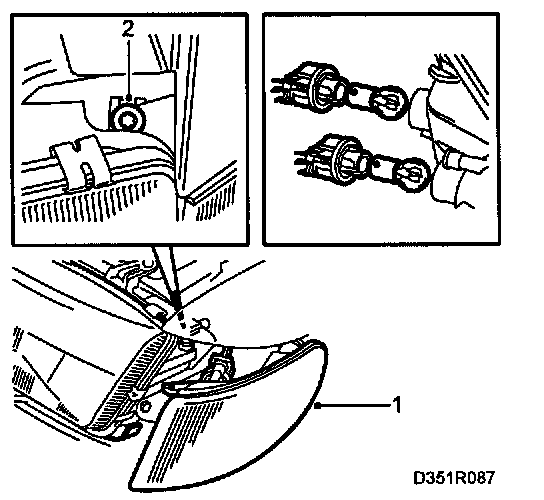

To fit







1 Insert the lamp and lampholder into the light cluster and turn it clockwise to fasten it.


NOTE: Be careful when fitting the light cluster so that the hook in the front edge and the guide in the rear edge are aligned with the headlamp.


2 Position the light cluster correctly and screw it in place. Make sure the plate nut is in the correct position.
