Electrical Diagrams

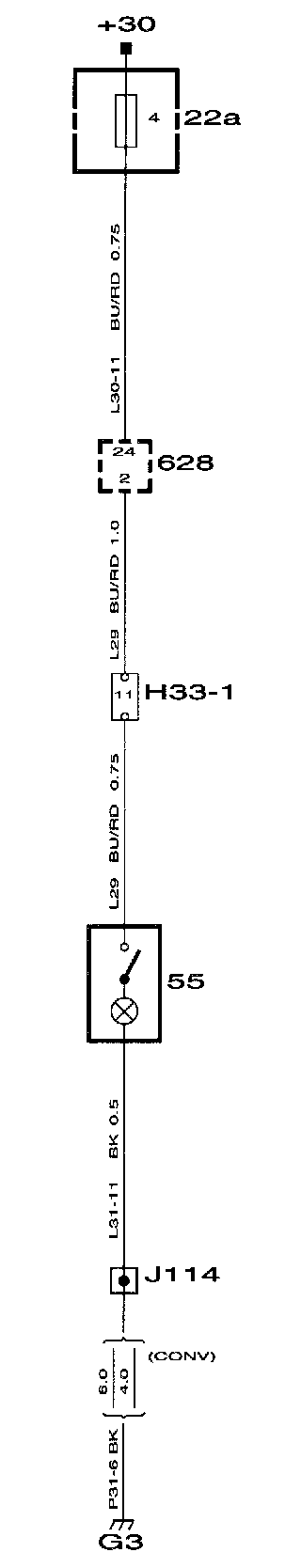

Luggage Compartment Lighting

Components
No. Name and location
22a. Main fuse board, dashboard; on side of dashboard by driver's door
55. Lamp, luggage compartment lighting; on left-hand side of luggage compartment
628. Control module, DICE
LHD: above main relay board in dashboard
RHD: behind main relay board in dashboard

33-pin connector
No. Location
H33-1 Grey connector on bracket below left-hand A-pillar

Crimped connectors
No. Location
J114 3D/5D: Approx 80 mm from grounding point G3 branching point towards compartment CONV: Approx 50 mm from right-hand rear light cluster branching point towards compartment

Grounding points
No. Location
G3 Grounding point luggage compartment; on the floor under the left-hand rear light cluster
