Switches In the Dashboard

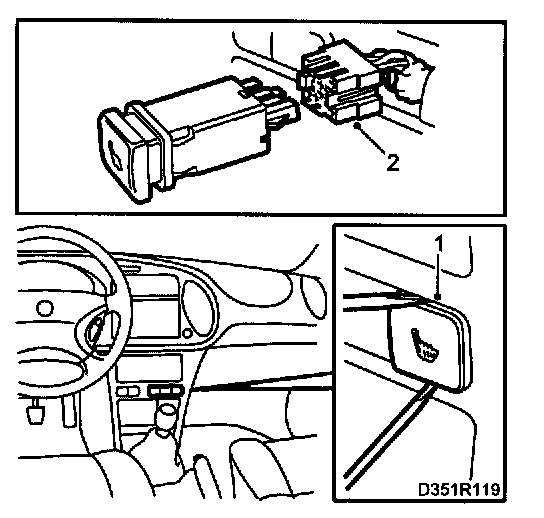

To remove







NOTE: Be careful not to damage the dashboard.


1 Extract the switch using two screwdrivers. (Hazard flashers) The switch should be in the active position before extracting it.
2 Unplug the connector.

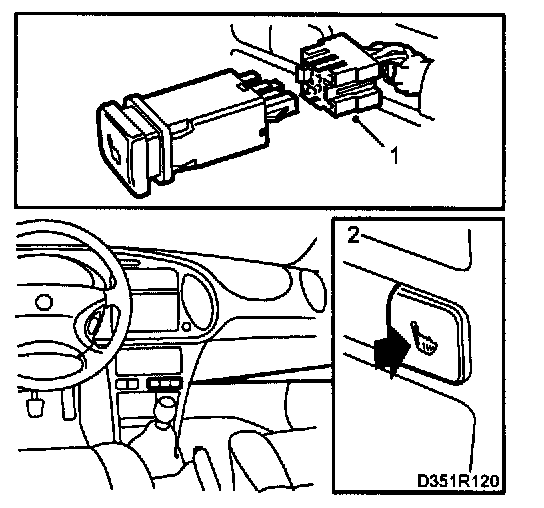

To fit







1 Replug the connector.
2 Push the switch into position.
