Rear Lights and Rear Light Fittings

To remove

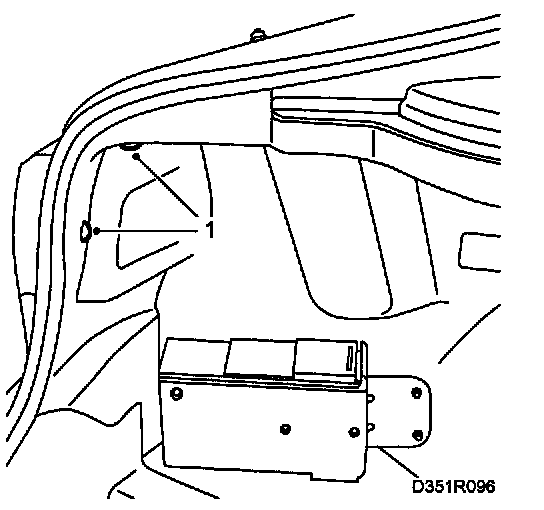

1. Unscrew the nut holding the rear edge of the side trim and fold down the trim.

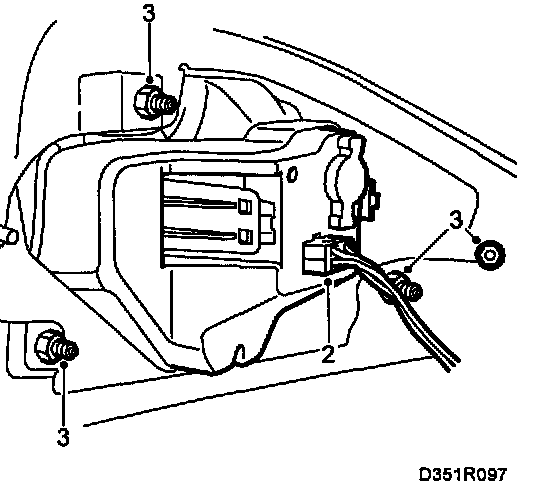

2. Loosen the lamp holder.
3. Unscrew the 4 lamp glass retaining nuts and remove the lamp cluster.


To Fit

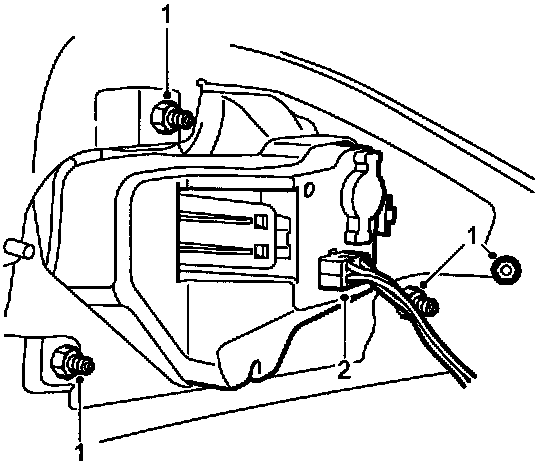

1. Position the lamp glass correctly and screw on the retaining nuts.
2. Fit the lamp holder.

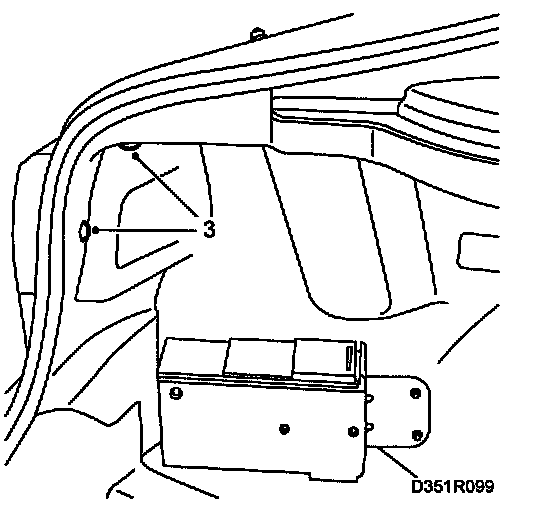

3. Replace the nuts and side trim.
