Rear Light Fitting In Luggage Compartment

To remove





1. Open the cover in the luggage compartment trim on the side in question.

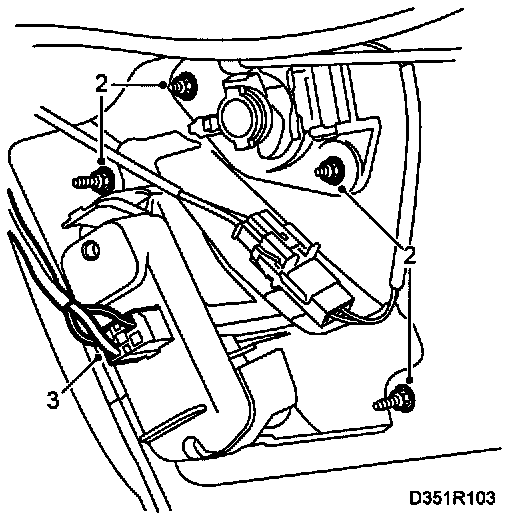

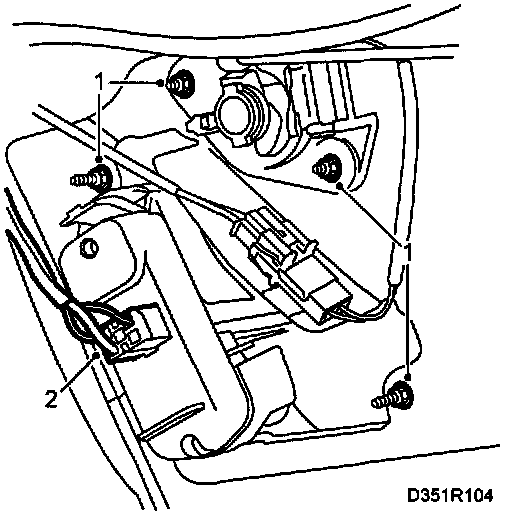

2. Unscrew the nuts holding the lamp fitting, 3 (LH side) and 4 (RH side).





3. Loosen the lamp holder.


To Fit

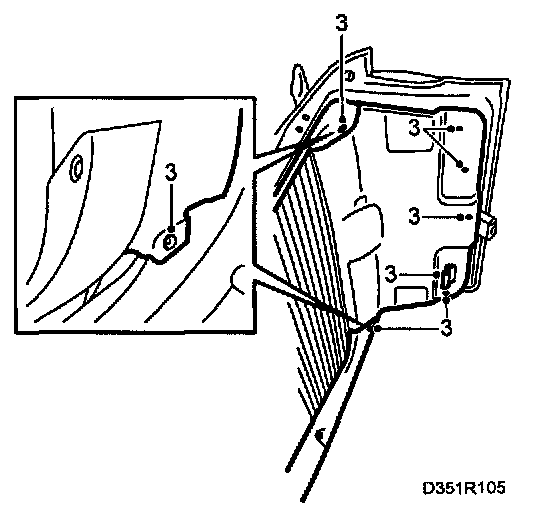

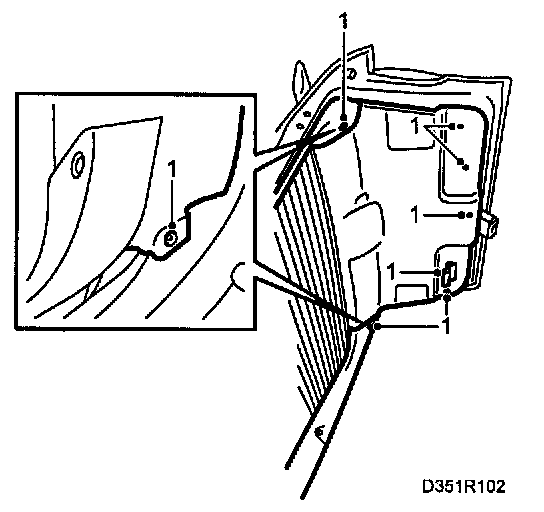

1. Press in the lower corner of the fitting and fit the screws, 3 (LH side) and 4 (RH side).
2. Fit the lamp holder.





3. Close the cover in the luggage compartment trim.
