Lamp Bulb, Rear Light


Lamp bulb, rear light

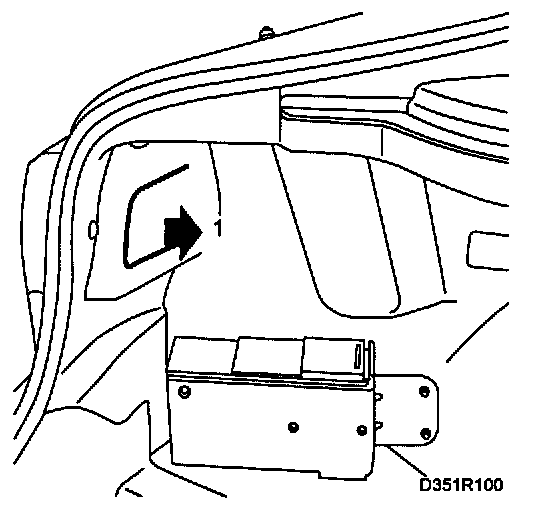

1. Open the cover in the trim.

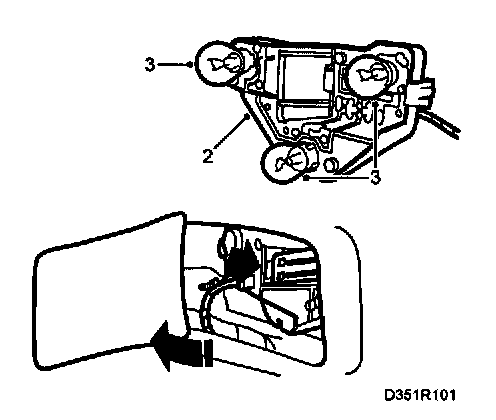

2. Loosen the lamp holder.
3. Remove and change the bulb.
4. Fit the bulb holder.
5. Put back the trim cover.
