Panel Lighting

Replacing the front panel

Panel Lighting:

1 Remove the main unit. see Radio/Stereo. Radio/Stereo Remove the main unit's lower and upper covers.

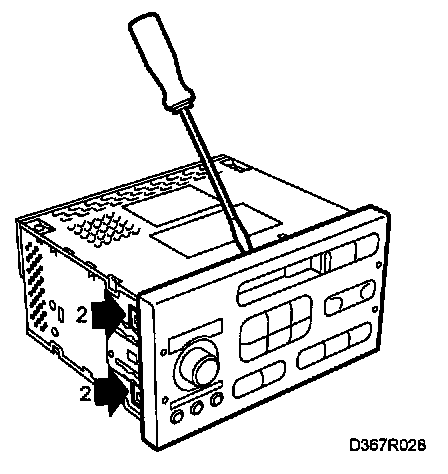

2 Unhook the 4 locking tabs (2 on each side) securing the front panel. If necessary, prise carefully with a screwdriver.


NOTE When refitting, ensure that the connector under the front panel is correctly positioned.


To fit
Put the front panel onto the main unit and tighten the bottom/top covers, plug in the connectors and slide in the main unit.
