Lamp Holder, Front Roof Console

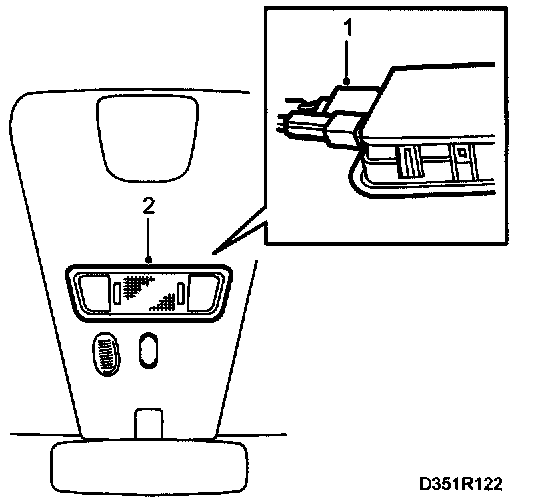

To remove







1 Remove the lamp cover.
2 Remove the connectors and lamp bulbs.
3 Put the lamp holder downwards and replace it.


To fit







1 Replug the connectors.
2 Put the lamp holder back in the roof console.
3 Fit the lamp cover.

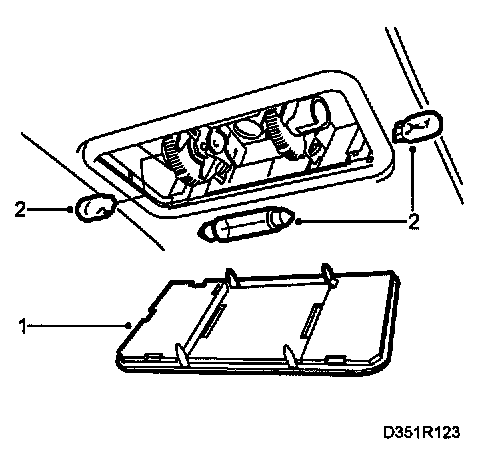

1 Remove the lamp cover.
2 Change the bulb.
3 Fit the lamp cover.
