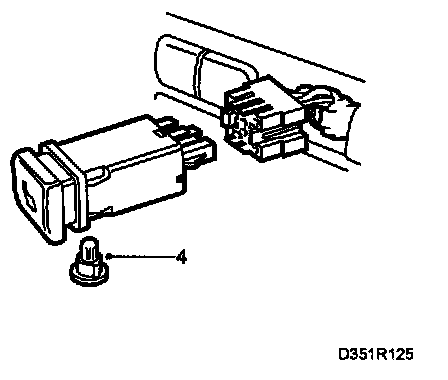

Lamp Bulbs In the Instrument Panel









1 Remove the storage compartment or ashtray.
2 Insert a hand into the hole and press out the switch from inside.
3 Turn the bulb on the bottom of the switch anti-clockwise and pull it out.
4 Fit a new bulb and press the switch into the panel.
5 Fit the storage compartment or ashtray

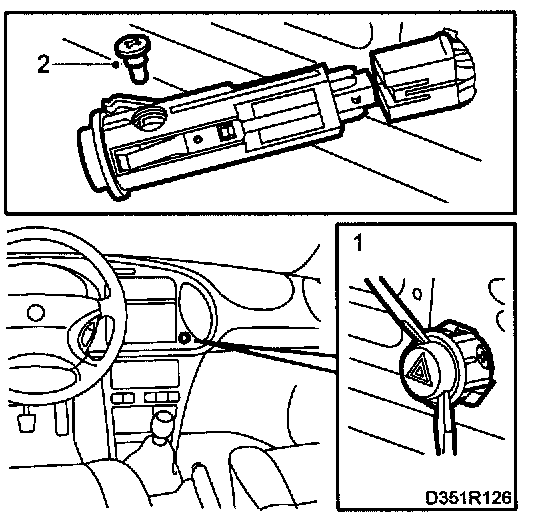

Bulb In The Hazard Flasher Switch:






1 Pull out the switch with two screwdrivers. Remove the lamp.
2 Fit a new bulb and press the switch into the panel.
