Dipswitch

To remove







1 Pull out the steering wheel to its outermost position.

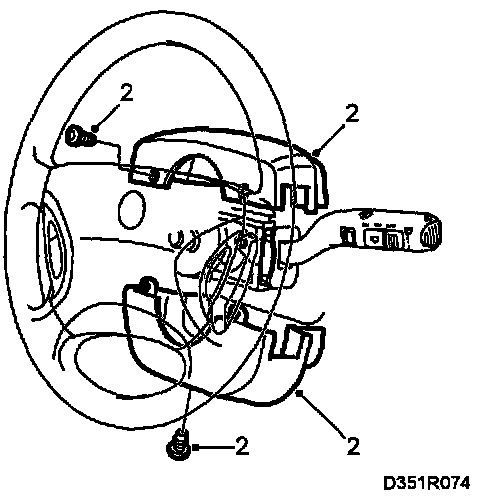

2 Remove the steering column bearing bracket cowls (3 screws).


NOTE: Be careful when removing because there are 4 locking hooks in the lower cowl.

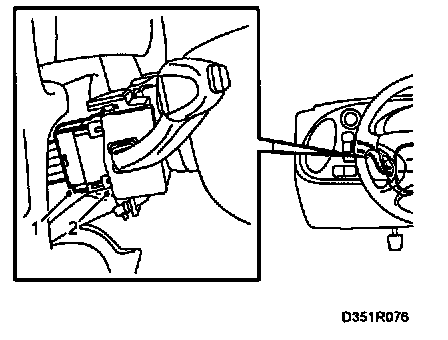

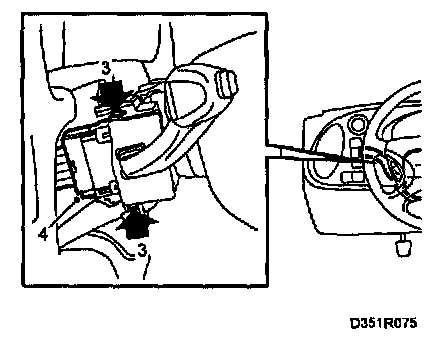

3 Pull out the stalk switch (2 clips).







4 Unplug the 10-pin connector.

To fit







1 Reconnect the 10 pin connector.
2 Fit the stalk switch.
3 Fit the steering column bearing bracket cowls.







4 Adjust the steering wheel to its original position.
