Horn Switch: Service and Repair

To remove







WARNING
Be careful to read all the safety instructions before working on the airbag.


1 Remove the airbag,

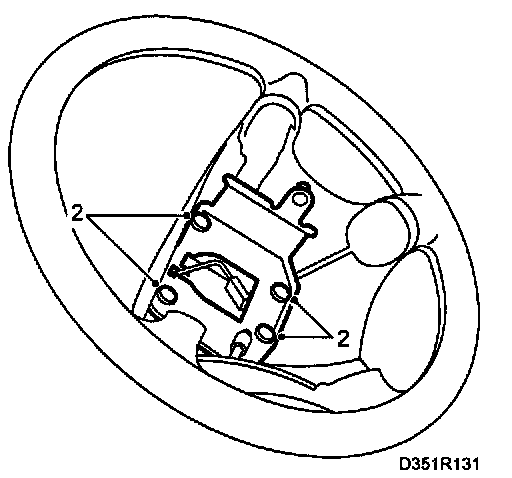

2 Remove the four horn plate retaining screws and lift up the whole unit.

IMPORTANT
Retain the springs. They are not included in the spare part kit.

To fit

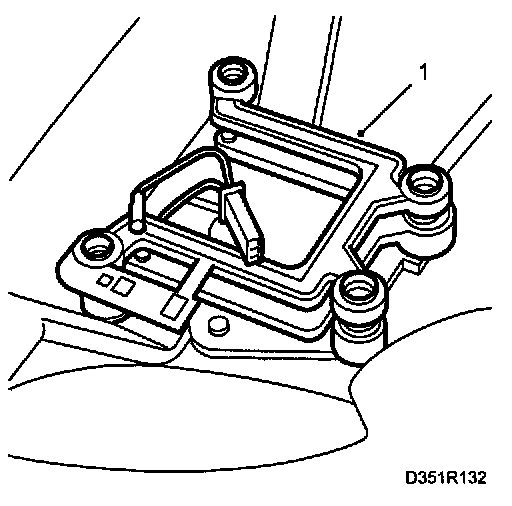

1 Fit the old springs to the new horn switch.

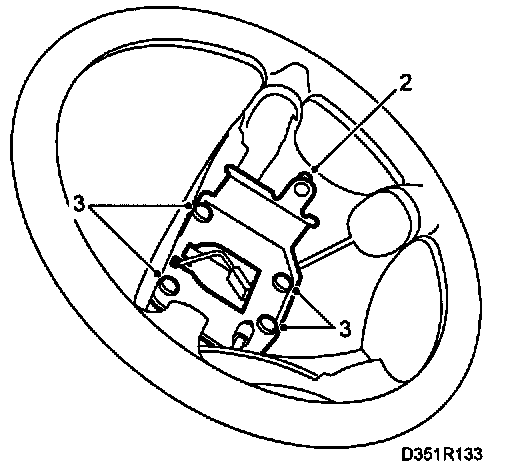

2 Place the horn plate on the horn switch.







3 Fit the horn plate.
Tightening torque 8±1 Nm (5.86±0.73 lbf ft)
4 Fit the airbag.
