Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Headlamps (Main and Dipped Beams)

Headlamps (Main and Dipped Beams)

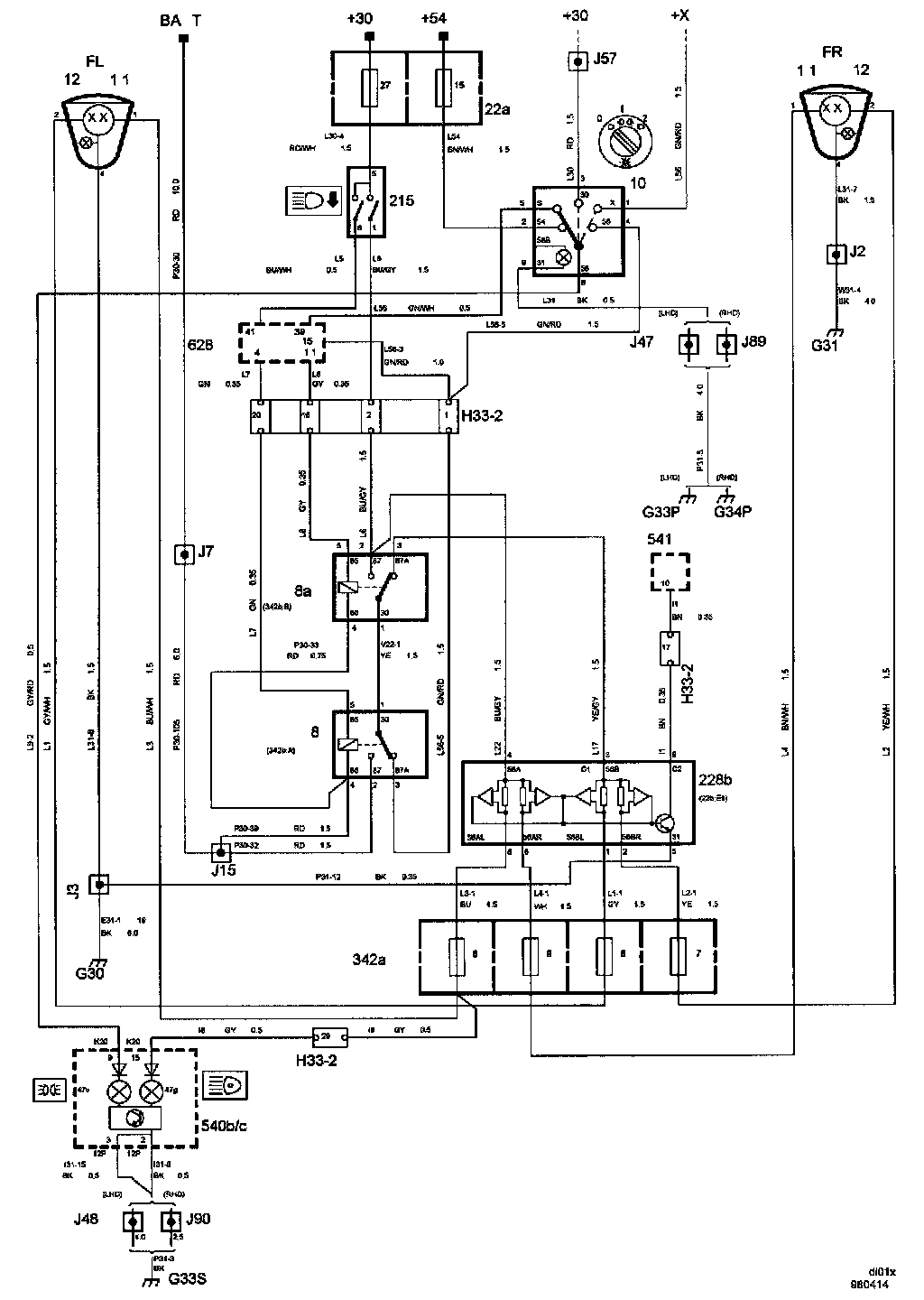

Headlamps (Main And Dipped Beams):

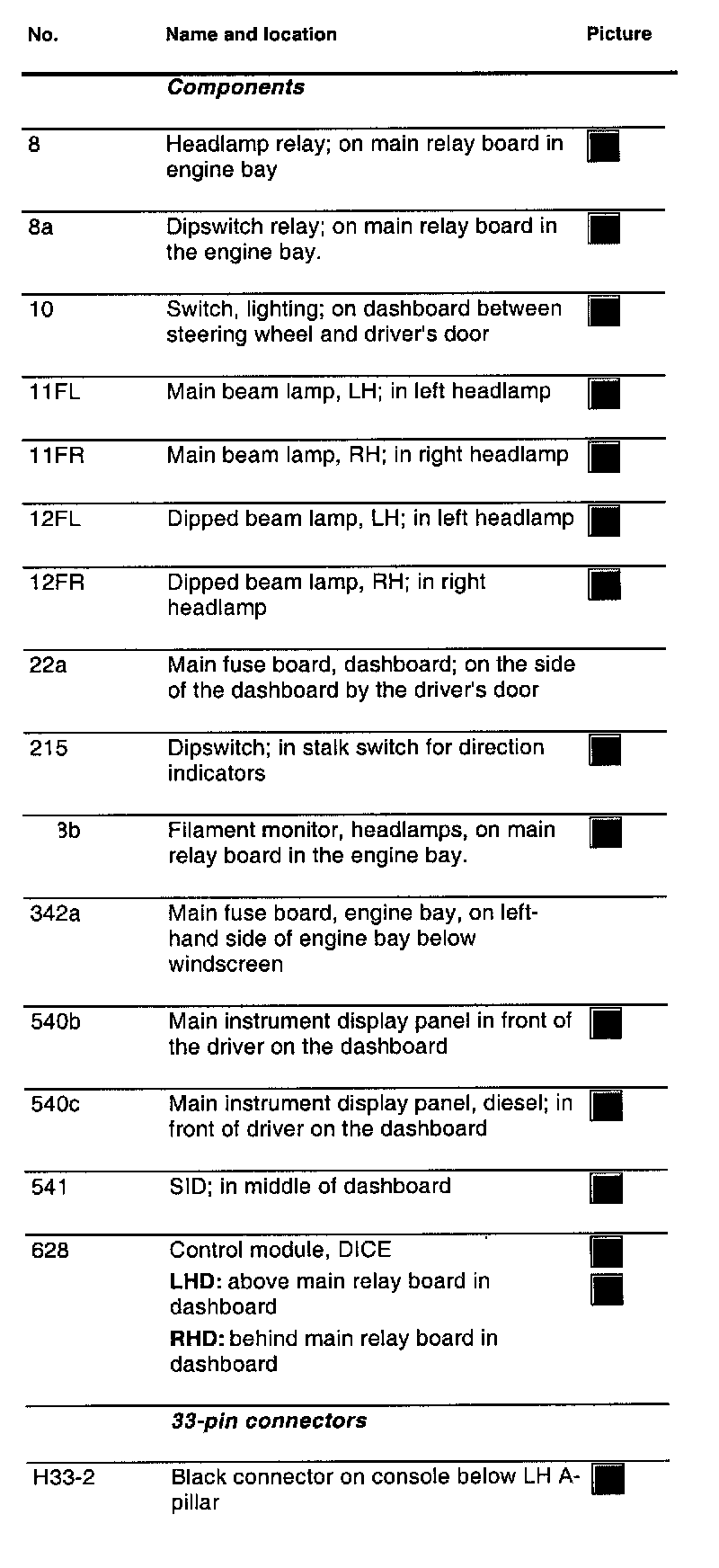

Component List (Part 1 Of 2):

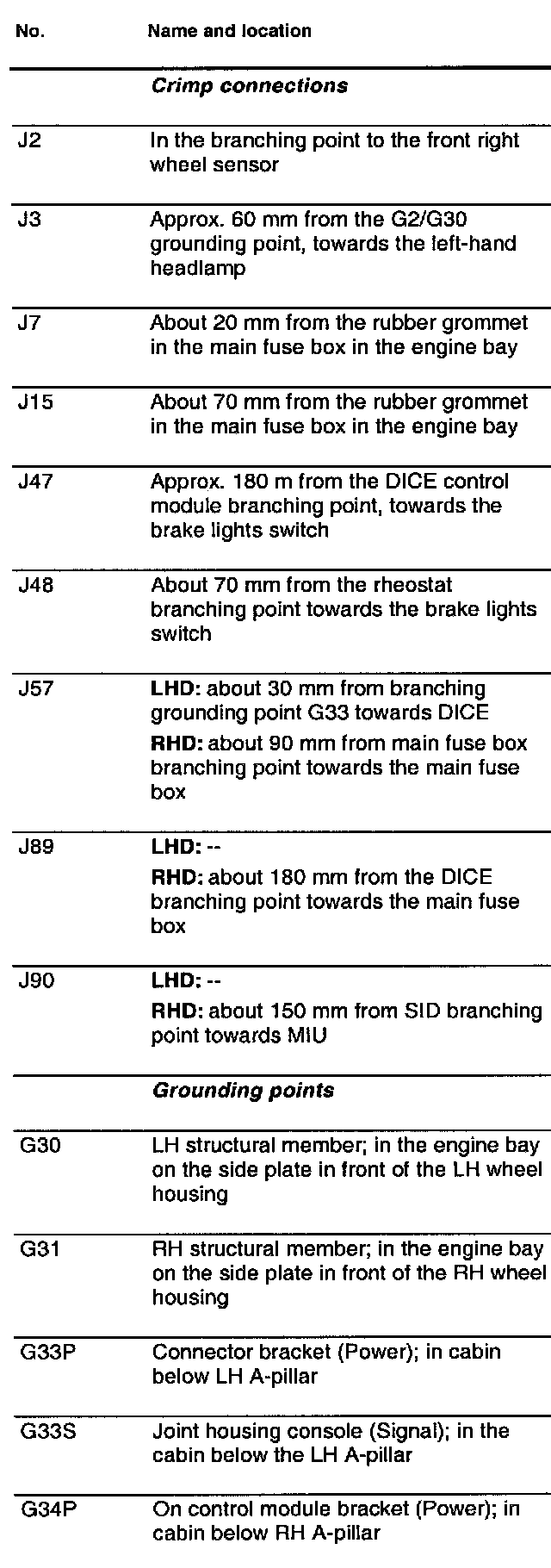

Component List (Part 2 Of 2):
