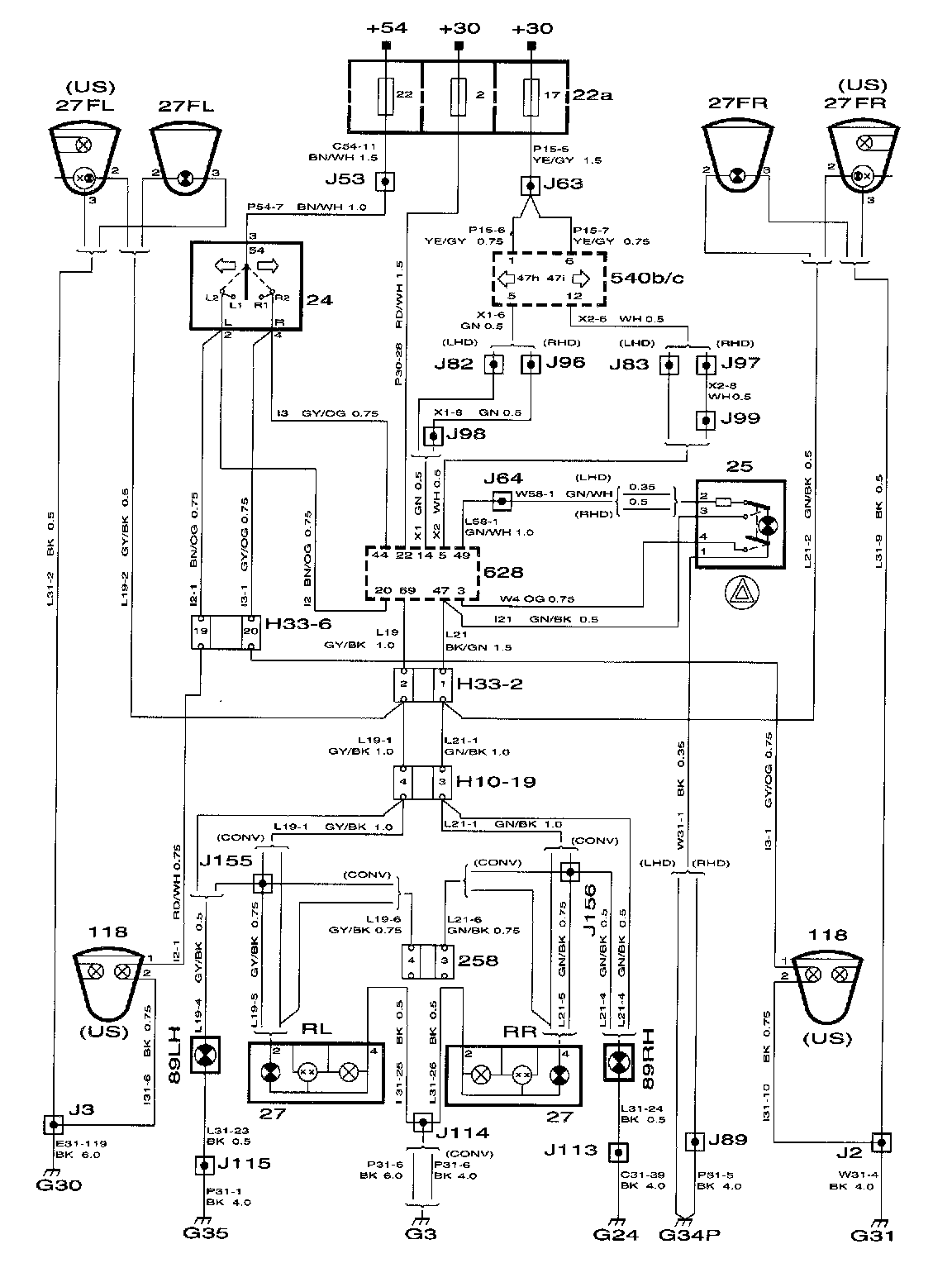

Electrical Diagrams
Direction Indicators, Hazard Flashers
Components
No. Name and location
22a Main fuse board, dashboard; on side of dashboard by driver's door.
24 Switch, direction indicators; on left of steering column
25 Switch, hazard flasher; between radio and centre dashboard vent
27FL Lamp, front direction indicators, left in left-hand front light cluster
27FR Lamp, front direction indicators, right; in right-hand front light cluster
27RL Lamp, rear direction indicators, left; in left-hand rear light cluster
27RR Lamp, rear direction indicators, right; in right-hand rear light cluster
89LH Lamp, side direction indicator, left; on left front wing
89RH Lamp, side direction indicator, right; on right front wing
118FL Lamp, corner light, left; on left-hand side of spoiler under front bumper
118FR Lamp, corner light, right; on right-hand side of spoiler under front bumper
258 Connection, trailer connector; in luggage compartment below left-hand rear light cluster
540b Main instrument unit; in front of driver in dashboard
540c Main instrument unit, diesel; in front of driver in dashboard
628 Control module, DICE
LHD: above main relay board in dashboard
RHD: behind main relay board in dashboard
10-pin connectors
No. Location
H10-19 On bracket below left-hand A-pillar
33-pin connector
No. Location
H33-2 Black connector on bracket below left-hand A-pillar
H33-6 Brown connector on bracket below left-hand A-pillar
Crimped connectors
No. Location
J2 Approx. 200 mm from right-hand direction indicator lamp towards grounding point G31
J3 Approx 225 mm from grounding point G30 towards left-hand headlamp
J53 LHD: Approx 45 mm from control module DICE branching point towards bulkhead grommet
RHD: Approx 295 mm from direction indicator switch branching point towards DICE control module
J63 LHD: Approx 200 mm from branching point MIU towards SID
RHD: Approx 50 mm from branching point rheostat towards light switch
J64 LHD: Approx 40 mm from rheostat branching point towards MIU
RHD: Approx 110 mm from DICE control module branching point towards bulkhead grommet
J82 LHD: On rear of connector to DICE control module
RHD: --
J83 LHD: On rear of connector to DICE control module
RHD: --
J89 LHD:-
RHD: Approx 180 mm from control module DICE branching point towards main fuse board
J96 LHD:--
RHD:Approx. 40 mm from SID branching point towards MIU
J97 LHD:-
RHD:Approx. 200 mm from SID branching point towards MIU
J98 LHD:-
RHD: Approx. 100 mm from ignition switch branching point towards cigarette lighter
J99 LHD:-
RHD: Approx. 150 mm from ignition switch branching point towards cigarette lighter
J113 3D/5D: Approx 320 mm from right-hand rear door branching point towards right-hand seat
CONV: Approx 330 mm from right-hand seat branching point towards seat
J114 3D/5D: Approx 80 mm from grounding point G3 branching point towards compartment
CONV: Approx 50 mm from right-hand rear light cluster branching point towards compartment
J115 3D/5D: Approx 410 mm from connector H33-1 towards left-hand door
CONV: Approx 50 mm from left-hand front door branching point towards connector bracket
J155 3D/5D:--
CONV: Approx 230 mm from connector H33-1 branching point towards left-hand seat
Grounding points
No. Location
G3 Grounding point luggage compartment; on the floor under the left-hand rear light cluster
G24 Grounding point right-hand seat; under the seat behind the seat member
G30 Grounding point left-hand structural member; in engine bay on side plate in front of left-hand wheel housing
G31 Grounding point right-hand structural member; in engine bay on side plate in front of right-hand wheel housing
G34P Grounding point control module bracket (Power); in compartment below right-hand A-pillar
G35 Grounding point dashboard; on side wall behind connector bracket under left-hand A-pillar
