Fog/Driving Lamp: Adjustments

Fog Light Adjustment:

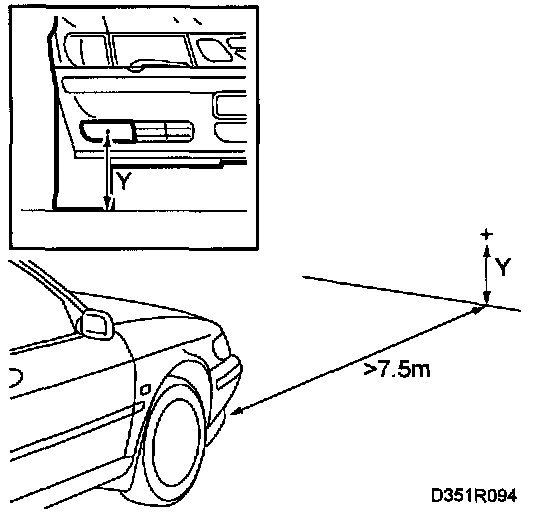

1 Measure the distance between the centre of the lens and the floor. Mark the wall (at 90 ° to the lens) with a cross at the same height.
2 Switch on the fog lights.

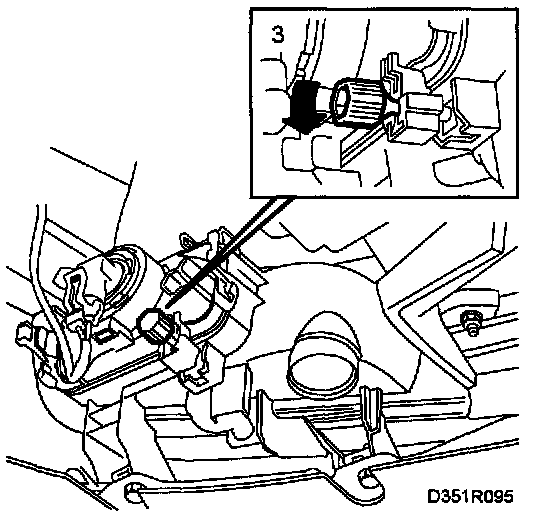

3 Turn the adjusting screw until the light is below the cross by approximately 1-2% of the distance between the car and the wall (e. g. 10-20 cm under the cross if the distance between the car and the wall is 10 m).
