Courtesy Lamp: Service and Repair

Interior Lighting Rear Seat

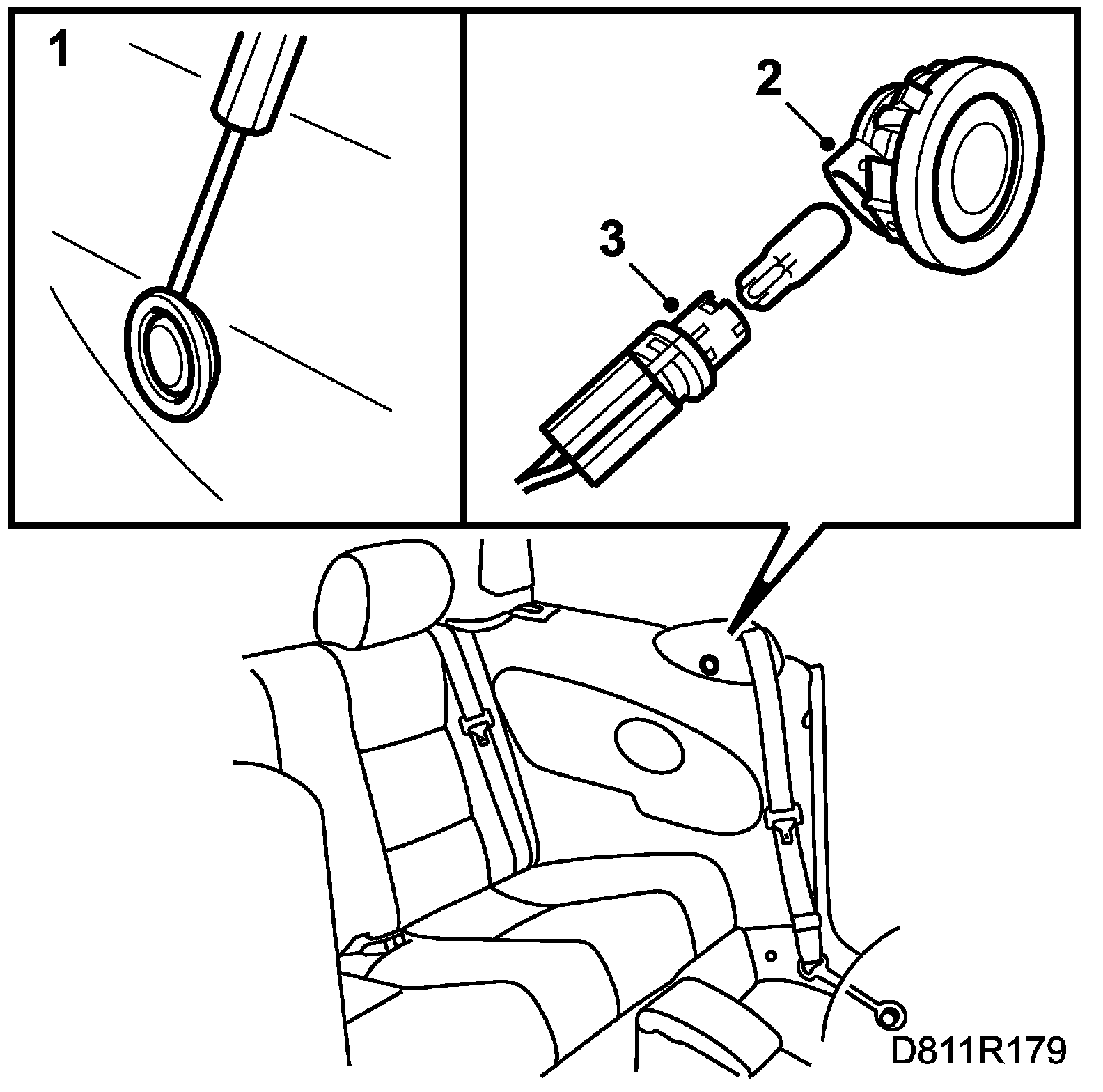

Removing







1. Loosen the light by carefully bending it loose with a small screwdriver. Protect the guide strap cover from any damage.
2. Remove the glass from the bayonet fitting and retain the bulb.
3. Unplug the connector and remove the bulb holder.

Fitting







1. Plug in the connector.
2. Fit the bulb and the glass.
3. Fit the light in the strap guide cover.
