Brake Lamp: Service and Repair

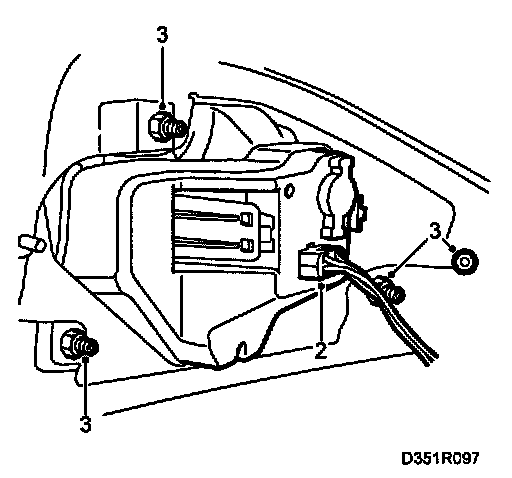

To remove







1 Unscrew the nut holding the rear edge of the side trim and fold down the trim.
2 Loosen the lamp holder.







3 Unscrew the 4 lamp glass retaining nuts and remove the lamp cluster.

To fit







1 Position the lamp glass correctly and screw on the retaining nuts.
2 Fit the lamp holder.
3 Replace the nuts and side trim.

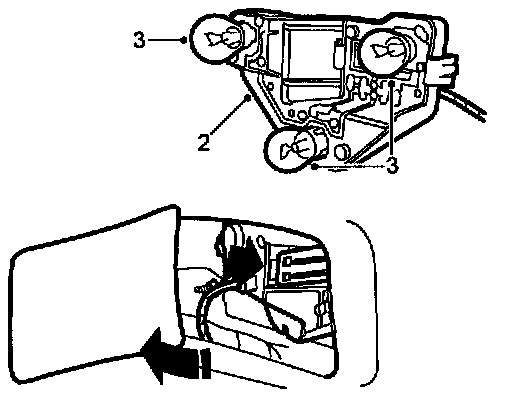

Lamp Bulb, Rear Light







1 Open the cover in the trim.
2 Loosen the lamp holder.







3 Remove and change the bulb.
4 Fit the bulb holder.
5 Put back the trim cover.
