Tech2 Menu Structure, read, activate, adj, program, system info

Diagnostic trouble codes (DTC)

Read Values/Activate

Adjustment

Programming

Snapshot

System Information

Menu "Read Values"

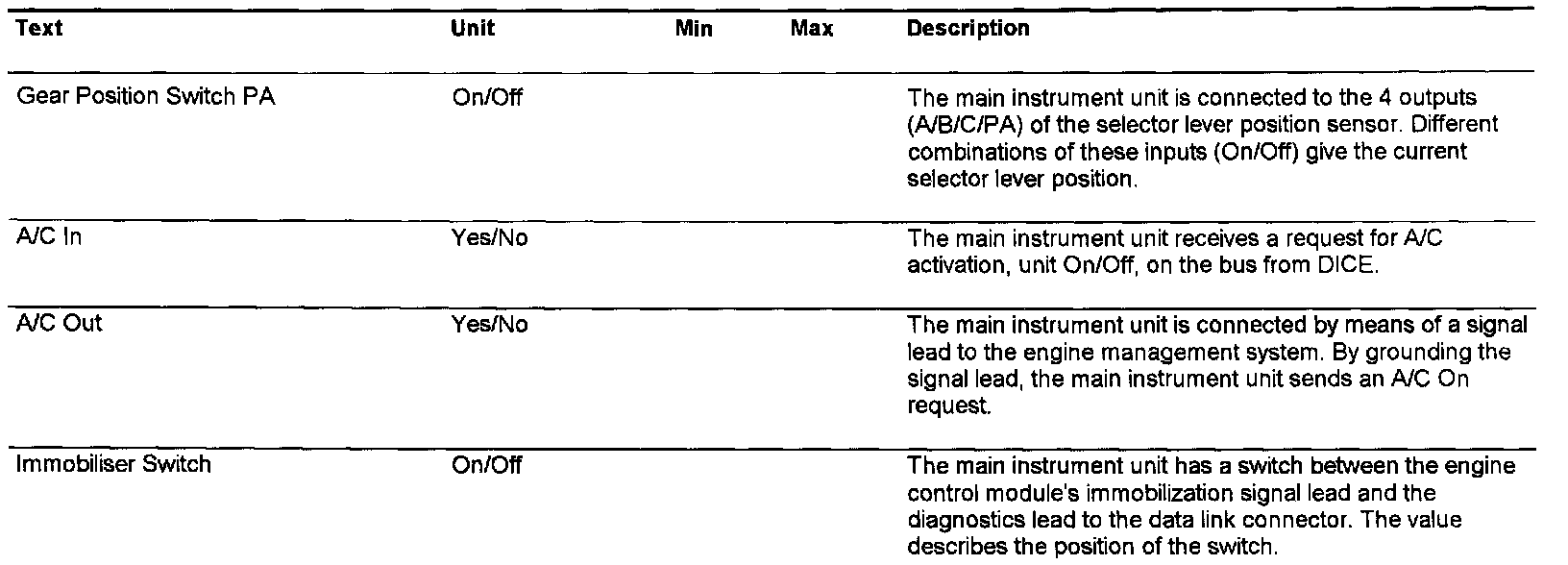

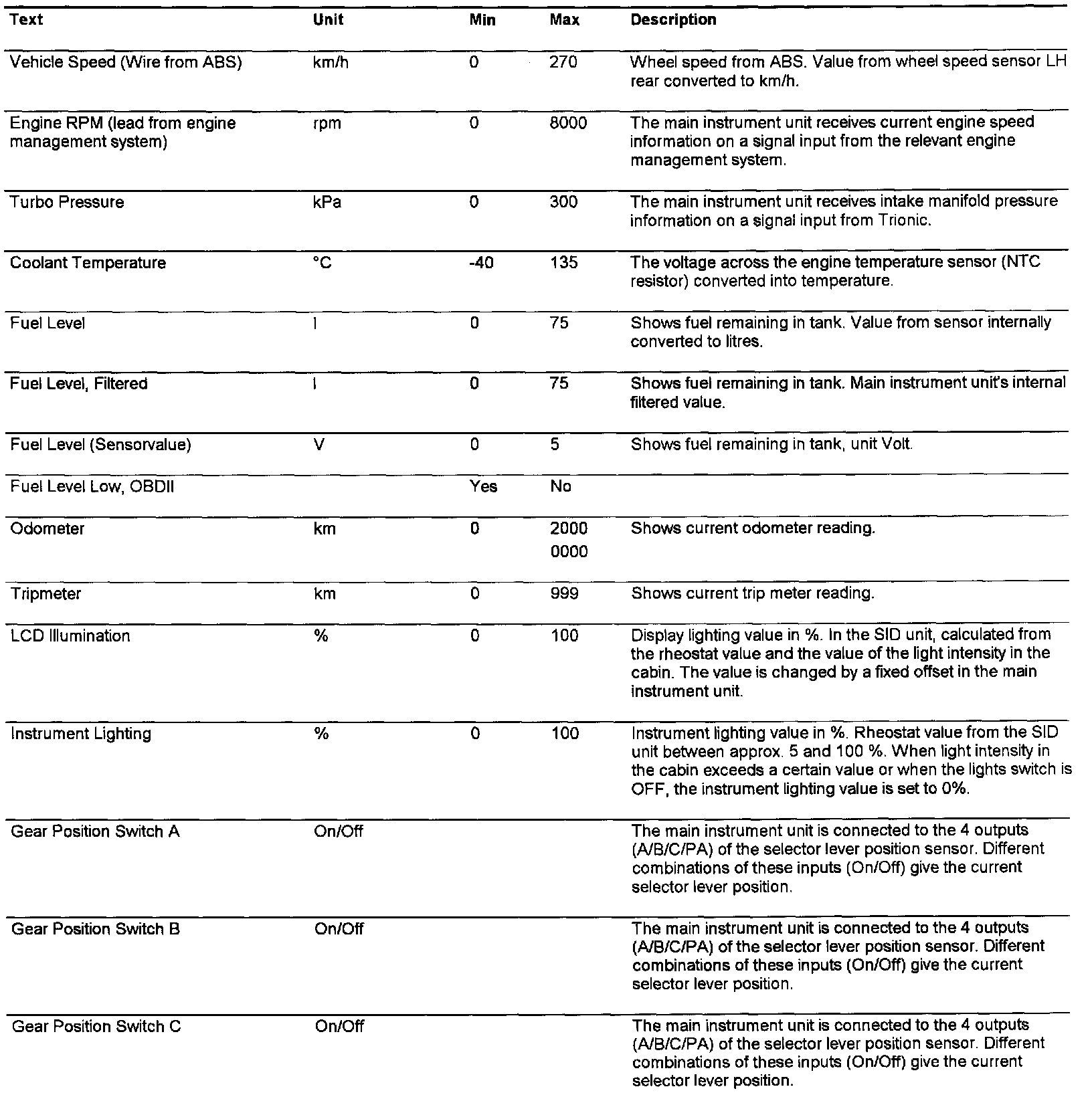

Menu "Read Values":

Menu "Activate"


NOTE: When a system function is activated with the diagnostic tool, the control module executes a command that is not functionally normal. In activating mode, the diagnostic tool controls the control module, for which reason the activation command should be used with care. An activated function is always reset after exiting activation mode and another selection is made in the diagnostic tool's menu.

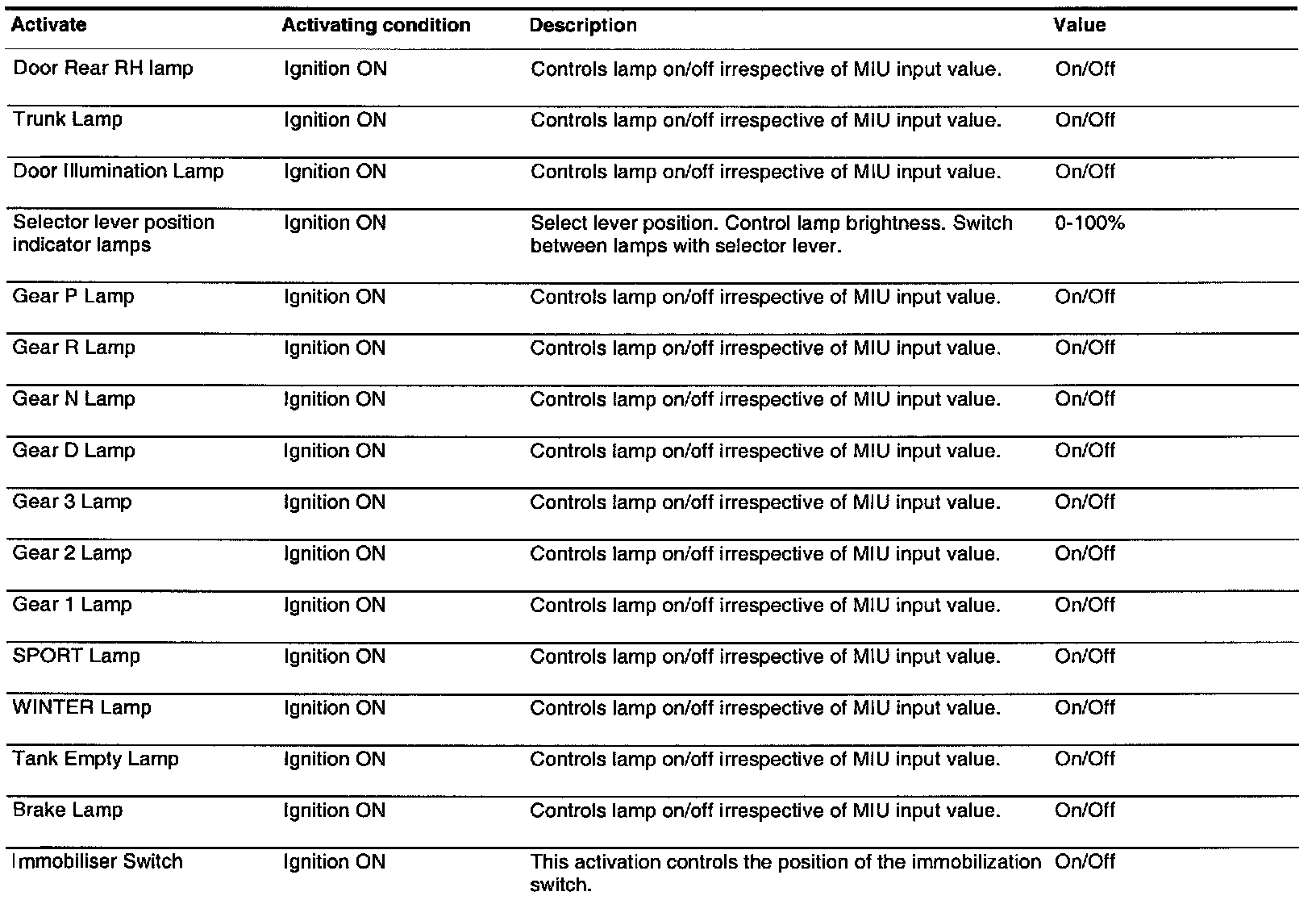

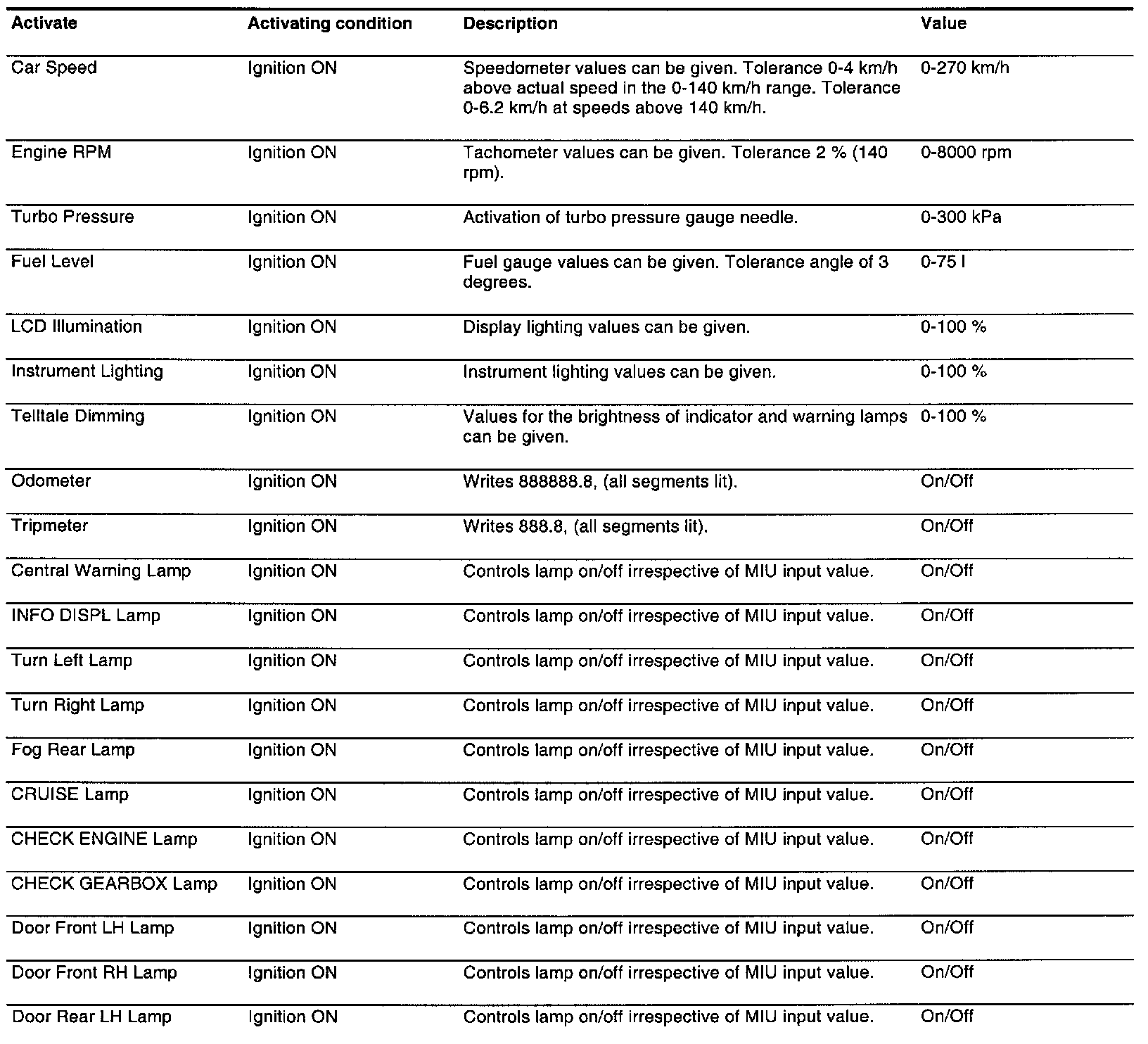

Menu "Activate":

Menu "System Information"

Text Function

Part number Shows Saab's X-digit part number for the control module.
Control module number Shows the supplier's X-digit part number for the control module.
Software number Shows the supplier's X-digit part number for the software.
Programming date Shows the date when the MIU was EOL-programmed.


Menu "Adjustment"

Diagnostic tool Function
Speedometer
Vehicle Speed Night Panel
Fuel Gauge
Fuel gauge, Night Panel
Fuel Consumption Factor
Display lighting level
Temperature Gauge
Coolant Temperature Night Panel
Turbo pressure gauge
Turbo pressure gauge, Night Panel
Engine RPM Night Panel

Menu "Programming"

Diagnostic tool Function
Speedometer
