Sport Indicator Lamp

SPORT Indicator Lamp:

Fault symptoms
SPORT indicator lamp not working.

Conditions
The SPORT function should work in TCM. If it does not work, see Automatic transmission, Testing and Inspection, Fault diagnosis, diagnostic trouble codes or Fault diagnosis, fault symptoms.

Diagnostic help
The SPORT indicator lamp can be activated with the diagnostic tool.

Contact TCM.
- Select "Activate"
- Select "SPORT lamp"

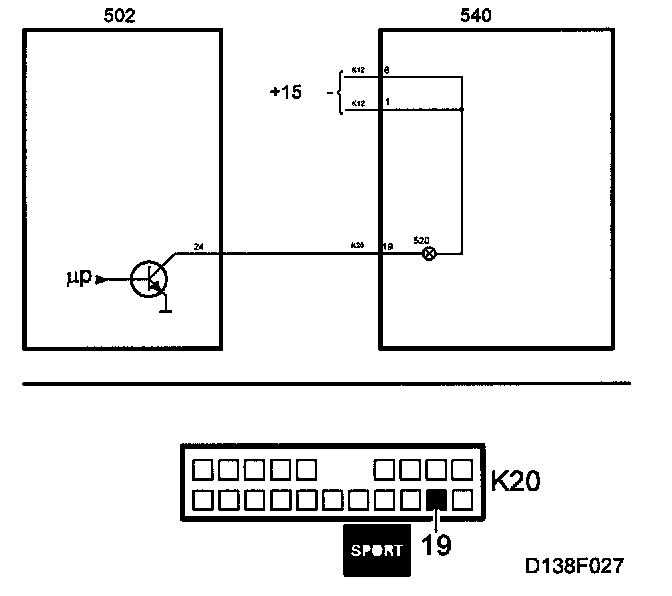

Check the wiring
Jiggle the wiring harness at several points and in different directions to reveal intermittent breaks and short circuits in the various leads. Observe the multimeter, test lamp or diagnostic instrument while carrying out this check.
