Check Gearbox Warning Lamp

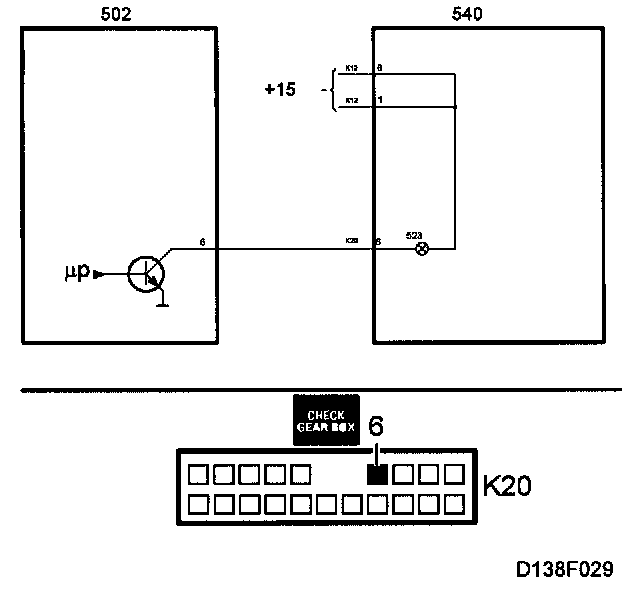

CHECK GEARBOX Warning Lamp:

Fault symptoms
The CHECK GEARBOX warning lamp is inoperative.

Diagnostic help
The warning lamp can be activated with the diagnostic tool.

Contact the TCM.
- Select "Activate"
- Select "CHECK GEARBOX lamp"

Check the Wiring harness
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic tool during the test.
