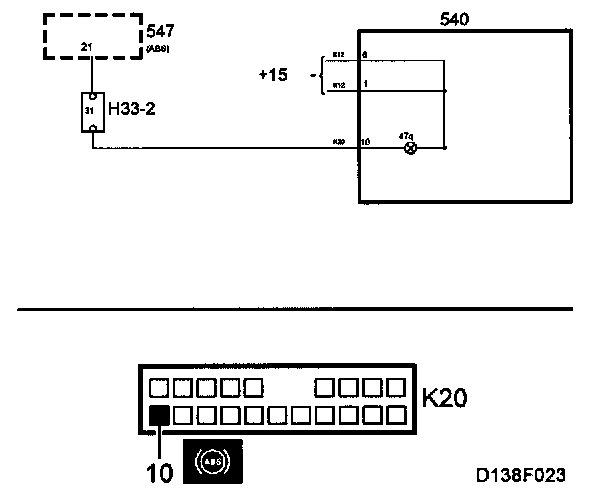

ABS Warning Lamp

ABS Warning Lamp:

Fault symptoms
The ABS warning lamp is inoperative.

Diagnostic help
The ABS warning lamp can be turned on and off from the ABS control module by means of a diagnostic tool activation command.

Check the wiring harness
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic tool during the test.
