Odometer: Service and Repair

Replacement Of Trip Meter





To Remove

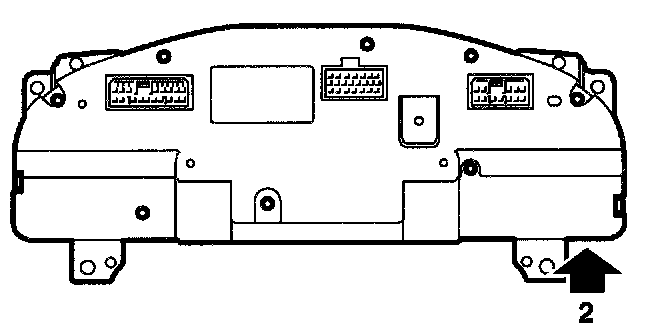

1 Remove the electronic unit.

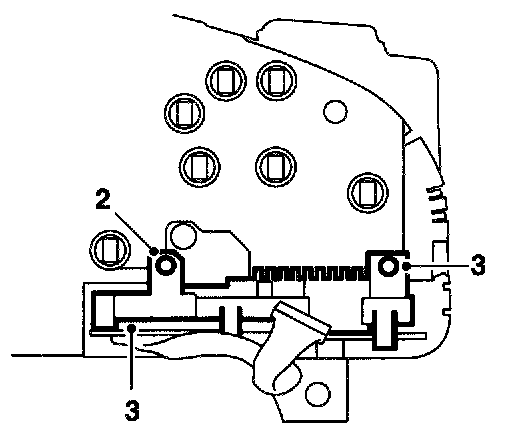

2 Remove the trip meter, two screws.
3 Lift out the trip meter.





To Fit

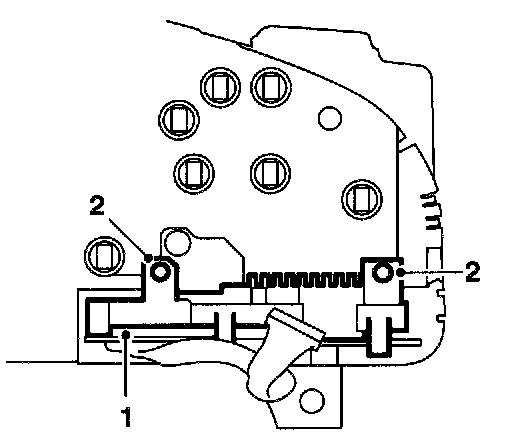

1 Fit the trip meter, two screws.
2 Fit the electronic unit.





Replacement Of Lamp Bulb In Trip Meter

1 Remove the main instrument unit.
2 Change the bulb.
3 Fit the main instrument unit.
