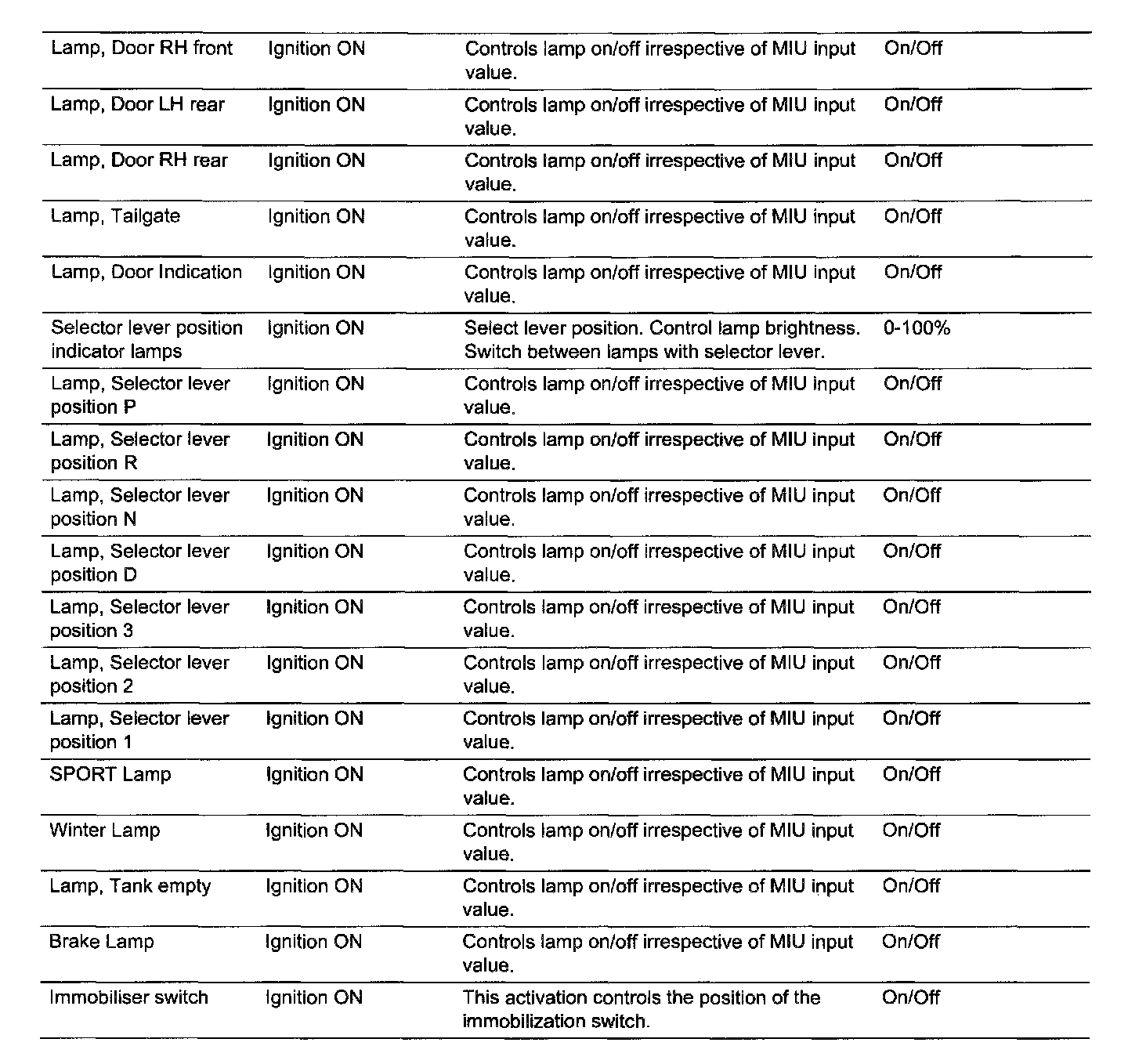

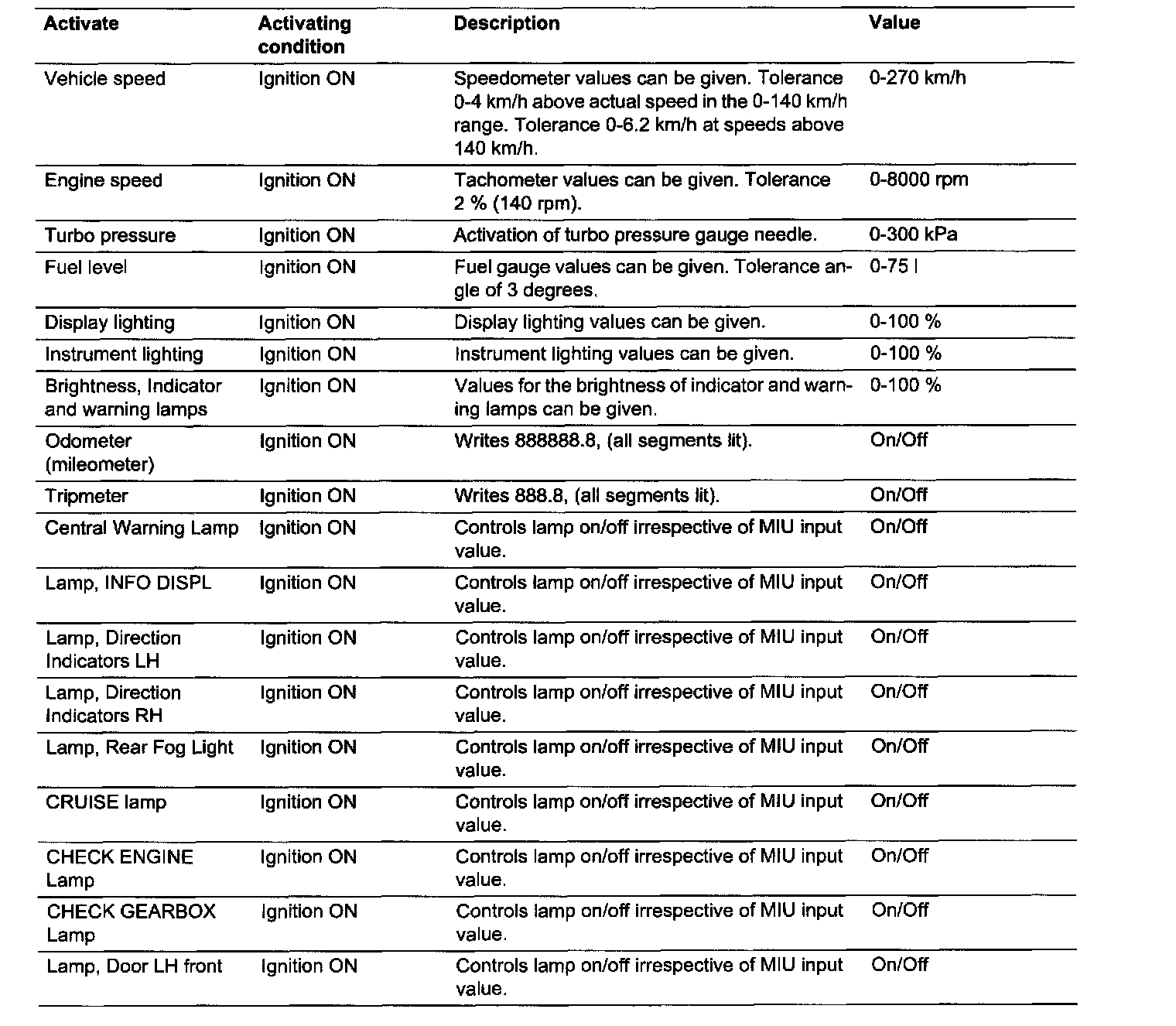

Menu "Activate"











Menu "Activate"

NOTE: When a system function is activated with the diagnostic tool, the control module executes a command that is not functionally normal. In activating mode, the diagnostic tool controls the control module, for which reason the activation command should be used with care. An activated function is always reset after exiting activation mode and another selection is made in the diagnostic tool's menu.
