Electronic Unit

Electronic Unit

To remove







1 Remove the main instrument unit.

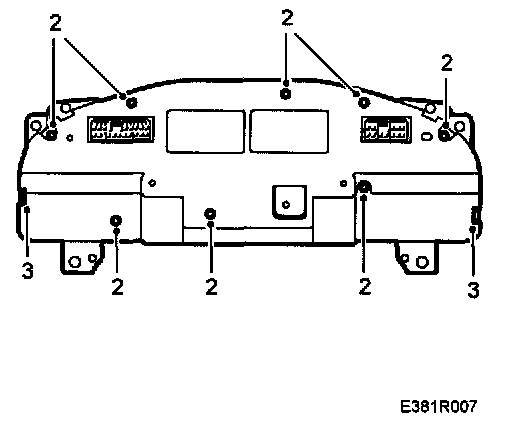

2 Remove the eight screws holding the cover in place. Note the positions of the four long and four short screws.
3 Release the holder (two clips) for the cover and remove the cover.

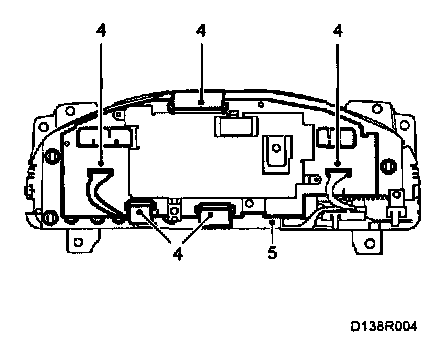

4 Unplug the connector and the contact foils.







5 Remove the electronic unit.

To fit







1 Fit the electronic unit.

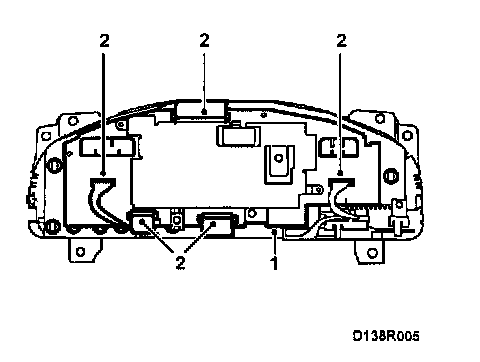

2 Plug in the toils and the connector.


NOTE: Make sure no cables are pinched.


3 Fit the electronic unit.

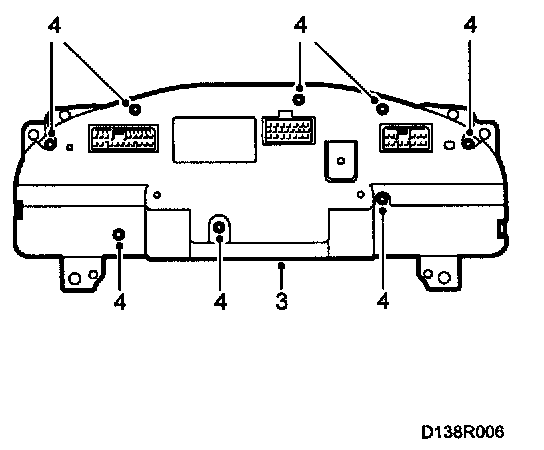

4 Fit the cover over the electronic unit, eight screws.
5 Fit the main instrument unit
