Main Instrument Panel Connector

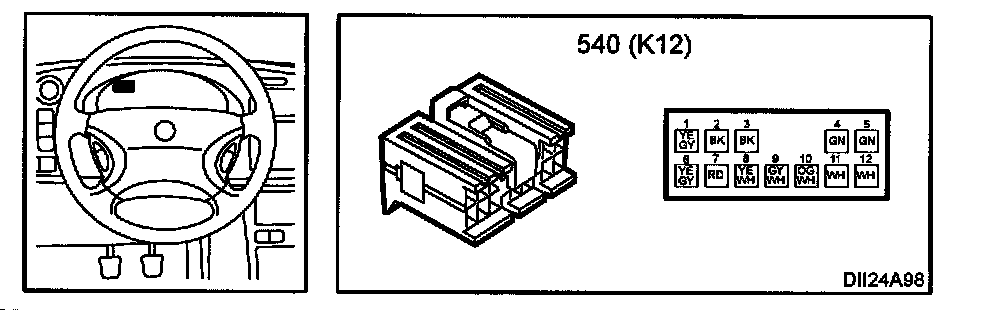

Main instrument unit (K12)

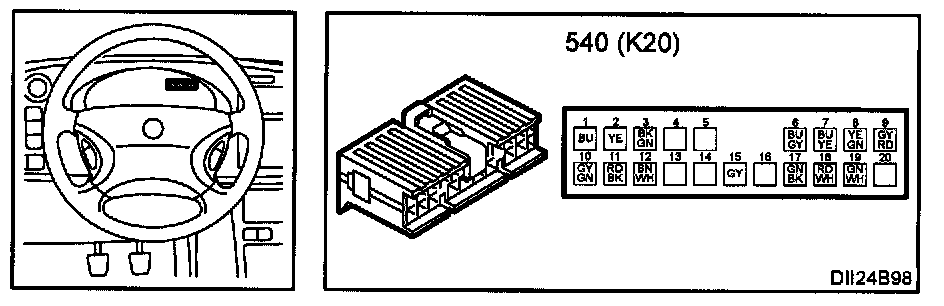

Main instrument unit (K20)

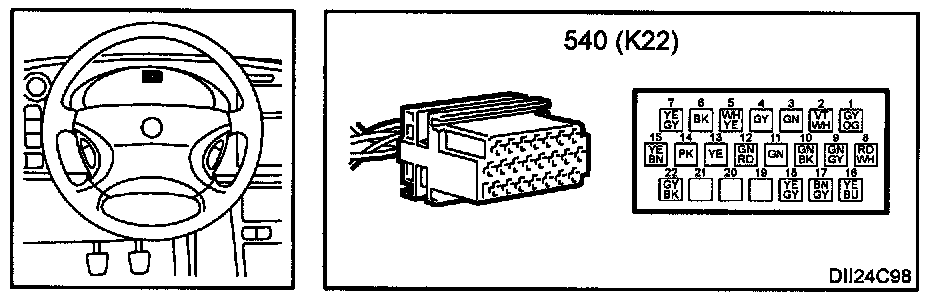

Main instrument unit (K22)
