Adjustment of Fuel Gauge Night Panel

Adjustment Of Fuel Gauge, Night Panel

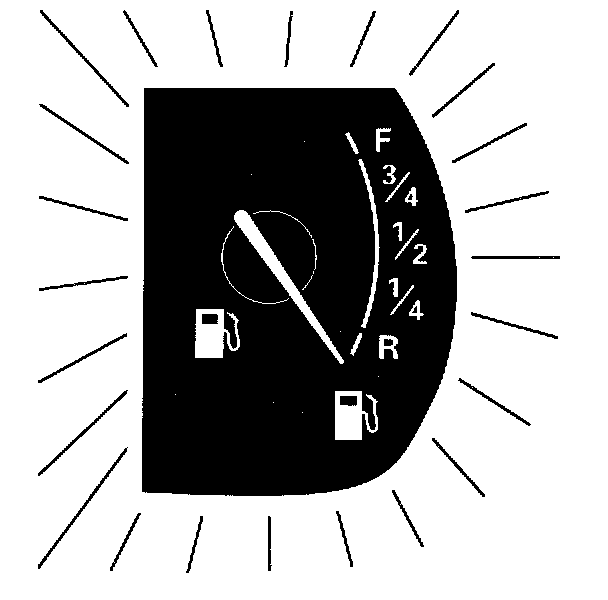

The SID's Night Panel function turns oft the lighting for the fuel gauge during normal driving. Should the fuel in the tank drop below a given level, the fuel gauge lighting will be turned on. By means of this command it is possible to change the level of fuel at which the main instrument unit turns on the lighting for the fuel gauge when Night Panel is activated. The default fuel level set at the factory is 15 litres.
Adjustment can be checked afterwards by activating Night Panel with the diagnostic tool.
