Cntrl Module In/Outputs, Bus, Power Supply, Ground & Trionic T7

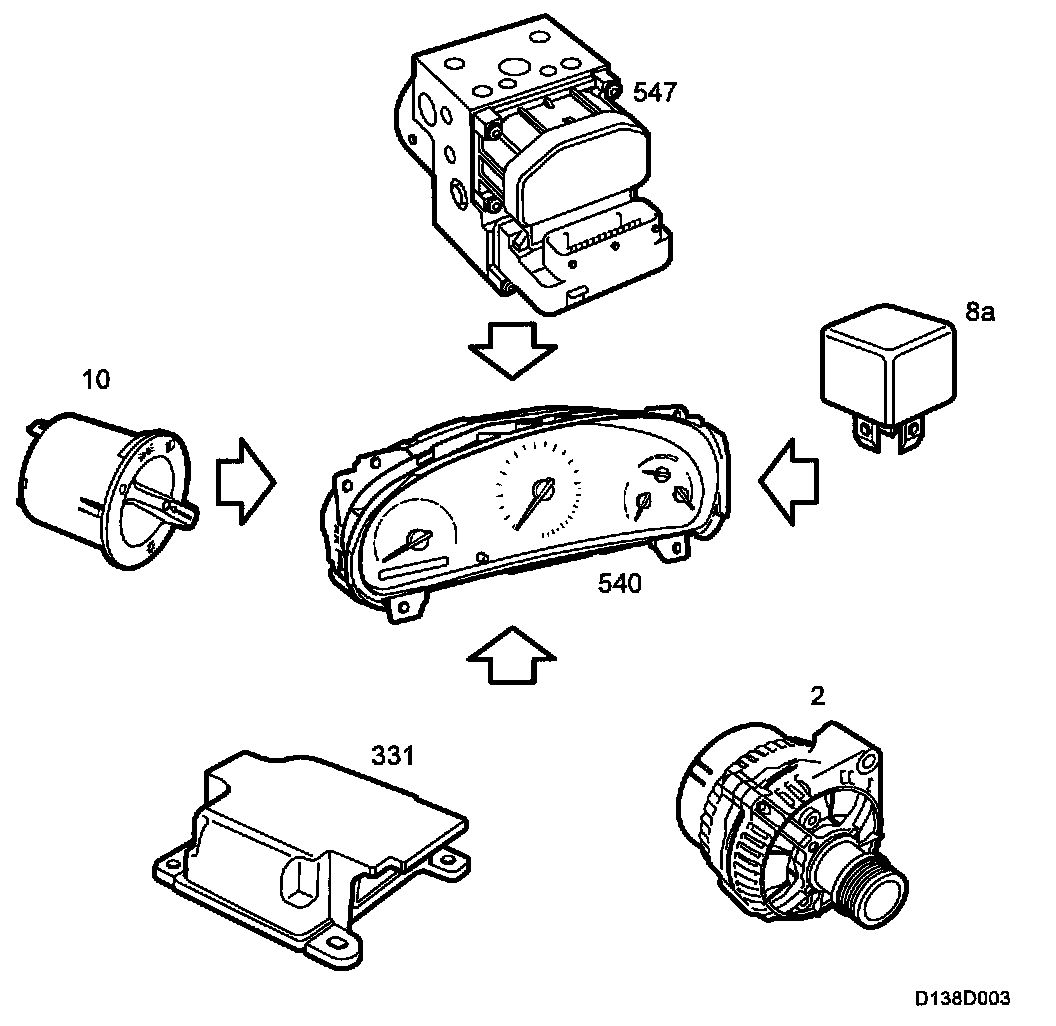

Control Module Inputs

Control Module Inputs, Trionic T7:

- Battery voltage (+30 circuit) (1)
- Battery voltage (+15 circuit) (20)
- Ground connection (G33S)
- Engine oil pressure warning lamp from the oil pressure sensor (44)
- Brake fluid level warning lamp from the brake fluid level sensor (42)
- Handbrake warning lamp (43)
- Fuel level from the fuel level sensor (46)
- Low fuel level indicator lamp (46)







- Vehicle speed signal from the ABS control module (547)
- ABS warning lamp (ANTI LOCK) from the ABS control module (547)
- AIRBAG warning lamp from the airbag control module (331)
- Central warning lamp (Airbag 2) (331)
- Charging warning lamp, generator (2)
- Lights-on indicator lamp from the lights switch (10)
- Main beam indicator lamp from the main beam relay (8a)

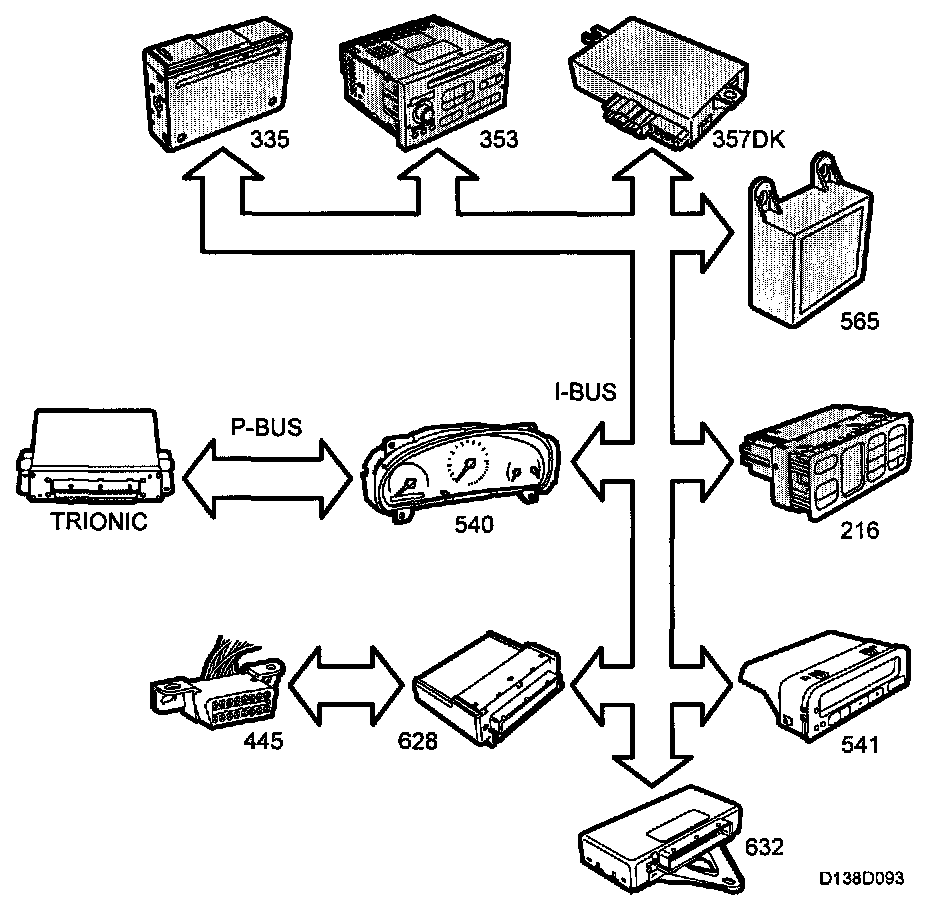

Control Module Inputs, Bus, Trionic T7

Control Module Inputs, Bus, Trionic T7:

- INFO DISPL lamp from SID (541)
- Rheostat value from SID (541)
- Night Panel rheostat from SID (541)
- Night Panel from SID (541)
- Display lighting from SID (541)
- Light intensity in cabin from SID (541)
- Drivers door from TWICE (632)
- Passenger door from TWICE (632)
- Rear left door from TWICE (632)
- Rear right door from TWICE (632)
- Boot lid from TWICE (632)
- Steering wheel location from TWICE (632).
- LH direction indicators from DICE (628)
- RH direction indicators from DICE (628)
- Rear fog lights from DICE (628)
- Diagnostics communication (445)
- CHECK ENGINE lamp from T7 (430b/589b)
- SHIFT UP lamp from T7 (430b/589b)
- TURBO gauge from T7 (430b/589b)
- CRUISE lamp from T7 (430b/589b)
- Fuel Consumed Since Start from T7 (430b/589b)
- Engine speed from T7 (430b/589b)
- Coolant temperature from T7 (430b/589b)

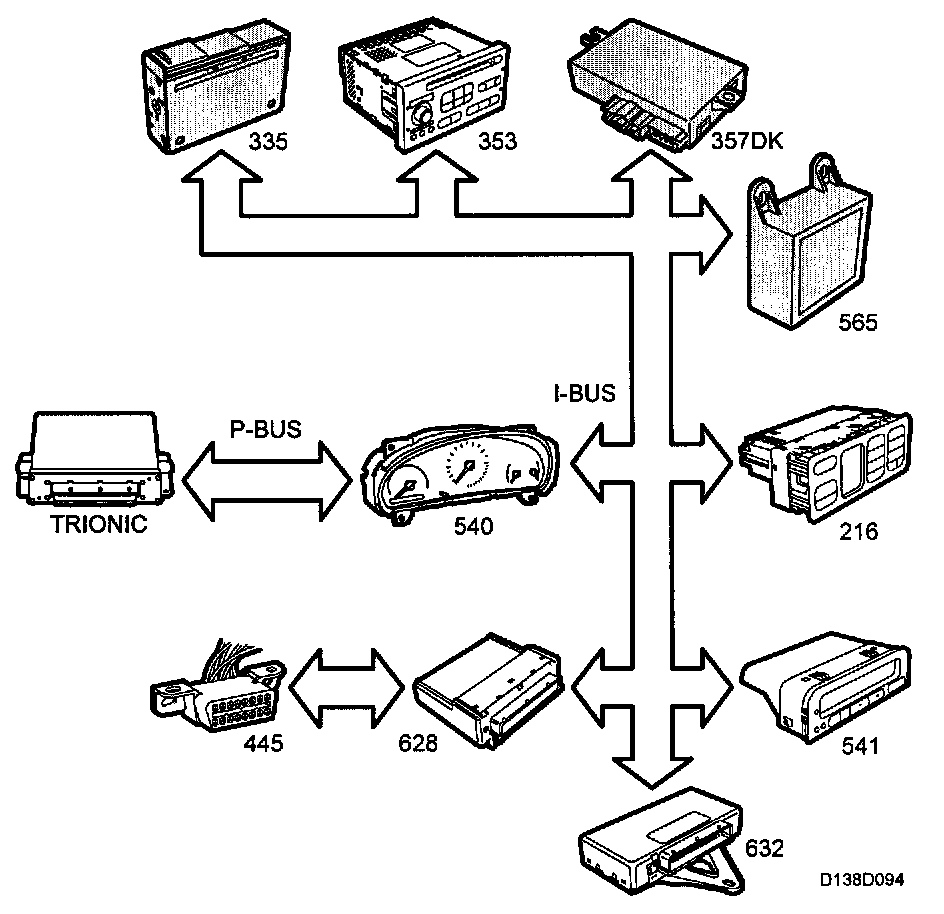

Control Module Outputs, Bus, Trionic T7

Control Module Outputs, Bus, Trionic T7:

- Vehicle speed
- Sound used by SID (541)
- TIGHTEN FUEL FILLER CAP used by SID (541)
- Fuel Consumed Since Start used by SID (541)
- Fuel level used by SID (541), ACC (216), T7 (430b/589b)
- Odometer reading used by SID (541)
- AC relay used by DICE (628)
- Identification number used by TWICE (632)
- Diagnostics communication (445)

Trionic T7 Control Module

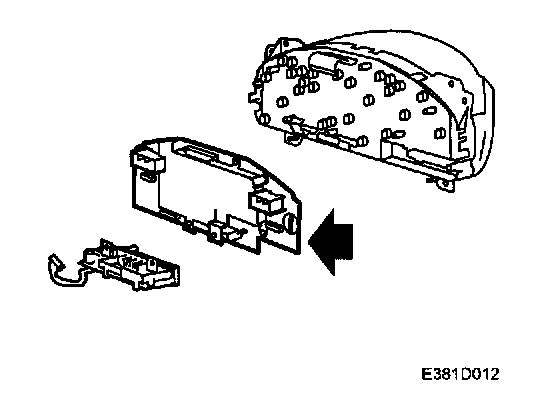

The main instrument unit consists of three replaceable main components:
- Instrument unit
- Control module (electronic unit MIU)
- Odometer display

The control module is integrated in the main instrument unit and has two connectors, one 12-pin (K12) and one 20-pin (K20). The control module receives information from its own sensors and switches as well as from other systems. It processes the information and uses it to control instruments and lamps. Certain information is put on the bus.

When a fault occurs, the control module stores the diagnostic trouble code. In case of replacement, a control module for that specific car must be ordered and its programming will then be carried out at Saab Automobile. The odometer reading stored in the old control module and shown on the display must be programmed into the new control module.

The instrument unit contains gauges and meters controlled by its own control module on the basis of information received from other systems as well as its own sensors. Warning and indicator lamps which are controlled by their own sensors/switches as well as control modules from other systems. All the warning lamps, indicator lamps and light bulbs (not LEDs) are replaceable.

The odometer and trip meter display is a unit with two digital counters, a six-digit counter for the odometer and a four-digit counter for the trip meter.

The control module stores the distance driven and displays it. There is a lamp in the display which is replaceable.

Diagnostics
If an internal fault occurs in the main instrument units control module, diagnostic trouble code B1605 is set.

Ground, Trionic T7

Ground:

Ground

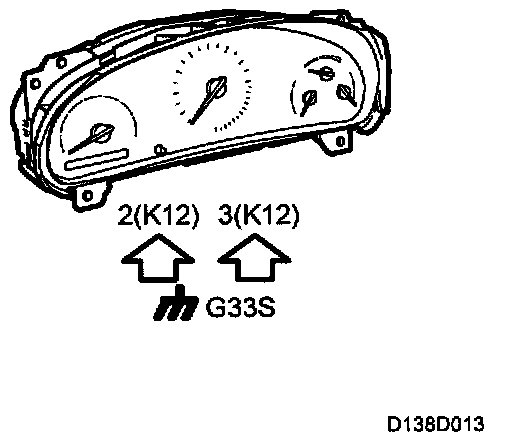

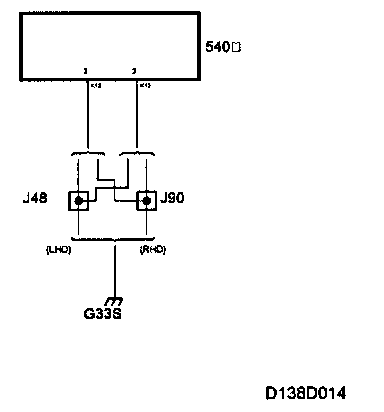

The main instrument unit is grounded through pin 2 (K12) and pin 3 (K12) to grounding point G33S. The grounding points are internally connected.

Diagnostics
If there is no ground connection, warning lamps, etc. which are grounded outside the main instrument unit (such as the ABS warning lamp) will still work. Others will not.

The function has no diagnostics.
