Radiator Fan System, Petrol Engine, Trionic T7 (2-Speed)

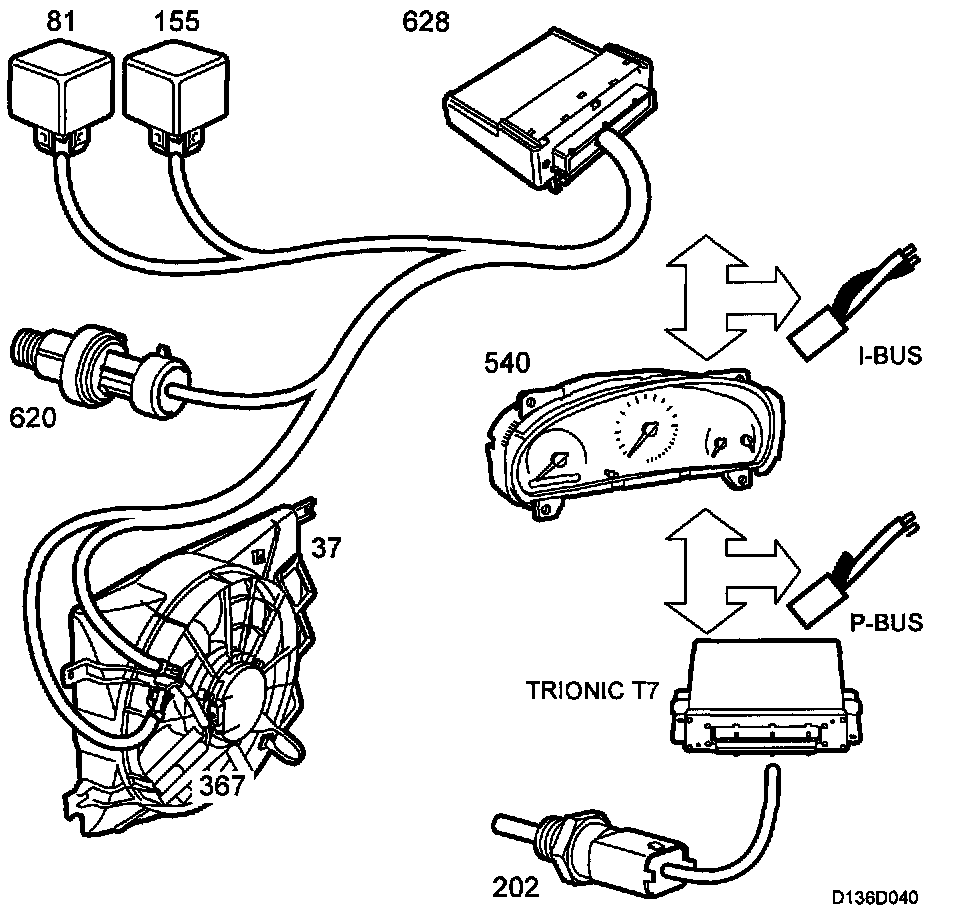

System Overview, Radiator Fan System, Petrol Engine, Trionic T7 (2-Speed)


- Control module, DICE (628)
- Relay, 2-speed radiator fan, low speed (155)
- Relay, 2-speed radiator fan, high-speed (81)
- Motor, radiator fan (37)
- Engine management system, petrol (Trionic T7)
- Resistor, 2-speed radiator fan (367)
- Main Instrument Unit (540d)
- Engine coolant temperature sensor (202)
- Pressure sensor, A/C (620)
