Radiator Fan System, Petrol Engine, Trionic T7 (1-Speed)

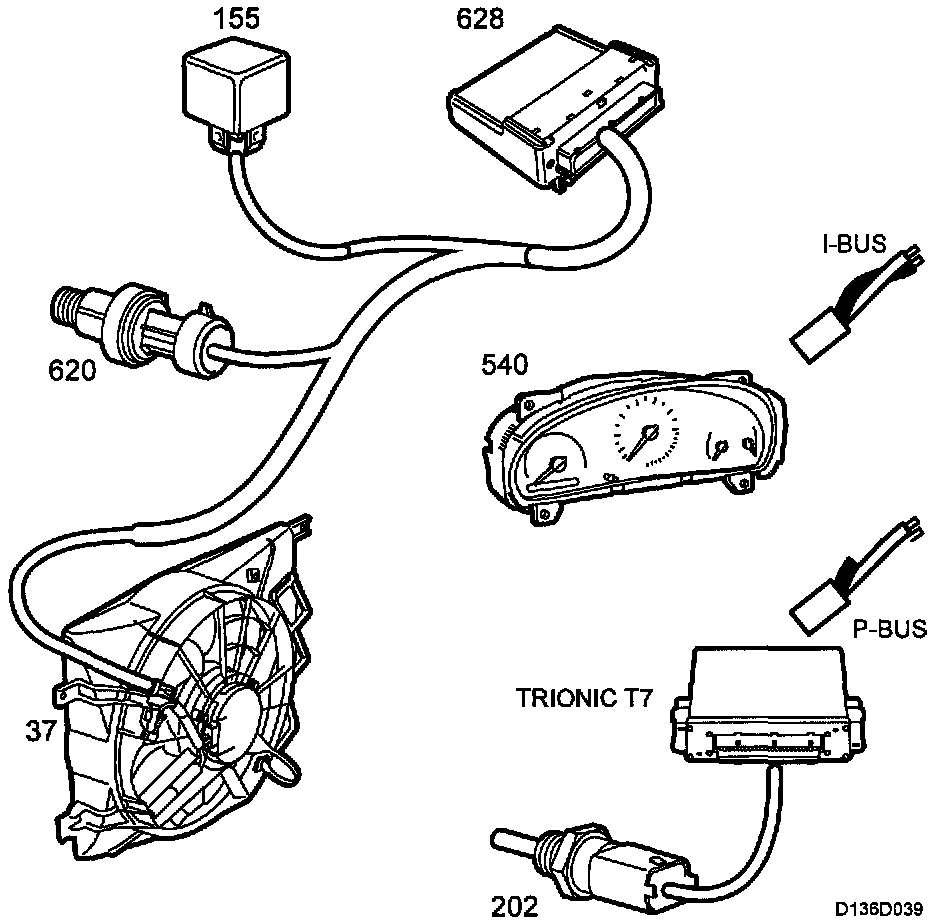

System Overview, Radiator Fan System, Petrol Engine, Trionic T7 (1-Speed)


- Control module, DICE (628)
- Relay, radiator fan (155)
- Motor, radiator fan (37)
- Engine management system, petrol (430b)
- Main Instrument Unit (540d)
- Engine coolant temperature sensor (202)
- Pressure sensor, A/C (620)
