Intermittent Wiper Operation, Windscreen

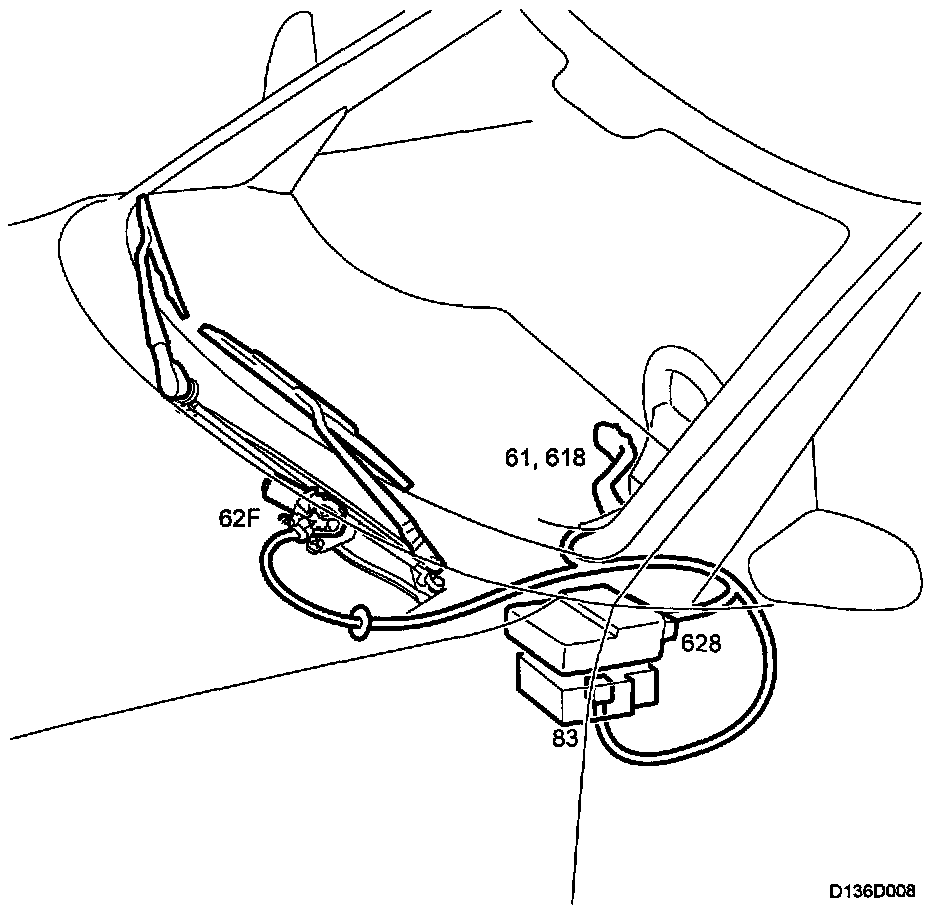

System Overview:
- Control module, DICE (628)
- Stalk switch, windscreen wipers (61)
- Relay, intermittent wiper (83)
- Rheostat, intermittent wiper (618)
- Motor, windscreen wipers (62F)

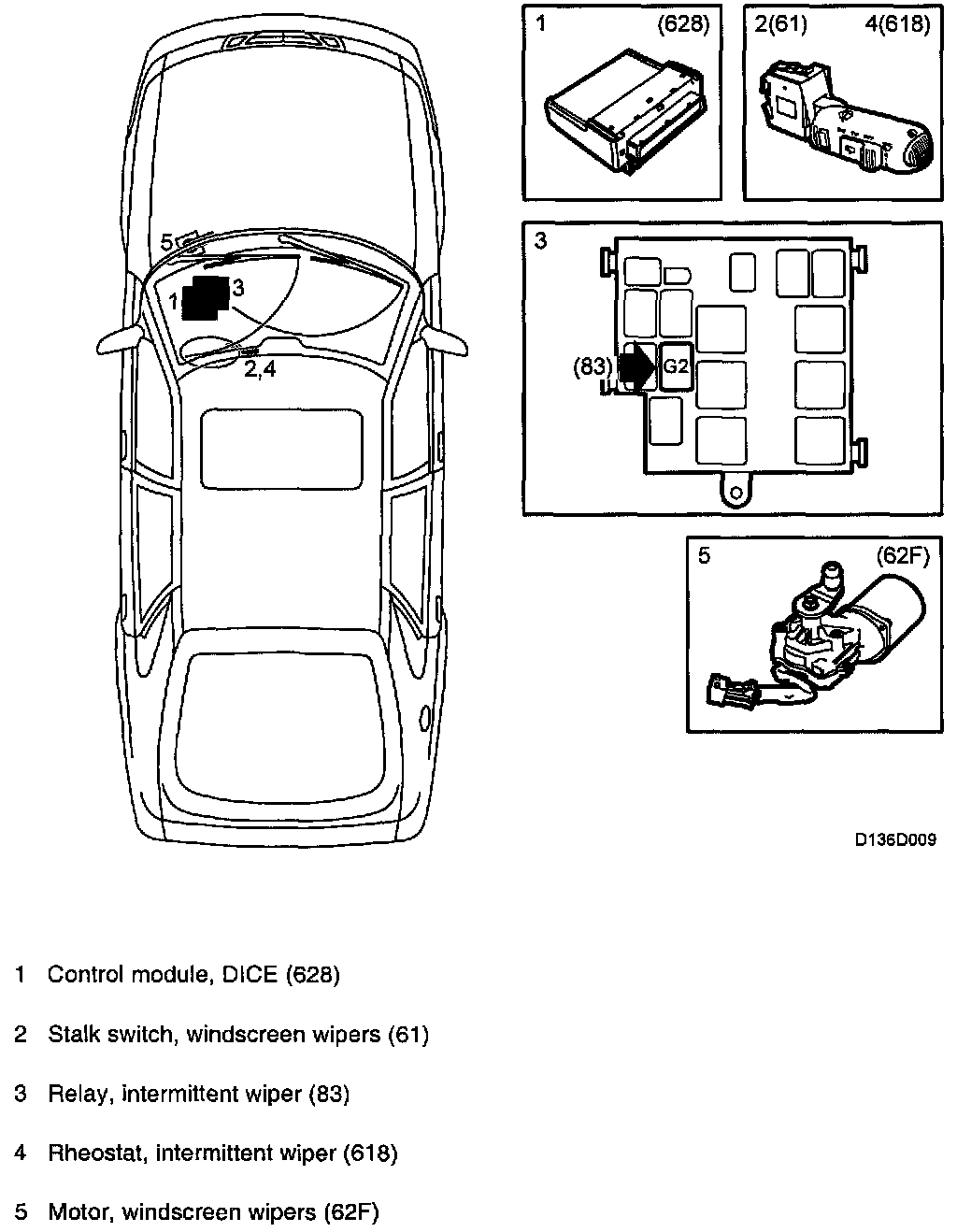

Main Components:
- Control module, DICE (628)
- Stalk switch, windscreen wipers (61)
- Relay, intermittent wiper (83)
- Rheostat, intermittent wiper (618)
- Motor, windscreen wipers (62F)
