A/C System, Petrol Engine, Trionic T7 (Car With ACC)

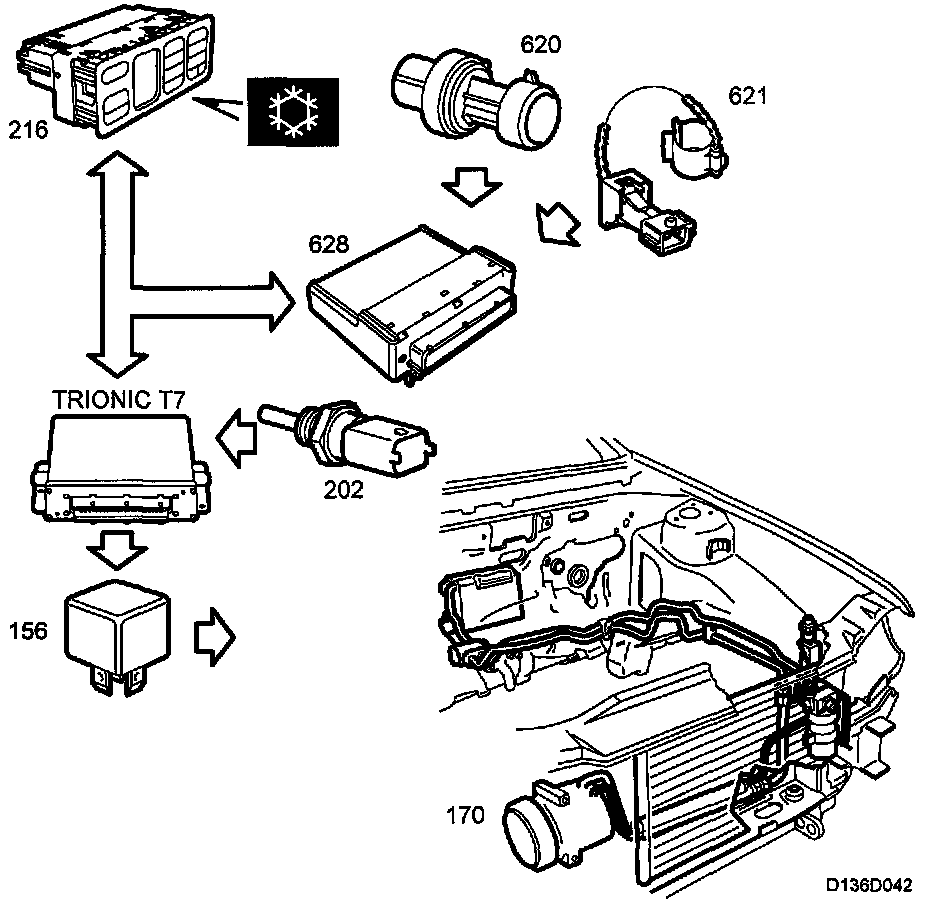

System Overview, A/C System, Petrol Engine, Trionic T7 (Car With ACC)


- Control module, DICE (628)
- Control module, ACC (216)
- Main Instrument Unit (540d)
- Temperature sensor, A/C evaporator (621)
- Pressure sensor, A/C (620)
- Relay, A/C compressor (156)
- Compressor, A/C (170)
- Engine management system, petrol (Trionic T7)
- Engine coolant temperature sensor (202)
