Outputs/ Bus/ Bus (Trionic T7)

Control module outputs

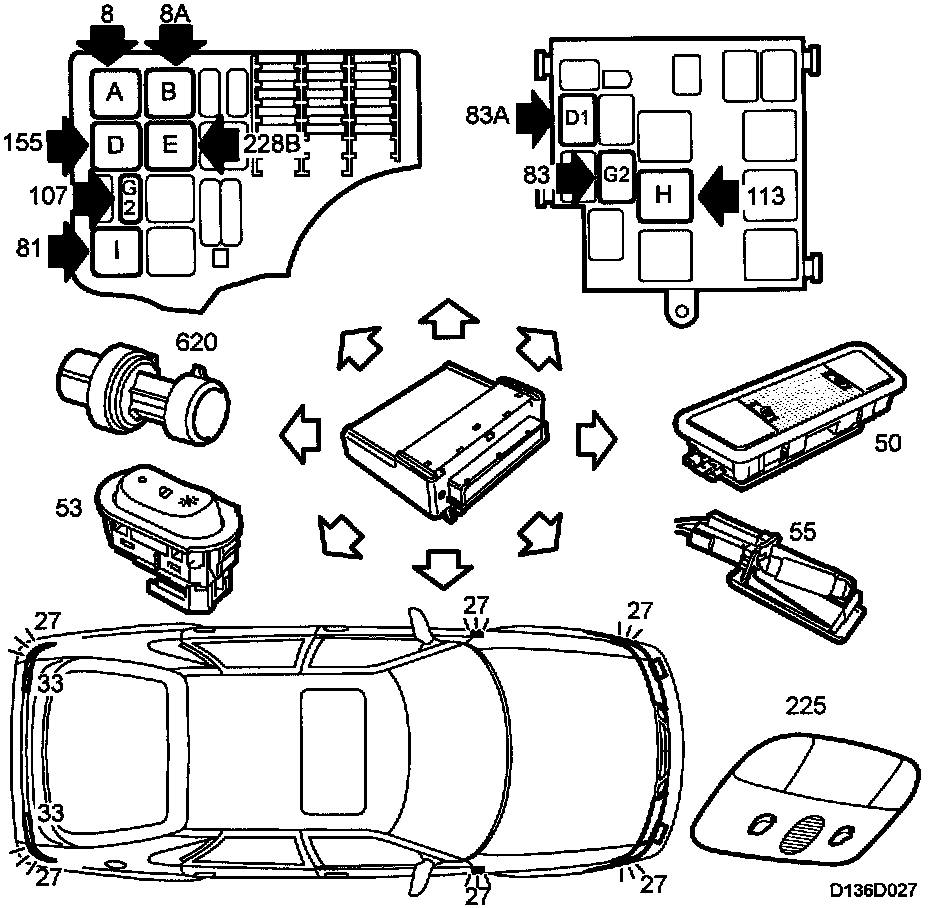

Control Module Outputs:

- Dipped beam relay (8)
- Main beam relay (8a)
- Front fog lights relay (107)
- Rear fog lights lamp (33)
- Direction indicators left/right, lamps (27)
- Interior lighting, light switch (53)
- Reading lamp (225)
- Luggage compartment lamp (55)
- Instrument and control lighting, lamps
- Intermittent windscreen wiper operation, relay (83)
- Intermittent rear window wiper operation, relay (83a)
- Electrically heated rear window and door mirrors, relay (113)
- Radiator fan low-speed, relay (155)
- Radiator fan high-speed, relay (81)
- A/C pressure sensor, power supply (620)

Control module outputs, bus

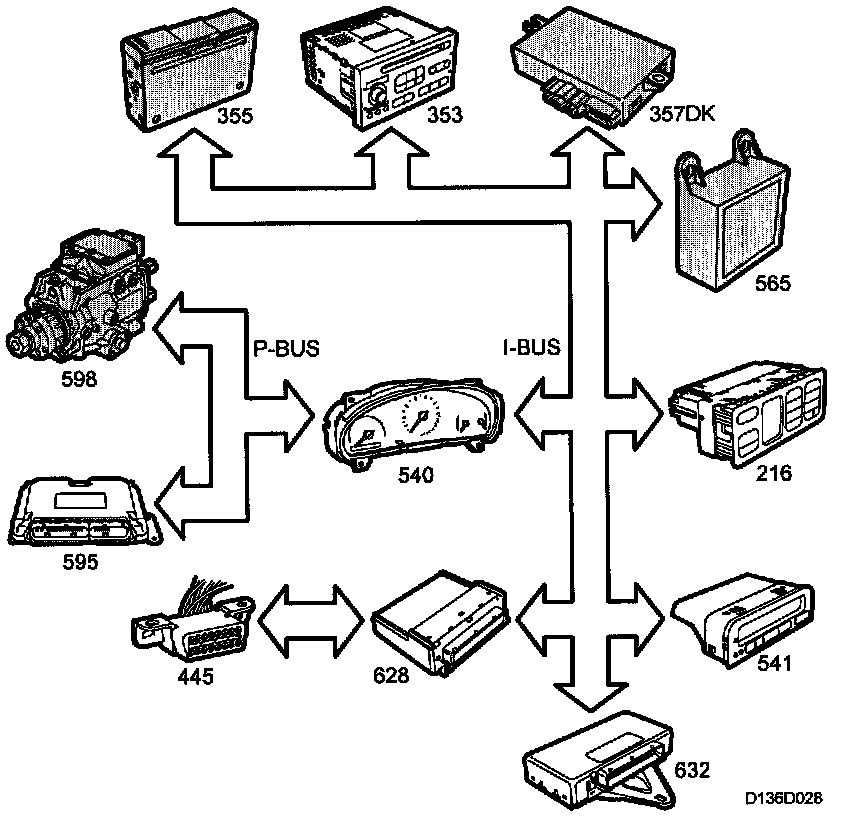

Control Module Outputs, Bus:

- A/C (on/off) used by MIU (540), EDC 15 (595)
- A/C Pressure (bar) used by EDC 15 (595)
- Power consumption (on/off) used by MIU (540)
- Position lights (on/off) used by SID (541)
- Electrically heated rear window (on/off) used by ACC (216)
- Rear fog light defective (yes/no) used by SID (541)
- Direction indicators Left (on/off) used by MIU (540), SID (541)
- Direction indicators Right (on/off) used by MIU (540), SID (541)
- Rear fog lights (on/off) used by MIU (540)
- Sound (acoustic information) used by SID (541)
- Ignition +B (on/off) used by Audio (353), TWICE (632)
- Ignition +15 (on/off) used by TWICE (632)
- Ignition +54 (on/off) used by TWICE (632)
- Ignition +50 (on/off) used by ACC (216), TWICE (632)
- Diagnostics communication
For further descriptions of the control module output information to the bus, see Powertrain Management/Computers and Control Systems/Information Bus
For a further description of fault diagnosis, see Powertrain Management/Computers and Control Systems/Information Bus

Control module outputs, bus (Trionic T7)

Control module outputs, bus (Trionic T7):

- A/C (on/off) used by MIU (540), T7 (430b)
- A/C Pressure (bar) used by T7 (430b)
- Power consumption (on/off) used by MIU (540), T7 (430b)
- Position lights (on/off) used by SID (541)
- Electrically heated rear window (on/off) used by ACC (216)
- Rear fog light defective (yes/no) used by SID (541)
- Direction indicators Left (on/off) used by MIU (540), SID (541)
- Direction indicators Right (on/off) used by MIU (540), SID (541)
- Rear fog lights (on/off) used by MIU (540)
- Sound (acoustic information) used by SID (541)
- Ignition +B (on/off) used by Audio (353), TWICE (632)
- Ignition +15 (on/off) used by TWICE (632)
- Ignition +54 (on/off) used by TWICE (632)
- Ignition +50 (on/off) used by ACC (216), TWICE (632)
- Diagnostics communication
For further descriptions of the control module output information to the bus, see Powertrain Management/Computers and Control Systems/Information Bus
For a further description of fault diagnosis, see Powertrain Management/Computers and Control Systems/Information Bus
