Air Vent, Instrument Plate

Air Vent, Instrument Plate

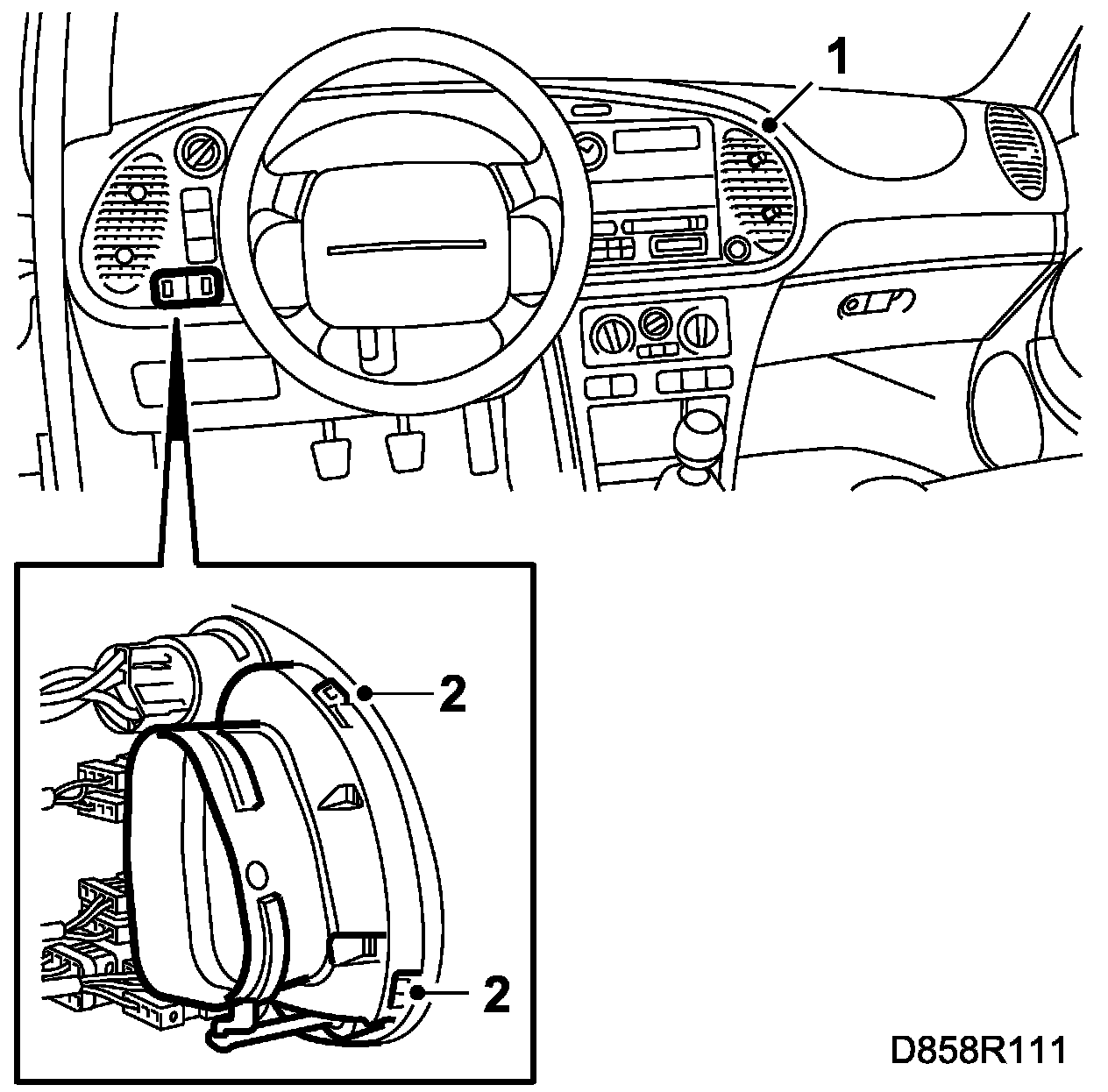

To remove







1. Remove the instrument plate.
2. Release the air vent snap fastener and remove the vent.

To fit







1. Place the new air vent face up on a workbench.
2. Remove the transport lock, making sure no loose components fall out of position.

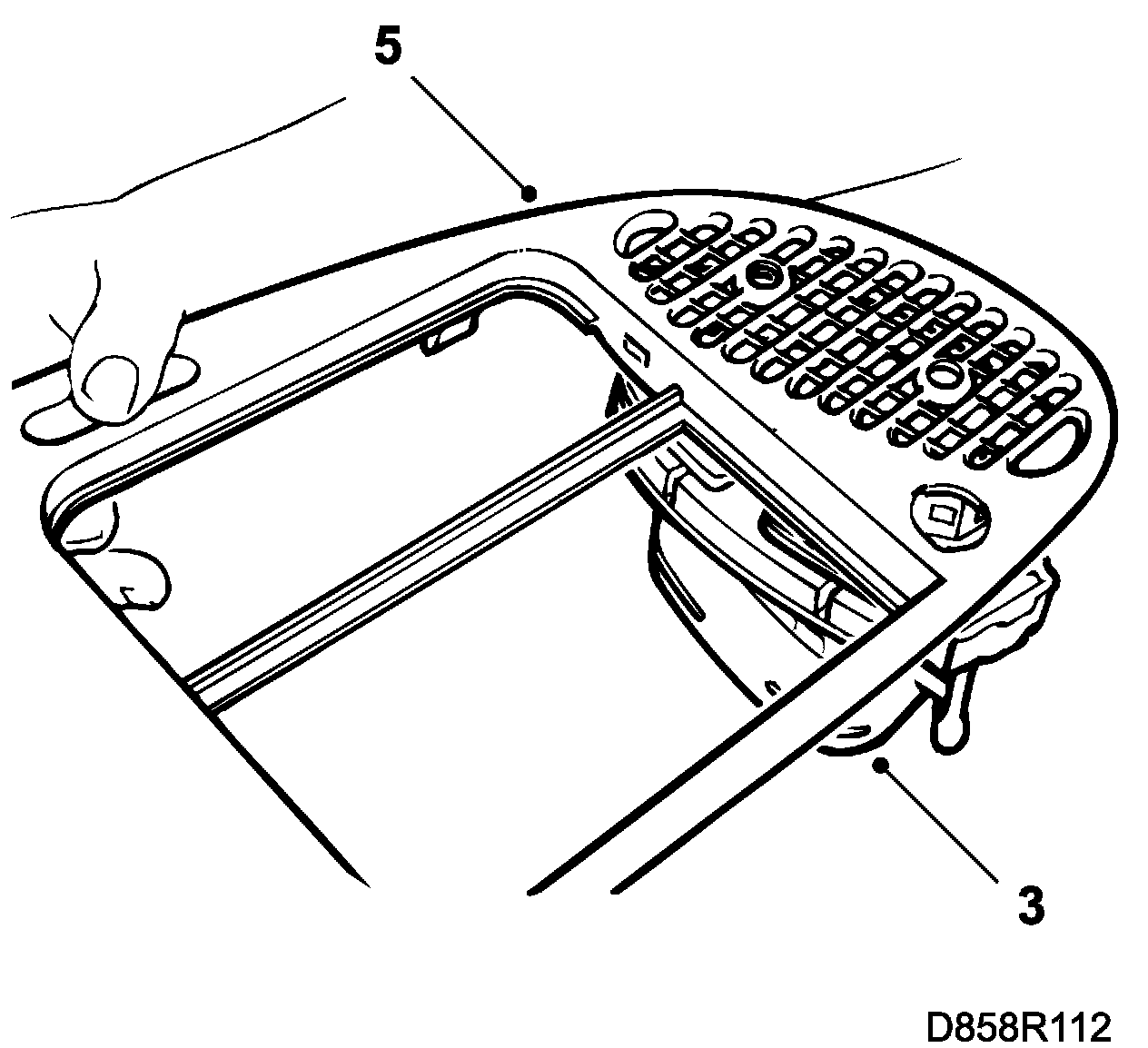

3. Press the instrument plate onto the air vent. Make sure all the snap fasteners engage.
4. Test the air vent control.
5. Fit the instrument plate.
