Cruise Control Indicator Lamp: Testing and Inspection




CRUISE Indicator Lamp:

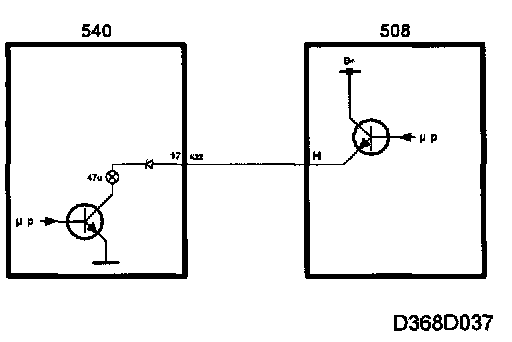

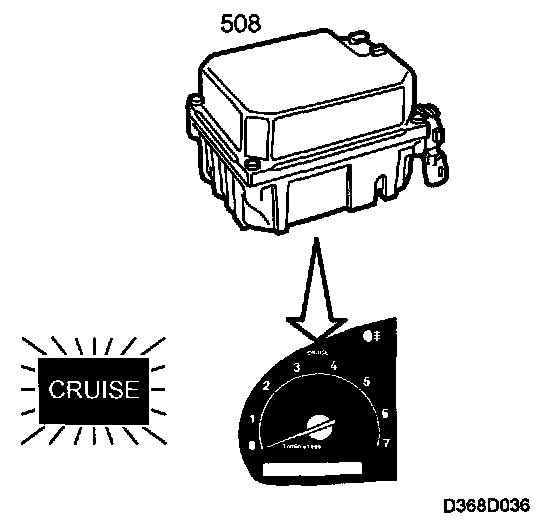

The main instrument unit contains a CRUISE indicator lamp which comes on when the cruise control is engaged. The lamp is supplied with current from control module terminal 8 (H).

The lamp goes out in the CANCEL position as acknowledgement that the cruise control system is in CANCEL mode.

The CRUISE lamp is also used for diagnostics to provide information about the system, see under "Fault diagnosis".
