Removal and Replacement

Cigarette Lighter

To remove







1. Remove the right-hand side section.
2. Unplug the cigarette lighter connector.

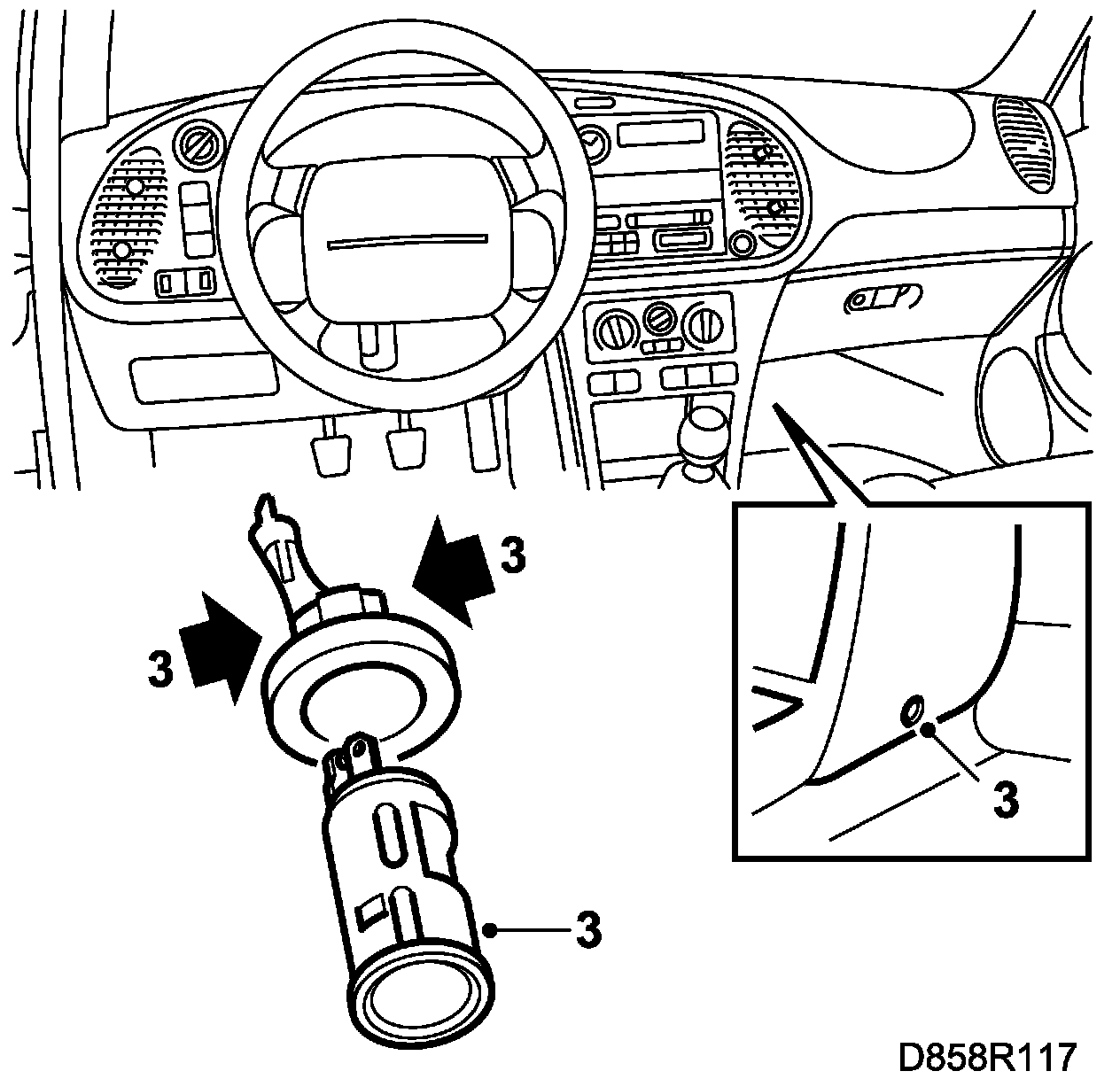

3. Press on the sides of the plastic sleeve as illustrated and press out the metal sleeve from the rear.
4. Press out the plastic sleeve.

To fit

Fit in reverse order.

NOTE: Fit the metal sleeve into the plastic sleeve as illustrated.
