Procedures

To remove







1 Remove the right-hand side section.
2 Unplug the cigarette lighter connector.

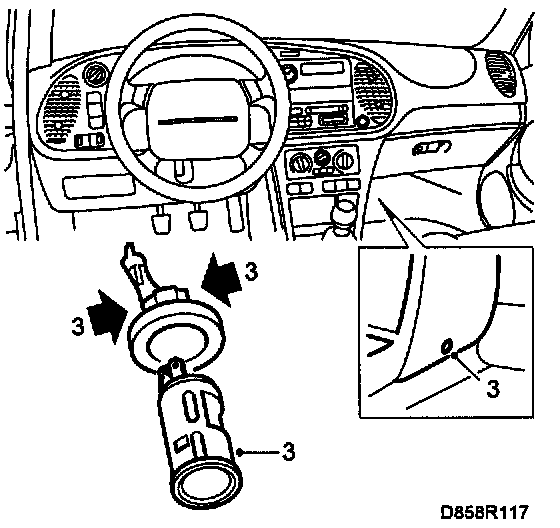

3 Press on the sides of the plastic sleeve as illustrated and press out the metal sleeve from the rear.
4 Press out the plastic sleeve.

To fit
Fit in reverse order.


NOTE: Fit the metal sleeve into the plastic sleeve as illustrated.
