Charge Lamp/Indicator: Testing and Inspection

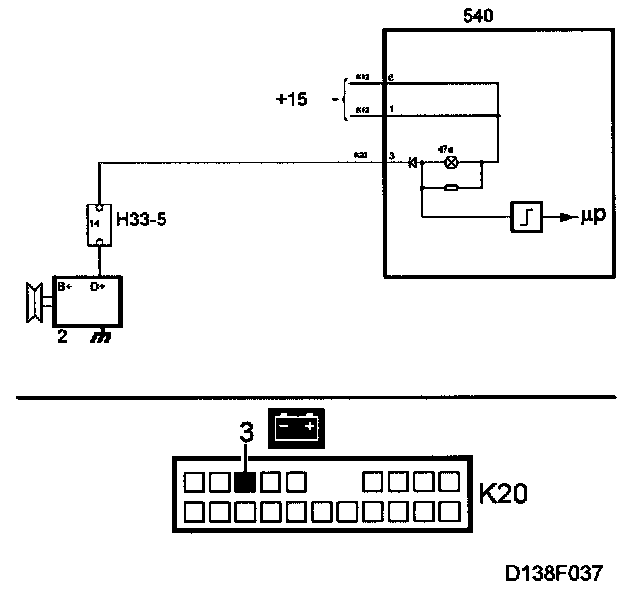

Warning Lamp, Charging:

Fault symptoms
Charging warning lamp inoperative.

Check the wiring harness
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic tool during the test.
