Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Application and ID >> Main Instrument Unit

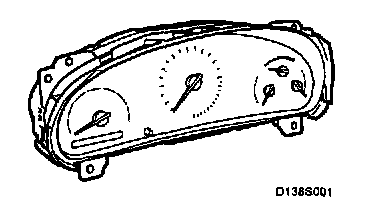

Main Instrument Unit

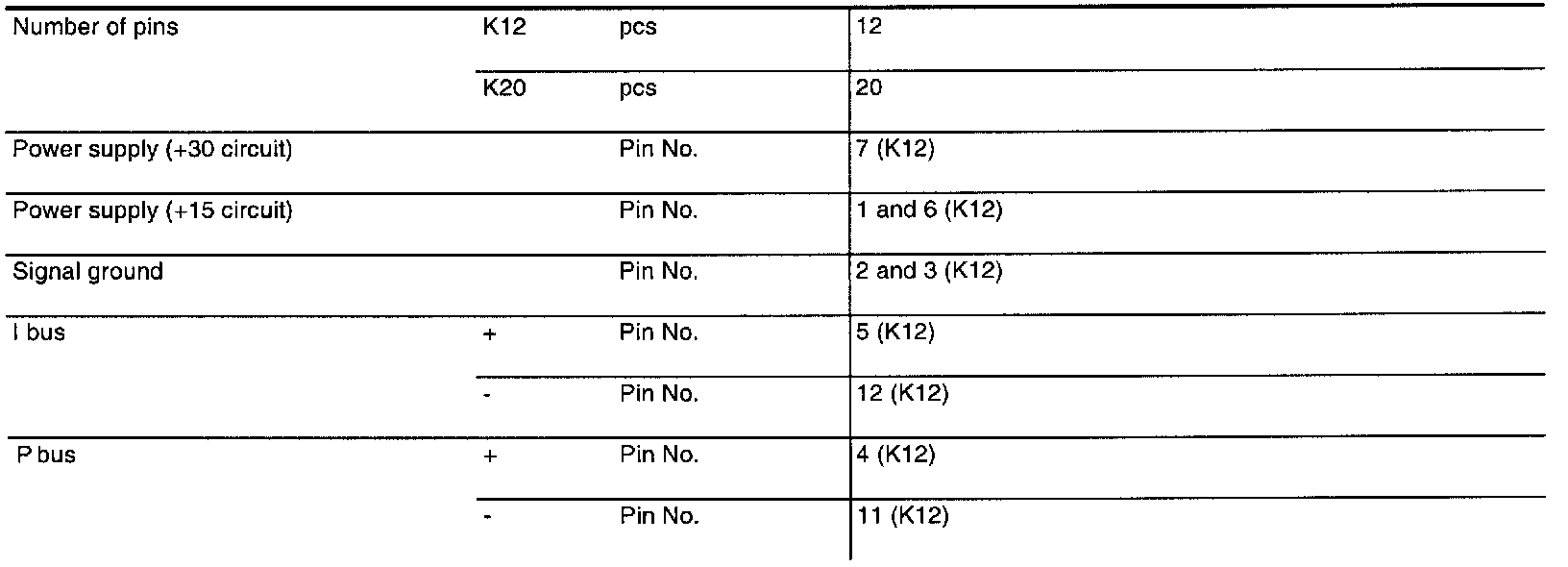

Control Module, Main Instrument Unit:

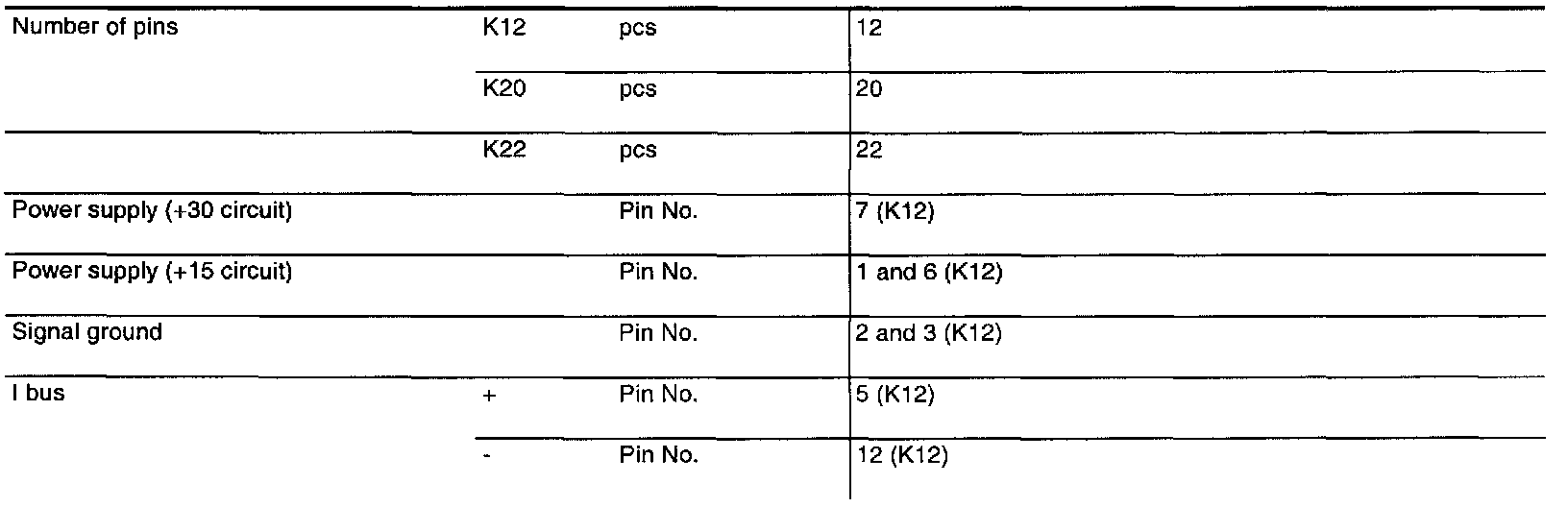

Main Instrument Unit Control Module, Trionic T7:
