Tech 2 Menu, Values, Act., Adj., Program, System Info., ACC

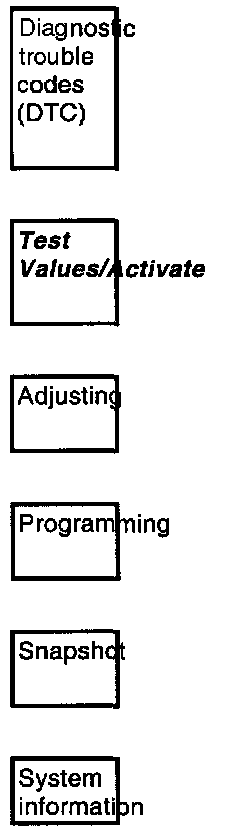

Tech 2 Menu Structure

Tech 2 Menu Structure:

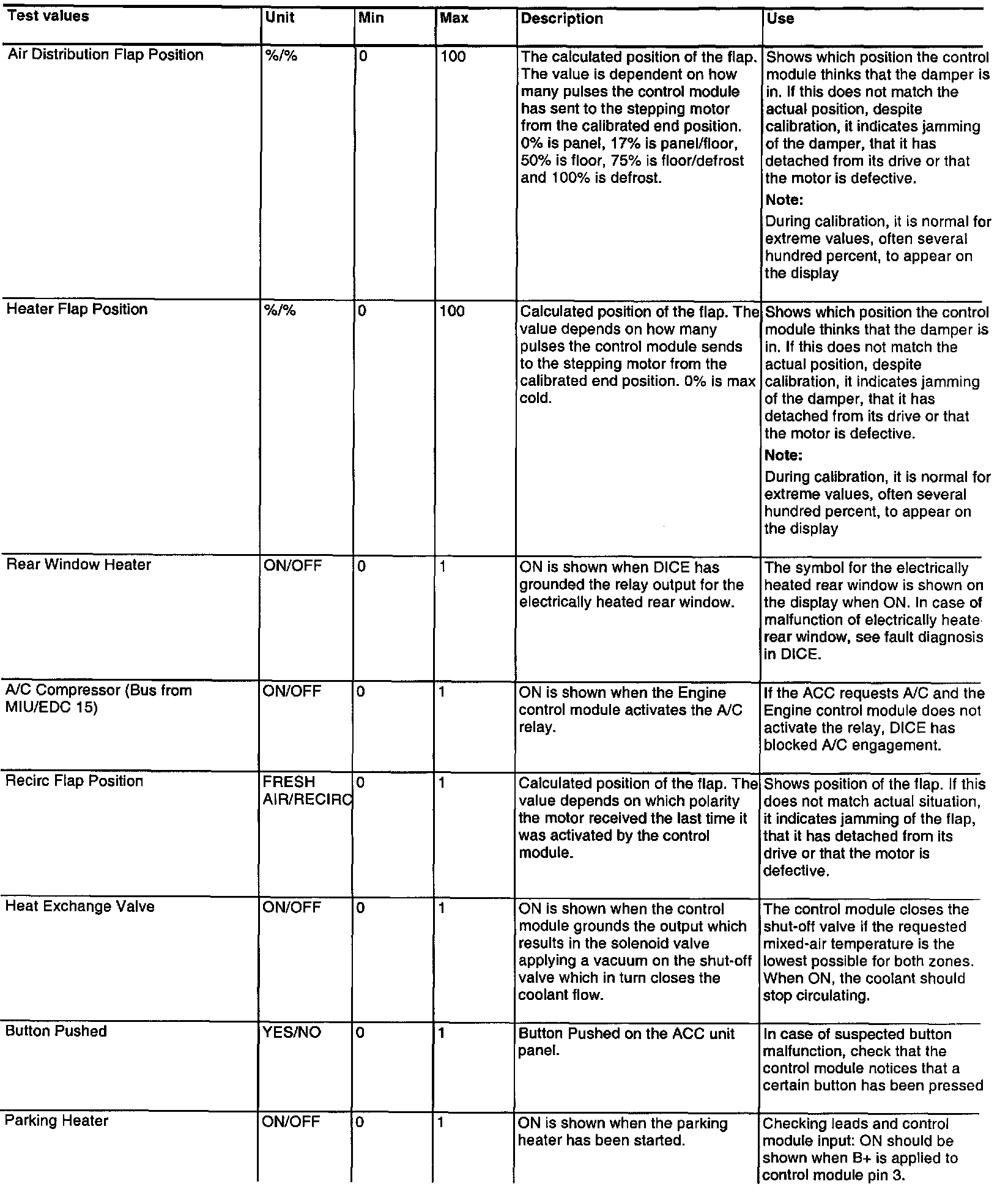

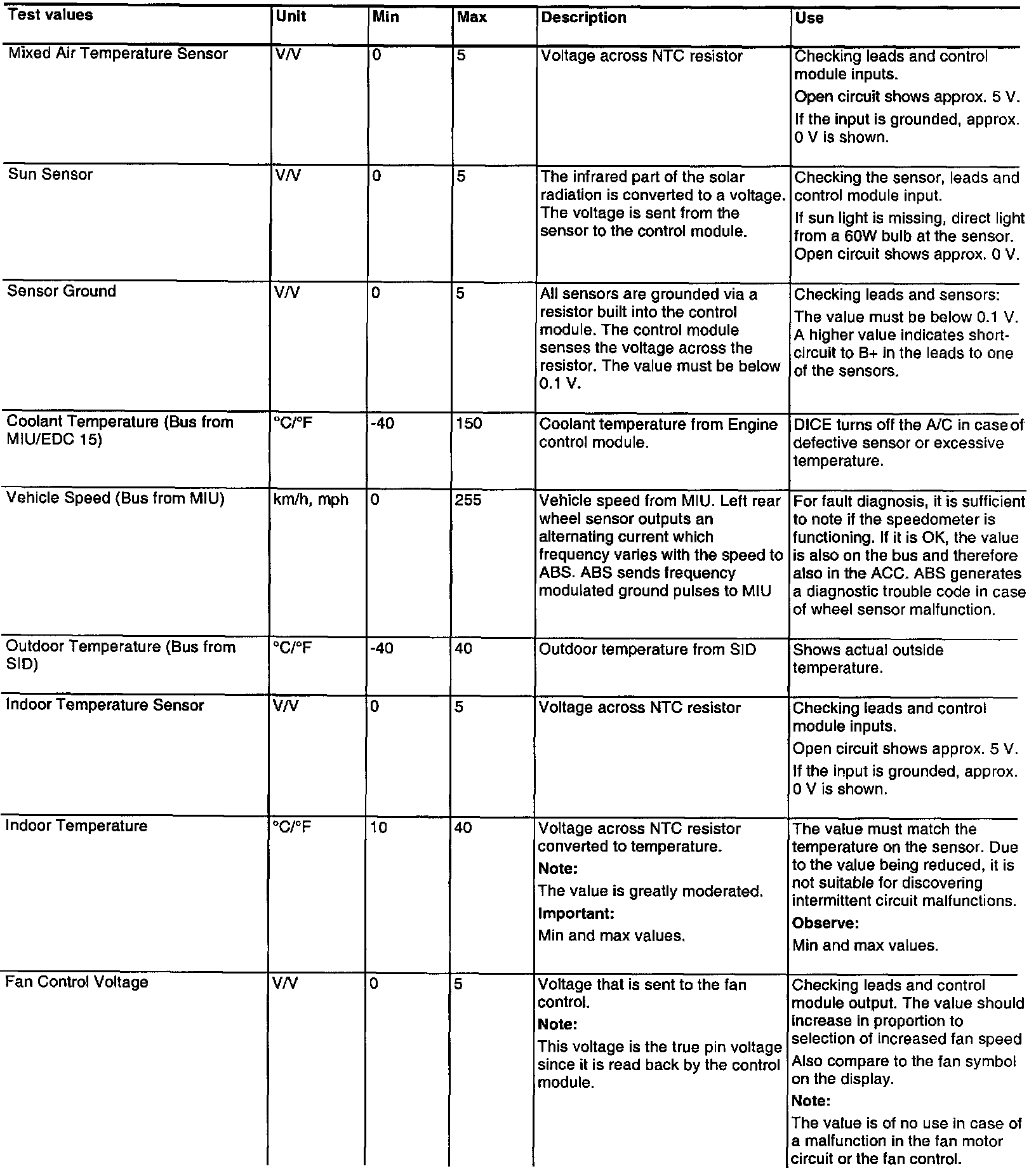

Test Values

Menu "Test Values" (Part 1 Of 3):

Menu "Test Values" (Part 2 Of 3):

Menu "Test Values" (Part 3 Of 3):

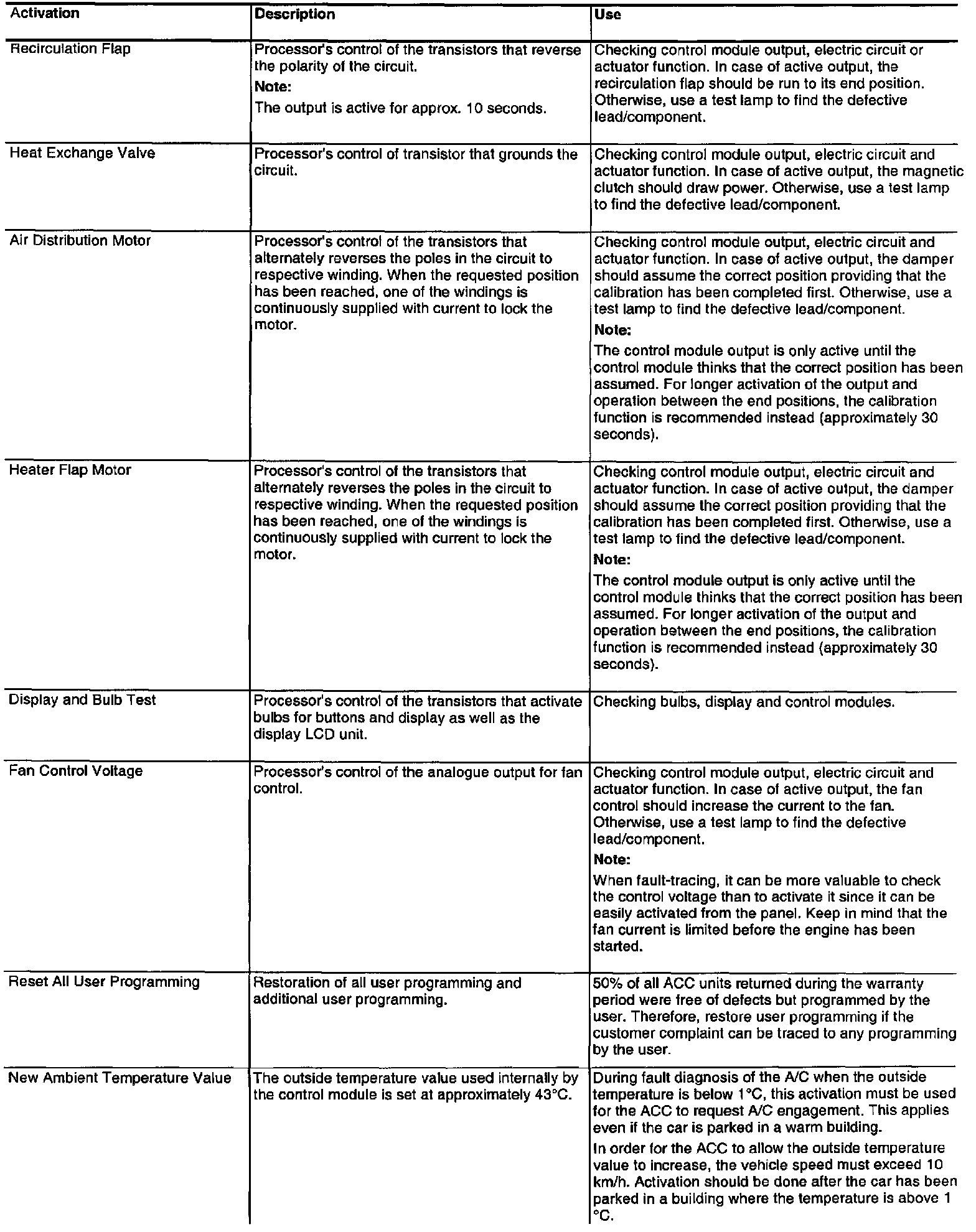

Activations

Menu "Activations":

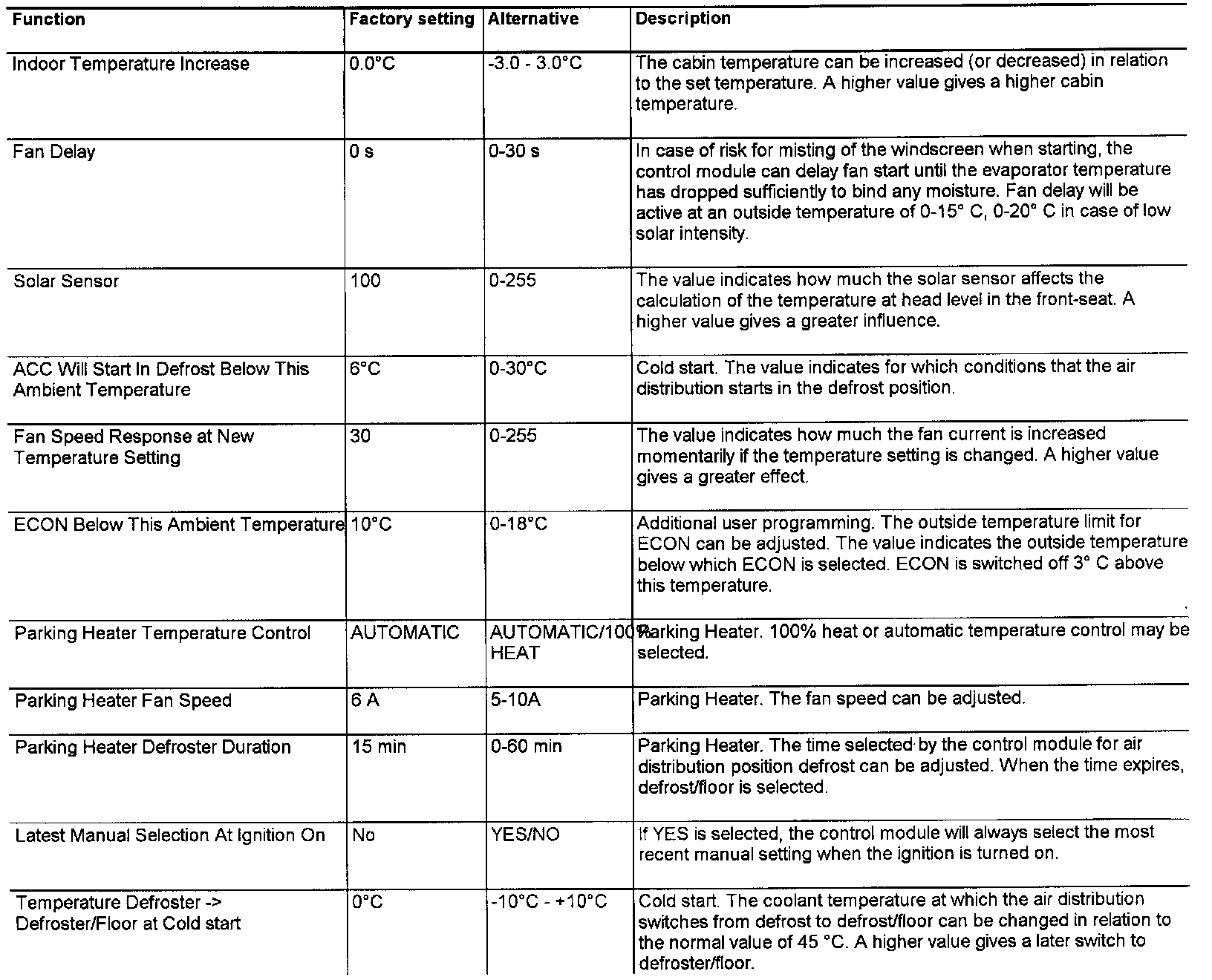

Adjustments

Menu "Adjustments":

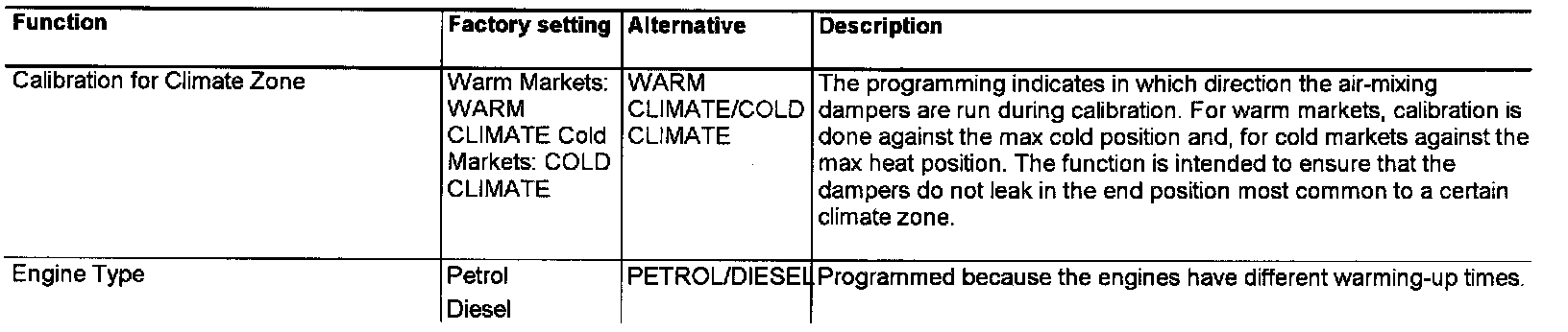

Programming

Menu "Programming":

Menu "System information"

Text Function
Part Number Shows SAAB's 7-digit part number for the control module
Hardware Version Number: Shows the supplier's 10-digit part number for the software
Software Version Number: Shows the supplier's 10-digit part number for the hardware (control module)
