Ground Locations
>>
Grounding Point G33P
Grounding Point G33P

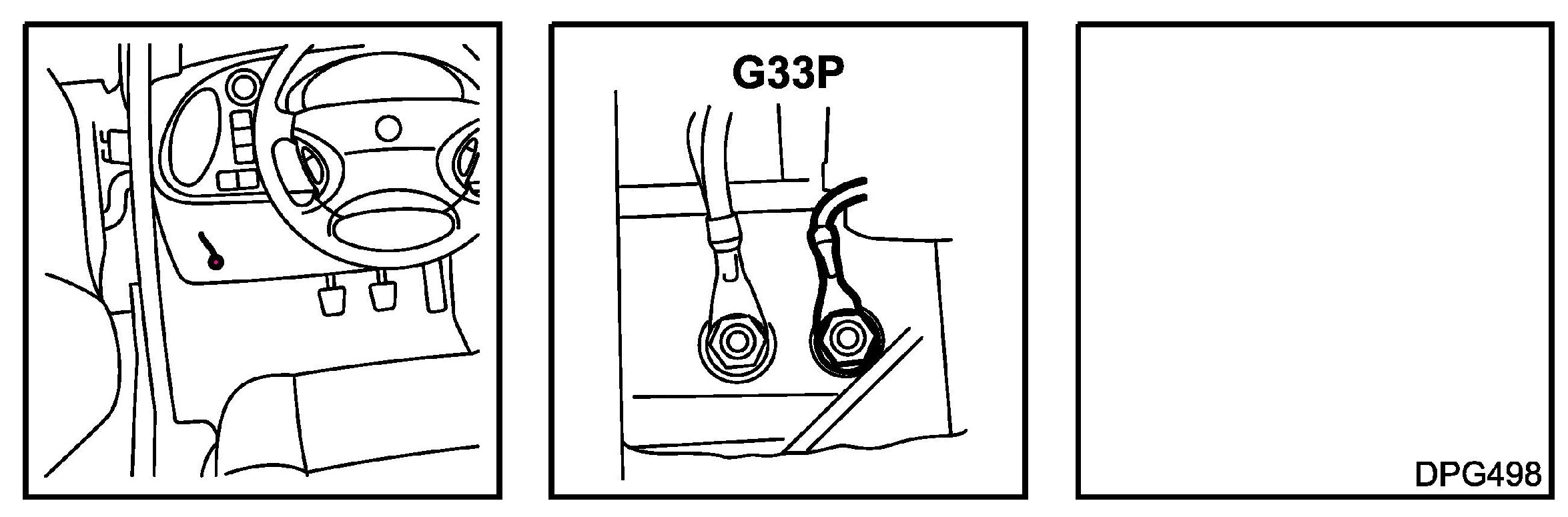

Location:
in cabin below left A-pillar.

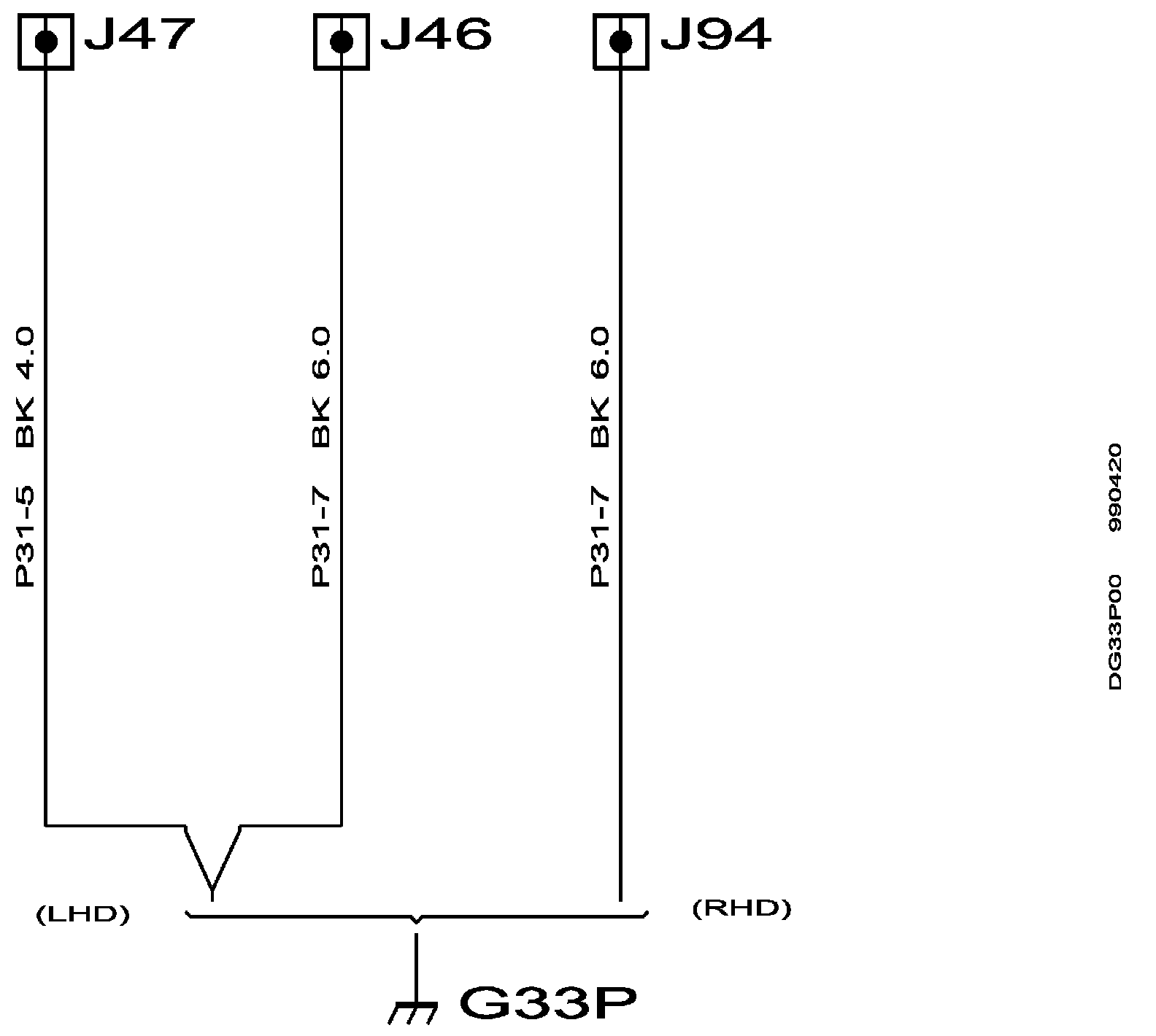

Grounding Point G33P:

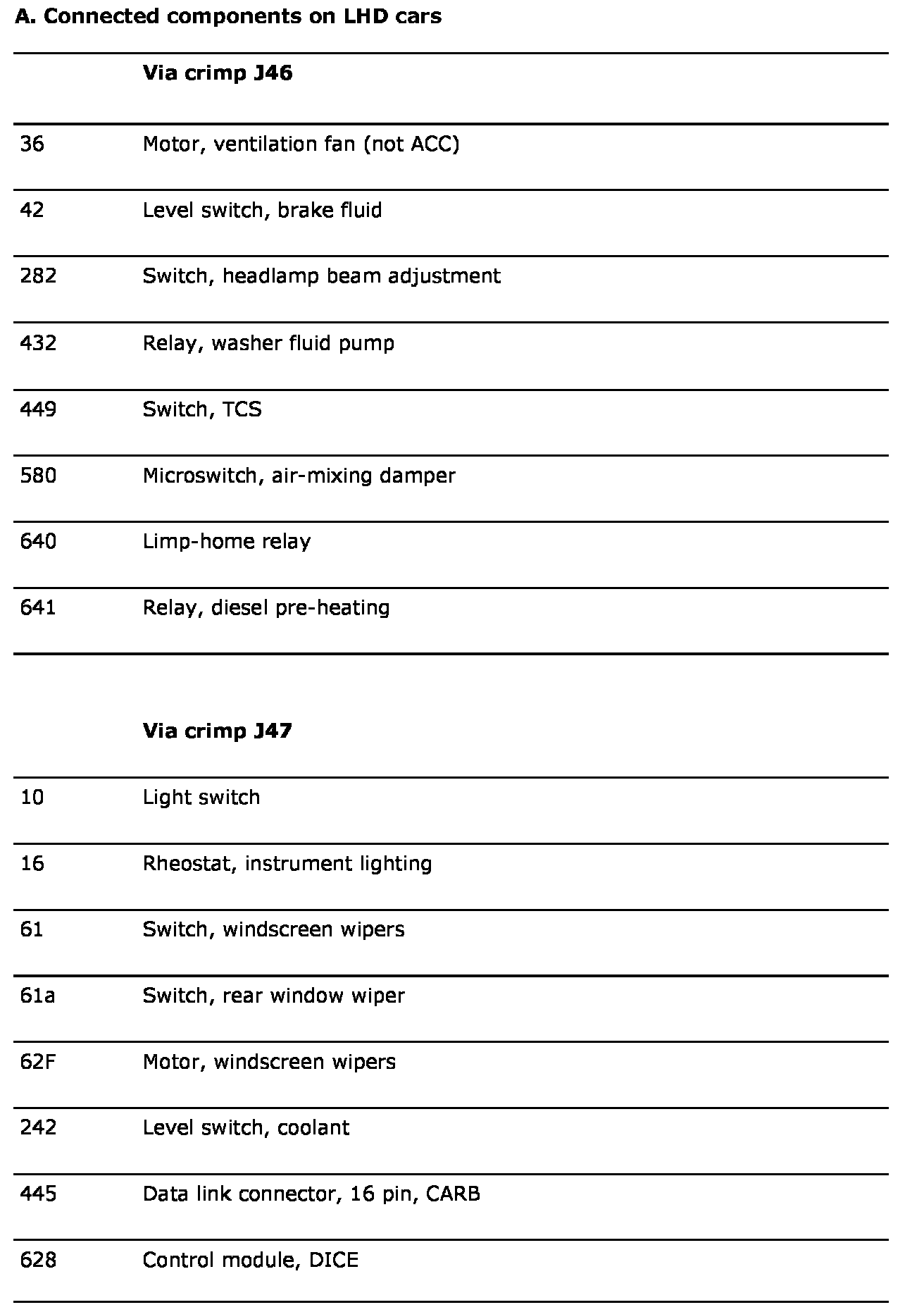

Connected Components (Part 1):

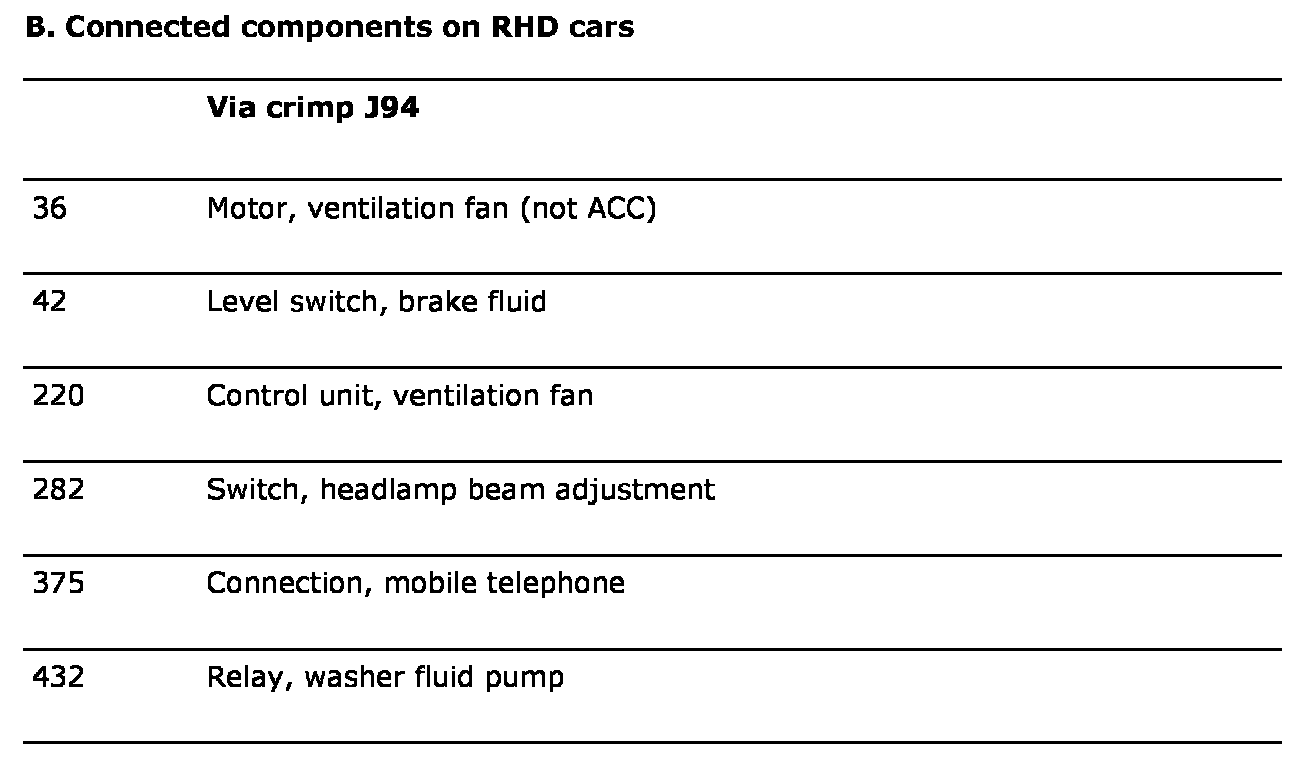

Connected Components (Part 2):
