Fan Control, ACC

Removing

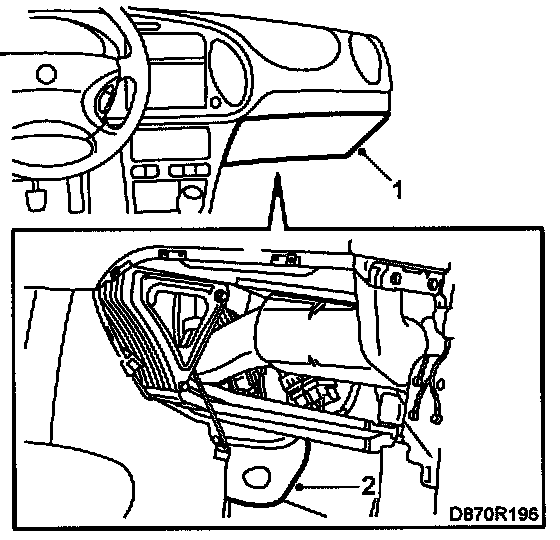

1 Remove the glove box.
2 Remove the protective cover.

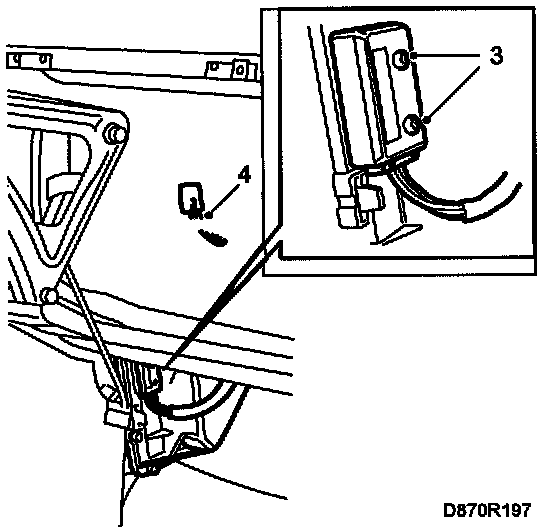

3 Remove both retaining bolts from the fan control.







4 Unplug the connector.

Fitting

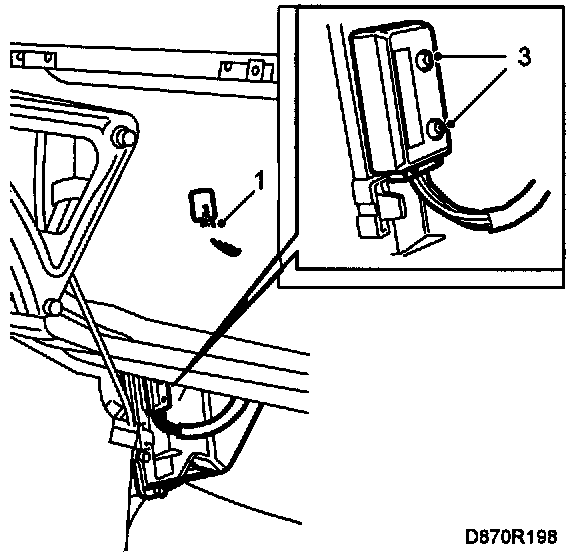

1 Plug in the connector.
2 Wipe old silicon paste off the evaporator's mounting surface.

Coat a thin layer of silicon paste, part No. 30 07 895, on the fan control's contact surface against the evaporator. This is important to ensure proper functioning and normal service life.


IMPORTANT
The aluminium spacer supplied with the fan control must not be used.


3 Fit the fan control in place, checking that its two sleeves enter the holes in the evaporator's mounting surface.
Screw the fan control in place.

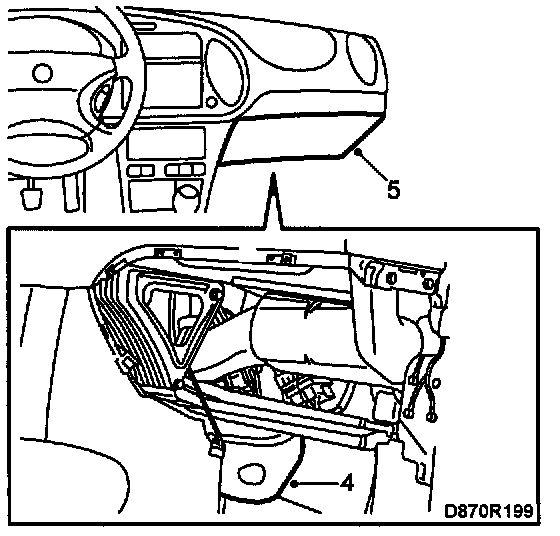

4 Refit the protective cover.







5 Refit the glove box.
6 Calibrate the ACC-system by simultaneously pressing the buttons "AUTO" and "OFF".


IMPORTANT
When calibrating, all previous diagnostic trouble codes are erased. Obtain readouts of the stored diagnostic trouble codes before calibrating.
