Blower Motor: Service and Repair

Removing

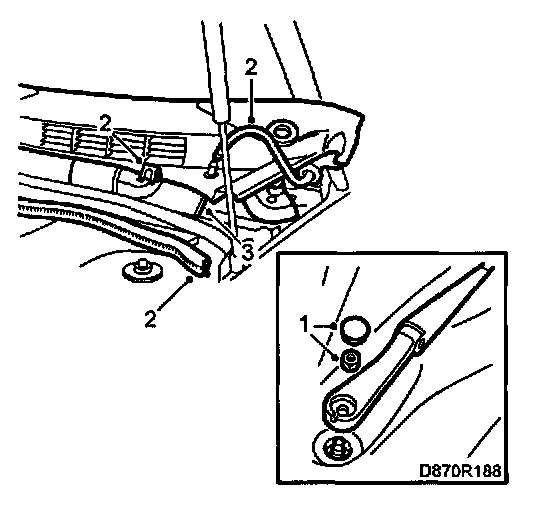

1 Remove the wiper arms.
2 Remove the cover over the bulkhead.
3 Remove the water deflector.

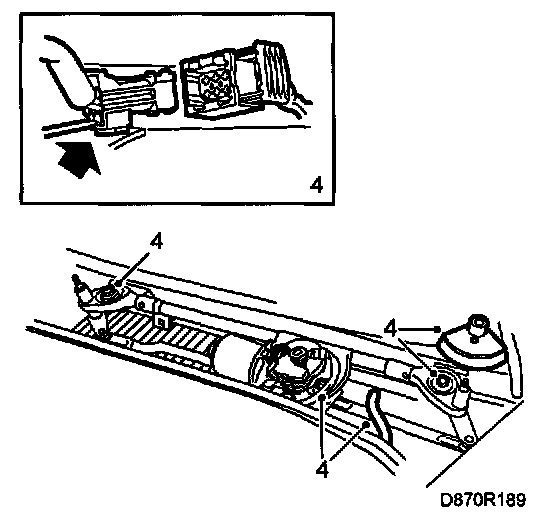

4 Remove the wiper unit.

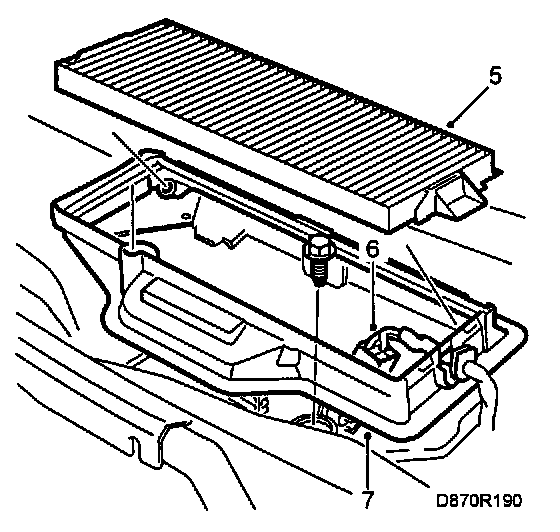

5 Remove the fresh-air filter.







6 Unplug the ventilation tan electric connector.
7 Remove the four retaining bolts for the fresh-air filter frame, remove the frame.

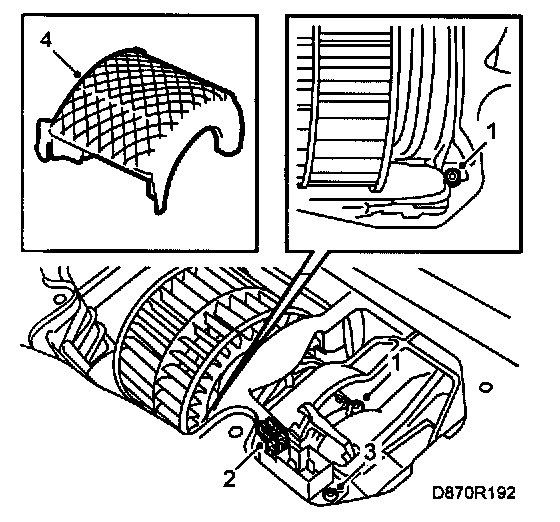

8 Remove the cover over the ventilation fan.







9 Remove the bolt that secures the electric connector.
10 Remove the cables from the electric connector.
11 Remove the bolts and lift up the ventilation fan.


NOTE: Be careful so that the bolts do not fall into the climate control unit.


Fitting







1 Fit the ventilation fan and tighten the bolts.


NOTE: Be careful so that the bolts do not fall into the climate control unit.


2 Connect the cables to the electric connector.
3 Fit the electric connector and tighten the bolt.
4 Fit the cover over the ventilation fan.
5 Refit the ventilation filter frame and tighten the four retaining bolt.







6 Plug in the ventilation fan connector.

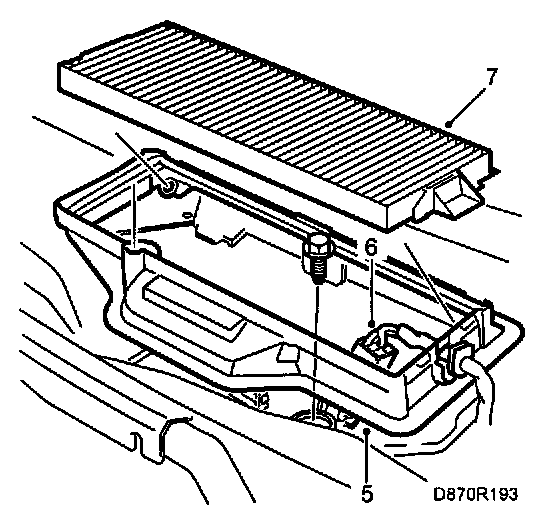

7 Fit the ventilation filter.

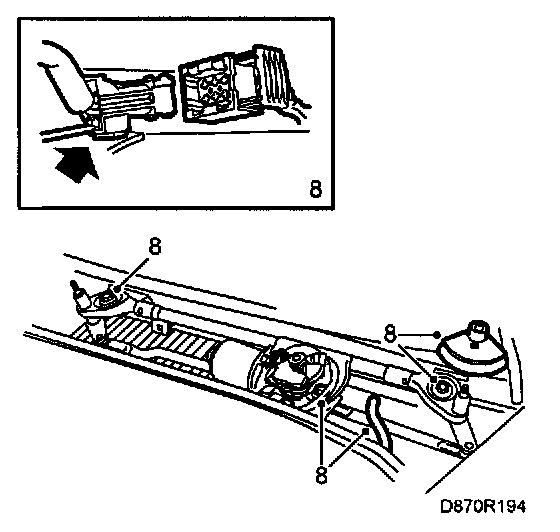

8 Refit the wiper unit.







9 Refit the water deflector.

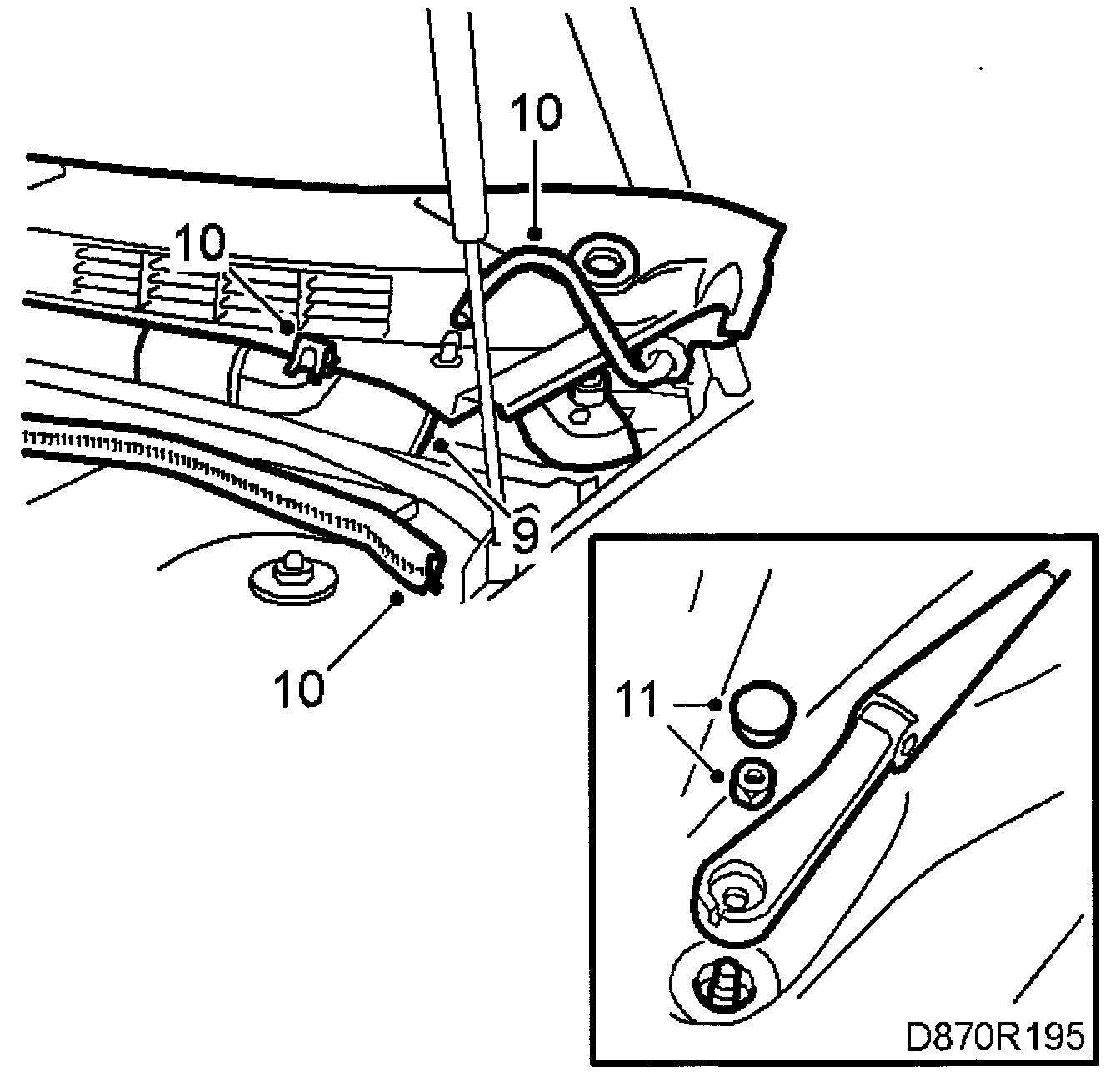

10 Refit the cover over the bulkhead
11 Refit the wiper arms.
