Stepping Motor, Air-Mixing Damper, ACC

Removing

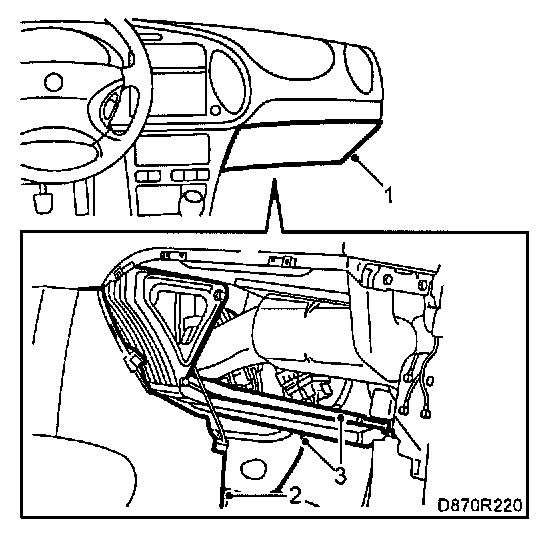

1 Remove the glove box.
2 Remove the side panel from the centre console.
3 Remove the floor air duct.

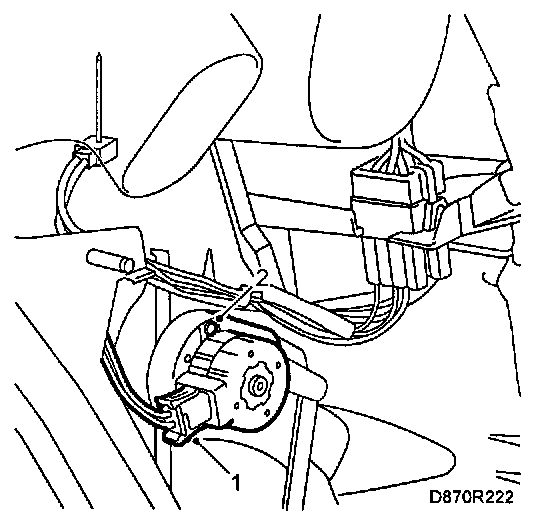

4 Remove both retaining bolts from the stepping motor.







5 Unplug the connector.

Fitting







1 Plug in the connector.

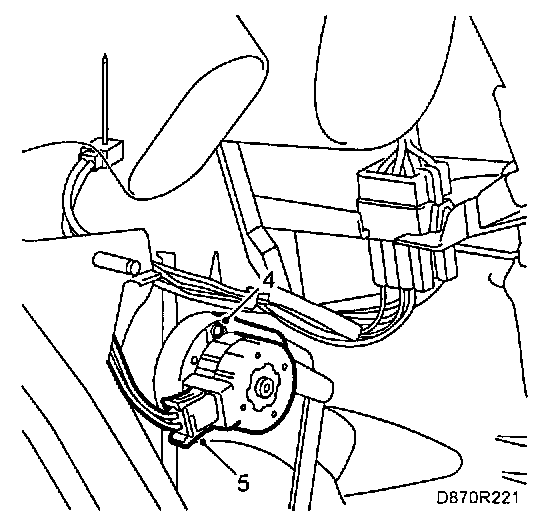

2 Fit the stepping motor and tighten both retaining bolts.
3 Refit the floor air duct.







4 Refit the side panel on the centre console.
5 Refit the glove box.
Calibrate the ACC-system by simultaneously pressing the buttons "AUTO" and "OFF".


IMPORTANT
All previous diagnostic trouble codes are erased when calibrating. Obtain readouts of stored diagnostic trouble codes before calibrating.
