Stepping Motor, Air Distribution Damper, ACC

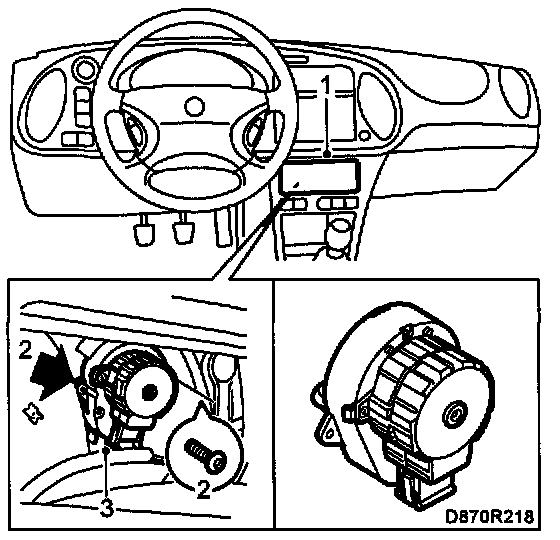

Removing







1 Remove the ACC unit
2 Remove both retaining bolts from the stepping motor.
3 Unplug the connector.

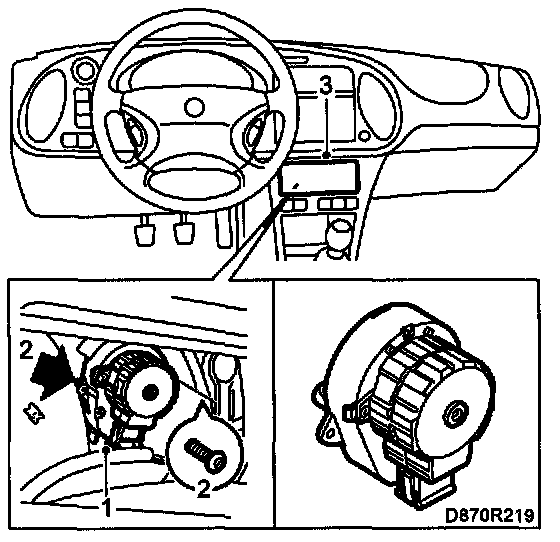

Fitting







1 Plug in the connector.
2 Fit the stepping motor and tighten the retaining bolts.
3 Fit the ACC unit
4 Calibrate the ACC-system by simultaneously pressing the buttons "AUTO" and "OFF".


IMPORTANT
All previous diagnostic trouble codes are erased when calibrating. Obtain readouts of stored diagnostic trouble codes before calibrating.
