Heat Shield: Description and Operation

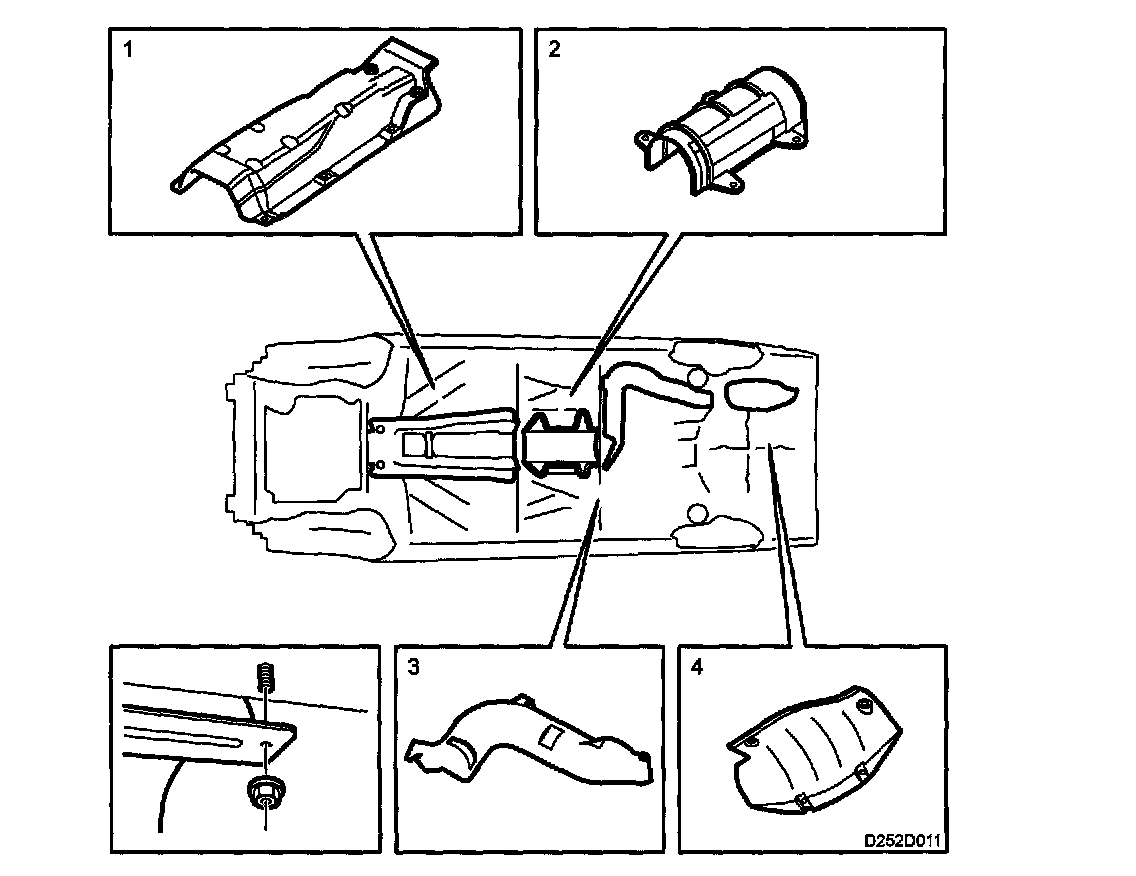

Heat Shields





There are heat shields fitted at points where the heat is most intense. Depending on the position of the shield, these are manufactured from aluminum or zinc plated sheet, and protects the exposed points against heat radiation.
