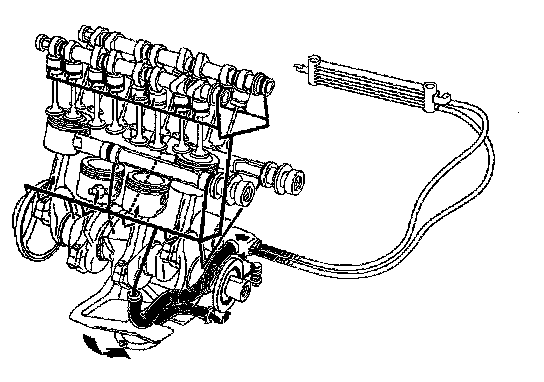

Lubricating System

Lubricating System





General Data

Oil Volume, Including Filter
Without Oil Cooler 5.0 Liters
With Oil Cooler 5.4 Liters
When Servicing 4.0 Liters
Difference in Volume, max-min 1.0 Liter

Important: The recommended grades of oil contain all necessary additives and the use of additional additives should therefore be avoided.

Oil Pressures

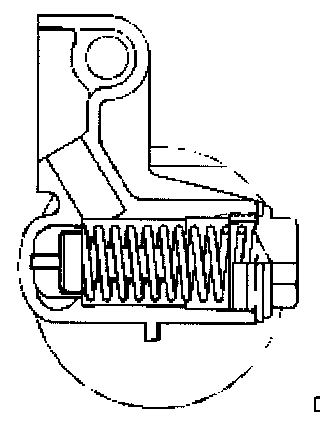

Oil Pump Pressure-Reducing Valve Opens at 3.8 bar
Warning Lamp Comes On When Oil Pressure is Below 0.3-0.55 bar

Oil Pressure at 2000 RPM with 10W/30 Motor Oil
B204* 2.7 bar
B235** 2.5
*Engine at 80°C/176°F
**Engine at 105 ±2°C/221±4°F

End Float Between Oil Pump Rotor and Housing 0.03-0.08 mm
Engine Oil Cooler Thermostat Opens at 105±2°C (221±35.6°F)
